AZ697-1C-12DA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ697-1C-12DA

AZ697-1C-12DA: DescriptionElectromechanical Relay, SPDT, Latched, 22.8VDC (Coil), 10A (Contact), 150VDC (Contact), Random, AC/DC Output,; CategoryMechanical and electronic products relay; File Size311KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric View All

AZ697-1C-12DA Overview

Electromechanical Relay, SPDT, Latched, 22.8VDC (Coil), 10A (Contact), 150VDC (Contact), Random, AC/DC Output,

AZ697-1C-12DA Parametric

Parameter Name	Attribute value
Maker	AZETTLER
Reach Compliance Code	compliant
body width	13 mm
body height	25.9 mm
Body length or diameter	29 mm
Coil operating voltage (DC)	8.4 V
Coil resistance	275 Ω
Maximum coil voltage (DC)	22.8 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2770VA@380VAC
Contact (AC) maximum rated R load	10A@380VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated power R load	300W@150VDC
Contact (DC) maximum rated R load	10A@150VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	380 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	5
operating hours	8 ms
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	29mm x 13mm x 25.9mm
Guideline	TUV; UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
release time	5 ms
Terminal length	0.0042 inch
Termination type	SOLDER
weight	18 g

Preview

Download Datasheet

View All

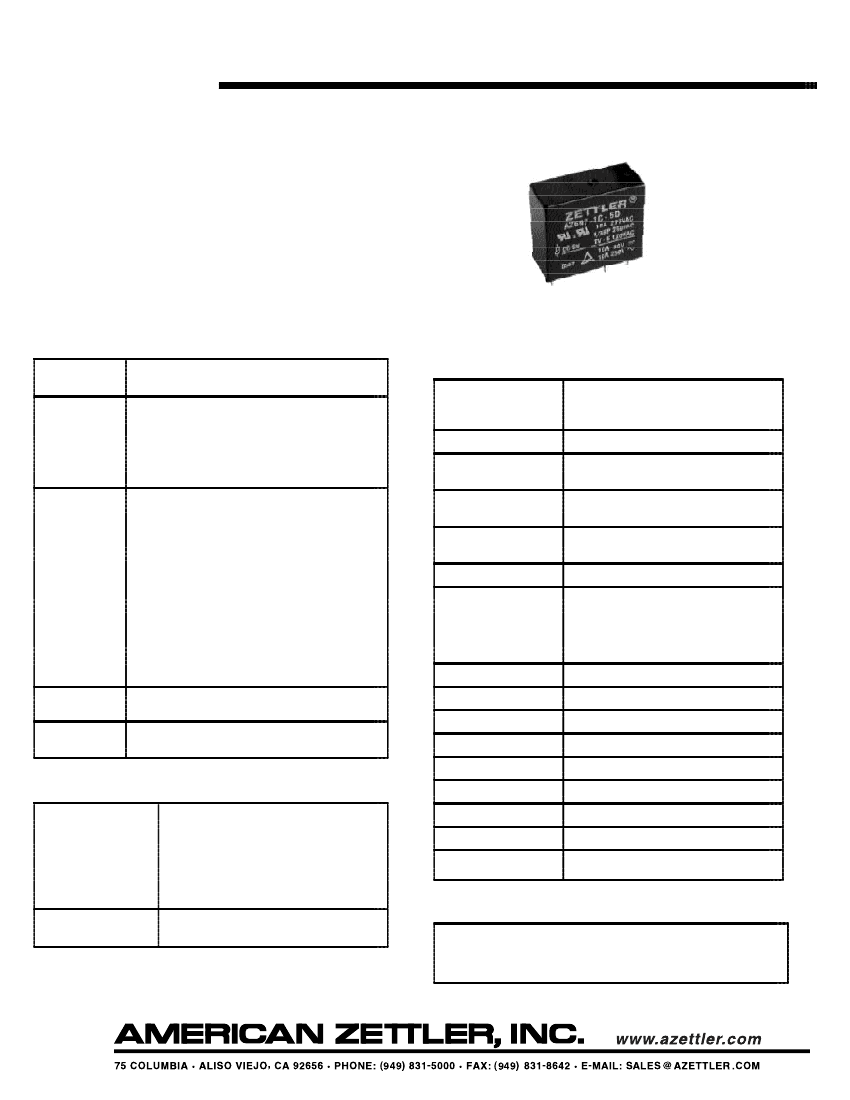

AZ697

10 AMP MINIATURE

POWER RELAY

FEATURES

•

Dielectric strength 5000 Vrms

Low cost

Epoxy sealed version available

10 Amp switching — single pole contacts

UL TV-5

Isolation spacing greater than 8mm

UL Class B insulation system, Class F available

UL, CUR file E44211; TÜV file R50129288

CONTACTS

Arrangement

Ratings

SPST (1 Form A)

SPDT (1 Form C)

Resistive load:

Max. switched power: 300 W or 2770 VA

Max. switched current: 10 A

Max. switched voltage: 150* VDC or 380 VAC

Note: If switching voltage is greater than 30 VDC, special

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 10 A 240 VAC Res.

8 ms at nominal coil voltage

5 ms at nominal coil voltage

(with no coil suppression)

precautions must be taken. Please contact the factory.

Rated Load

UL, CUR

TV-5 at 120 VAC [1][2][3]

10 A at 277 VAC, General Use [1]

10 A 30 VDC, Resistive [1]

HP at 250 VAC [1]

HP at 125 VAC N.O. [1]

10 A at 277 VAC, General Use, 100k cycles [2][3]

10 A at 30 VDC, Resistive, 100k cycles [2][3]

1/3 HP at 250 VAC, 100k cycles [2][3]

1/4 HP at 125 VAC, 100k cycles [2][3]

10 A at 250 VAC, 30 VDC Resistive 100k cycles

[1][2]

10 A at 250 VAC, 30 VDC Resistive 50k cycles [3]

Silver cadmium oxide [1], silver nickel [2], silver tin

oxide [3], Gold plating available

< 50 milliohms initially

(24 V, 1 A voltage drop method)

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms between open contacts

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

1000 megohms min. at 20°C, 500 VDC

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 90°C (194°F) Class B

-40°C (-40°F) to 110°C (230°F) Class F

-40°C (-40°F) to 130°C (266°F) Class B

-40°C (-40°F) to 155°C (311°F) Class F

0.062" DA at 10–55 Hz

10 g

P.B.T. polyester

Tinned copper alloy, P. C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

18 grams

TÜV

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

257 mW

1.9 W at 20°C (68°F) ambient (Class B)

2.5 W at 20°C (68°F) ambient (Class F)

34° C (61°F) at nominal voltage

Max. 130°C (266°F) Class B

Max. 155° C (311° F) Class F

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

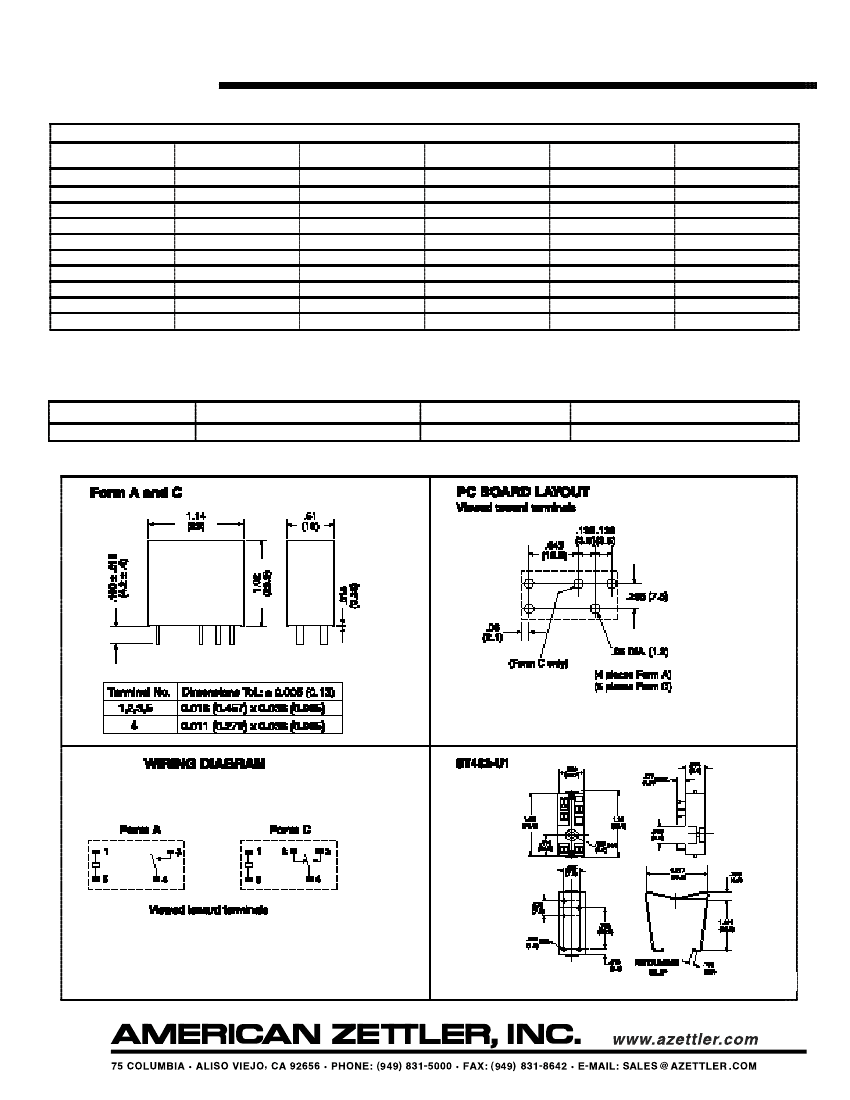

1/15/13
