89361-708 datasheet, PDF - EEWORLD Datasheet

89361-708: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Latch, Black Insulator, Receptacle; CategoryThe connector The connector; File Size98KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89361-708 Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Latch, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, LATCHED
body width	0.189 inch
subject depth	0.295 inch
body length	0.496 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (8) OVER NICKEL
Contact completed and terminated	GOLD (8) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	89361
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	8u inch
polarization key	GUIDE SLOT(S)
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.1946 N

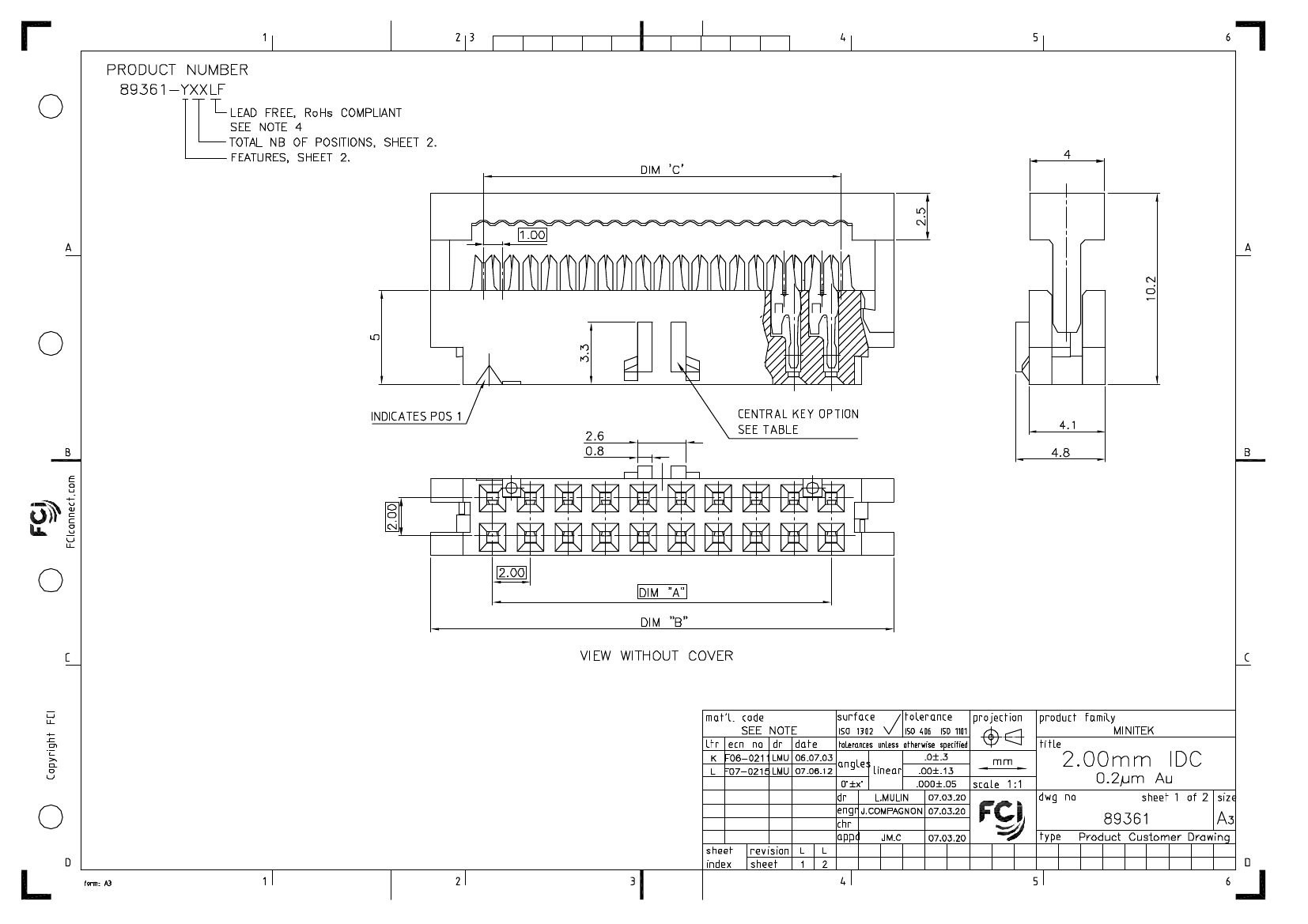

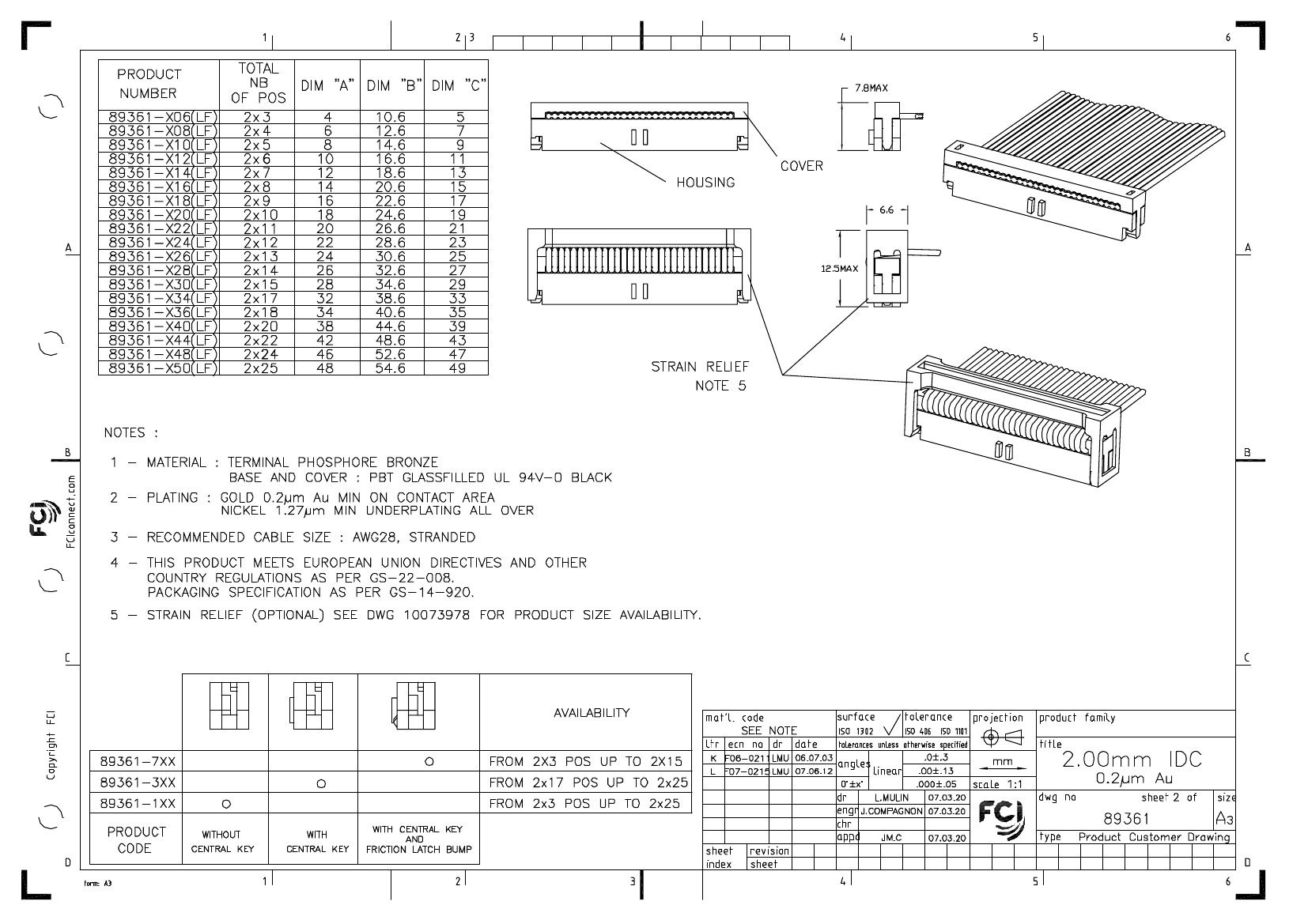

R:\Dcu\Public\Engineering\Product\CDC\F07-0215\89361c01.dwg

PDM: Rev:L

STATUS:

Released

Printed: Sep 26, 2007
