845-C064T-BGA00 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 845-C064T-BGA00

845-C064T-BGA00: DescriptionBoard Connector, 64 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

845-C064T-BGA00 Overview

Board Connector, 64 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator

845-C064T-BGA00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.445 inch
subject depth	0.274 inch
body length	1.786 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Match contact row spacing	0.075 inch
Installation type	CABLE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Plating thickness	12u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	64
Maximum wire diameter	30 AWG
Minimum wire diameter	30 AWG

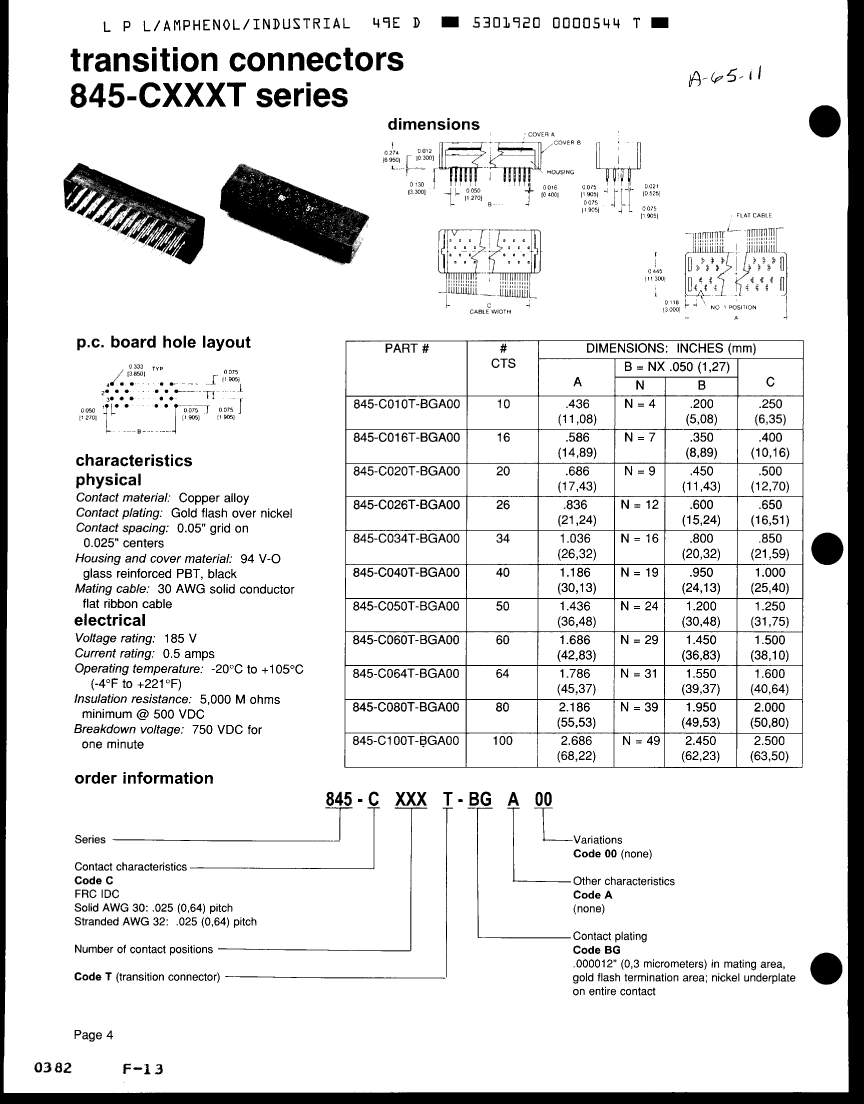

845-C064T-BGA00 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

845-C064T-BGA00 Related Products

	845-C064T-BGA00	845-C100T-BGA00	845-C034T-BGA00	845-C060T-BGA00	845-C026T-BGA00	845-C010T-BGA00	845-C040T-BGA00	845-C080T-BGA00
Description	Board Connector, 64 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 100 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 34 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 60 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 26 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 10 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 40 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator	Board Connector, 80 Contact(s), 4 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch
subject depth	0.274 inch	0.274 inch	0.274 inch	0.274 inch	0.274 inch	0.274 inch	0.274 inch	0.274 inch
body length	1.786 inch	2.686 inch	1.036 inch	1.686 inch	0.836 inch	0.436 inch	1.186 inch	2.186 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	4	4	4	4	4	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	64	100	34	60	26	10	40	80
Maximum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol	Amphenol
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
