845-C034S-ALA00 datasheet, PDF

Datasheet> All Categories > 845-C034S-ALA00

845-C034S-ALA00: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Black Insulator, Plug; File Size111KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

845-C034S-ALA00 Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Black Insulator, Plug

845-C034S-ALA00 Parametric

Parameter Name	Attribute value
Objectid	300268639
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.236 inch
subject depth	0.61 inch
body length	1.036 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	0.5 A
Guideline	UL
Total number of contacts	34
Maximum wire diameter	30 AWG
Minimum wire diameter	30 AWG

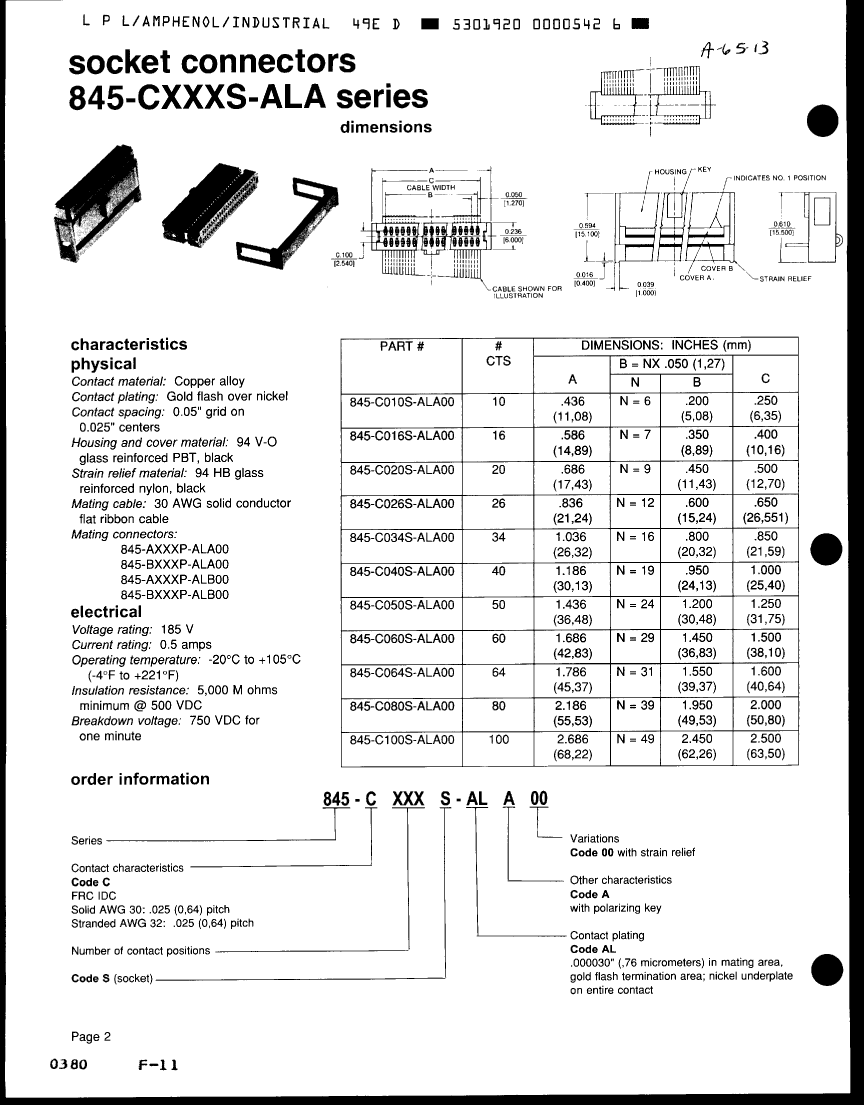

845-C034S-ALA00 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

845-C034S-ALA00 Related Products

	845-C034S-ALA00	845-C050S-ALA00	845-C026S-ALA00	845-C060S-ALA00	845-C010S-ALA00
Description	Board Connector, 34 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Black Insulator, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Black Insulator, Plug	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Black Insulator, Plug	Board Connector	Board Connector, 10 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Black Insulator, Plug
Objectid	300268639	300268641	300268638	1350421276	300268635
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Other features	NONE	NONE	NONE	-	NONE
body width	0.236 inch	0.236 inch	0.236 inch	-	0.236 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	-	0.61 inch
body length	1.036 inch	1.436 inch	0.836 inch	-	0.436 inch
Body/casing type	PLUG	PLUG	PLUG	-	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	-	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	-	500VDC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	-	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	-	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Number of rows loaded	2	2	2	-	2
Maximum operating temperature	105 °C	105 °C	105 °C	-	105 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-	-20 °C
Plating thickness	30u inch	30u inch	30u inch	-	30u inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	-	POLAR PIN POSITION
Rated current (signal)	0.5 A	0.5 A	0.5 A	-	0.5 A
Guideline	UL	UL	UL	-	UL
Total number of contacts	34	50	26	-	10
Maximum wire diameter	30 AWG	30 AWG	30 AWG	-	30 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	-	30 AWG
Manufacturer's serial number	-	845	845	845	-
