83-58DCP-2: DescriptionRF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size315KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

83-58DCP-2 Overview

RF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug

83-58DCP-2 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG-58/U; RG-141/U
Body/casing type	PLUG
Connector type	RF UHF CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TFE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	UHF
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP

Preview

Download Datasheet

View All

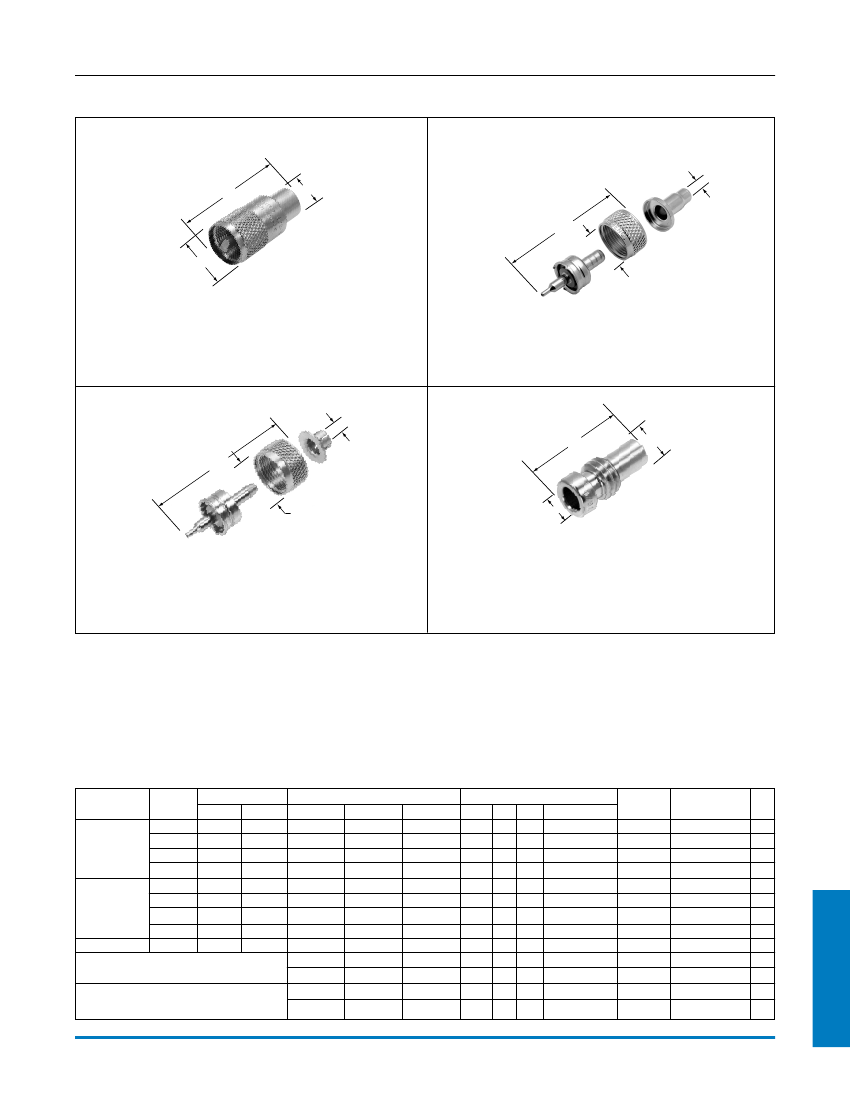

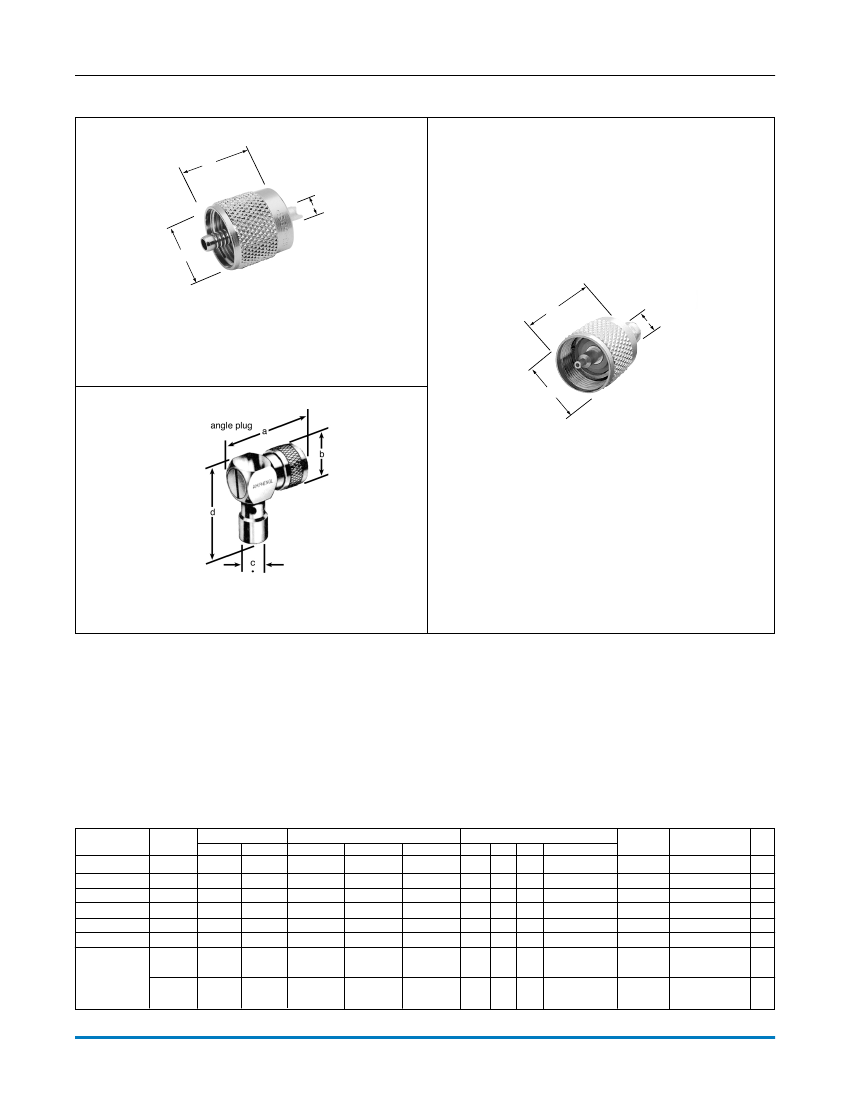

UHF

Plugs, Reducing Adapters

Fig. 1

Fig. 2

Amphenol

®

a

c•

a

s

UHF

b

UHF Solder Type Plugs

83-1SP

83-1SP-1050

83-1SP-15RFX

83-822

Fig. 3

c•

UHF Crimp Type Plugs

83-58DCP-2

83-58DCP-2RFX

Fig. 4

a

b

a

s

b

c•

UHF FCP Plugs

83-58FCP

83-58FCP-RFX

UHF Reducing Adapters

83-185

83-185-RFX

83-168

83-168-RFX

UHF CABLE PLUGS, REDUCING ADAPTERS

Cable

RG-/U

8, 9, 11, 13,

63, 87A, 149,

213, 214,

216, 225

Conn

Type

Plug

58, 141

Plug

59, 62,140,210

Plug

Cable Attachment Dimensions, inches (millimeters)

Outer

Inner

a

b

c

q

Solder

1.50(38.0)

.750(19.0)

.444(11.3)

Solder

1.50(38.0)

.750(19.0)

.444(11.3)

Solder

Crimp

Solder

FCP

Solder

Crimp

Pliers

Solder

1.50(38.0)

1.38(35.1)

.750(19.0)

.716(18.2)

.420(10.7)

.444(11.3)

.245(6.2)

.212(5.4)

.195(4.9)

.224(5.7)

.257(6.6)

.209(5.3)

.257(6.5)

Construction Notes

Plt. Ins.

Other

C1, C2

P4

D3

—

D30 IBM 460147

C1, C2

P1

CAI

C1, C2

P1

C1, C2

P1

Military

Number

PL-259

—

PL-259

—

Amphenol

Number

83-1SP

83-1SP-1050

83-1SP-15RFX

83-822

83-58DCP-2

83-58DCP-2RFX

83-58FCP

❑

83-58FCP-RFX

Fig.

1

2

3

1

4

v

D24

D1

D2

D24

D2

D30

—

TFE Insulation

1.41(35.7)

s

.750(19.0)

1.06(27.0)

s

.750(19.0)

1.16(29.4)

s

.716(18.2)

1.68(42.9)

1.00(25.4)

.781(19.8)

.437(11.1)

1.00(25.4) .438(11.1)

C5

C6

C2

P2

P1

P2

P7

P1

P3

UHF

No Soldering

—

D24 No Soldering

UG-111/U

83-750

UG-175/U

83-185

—

83-185-RFX

83-168-RFX

UG-176/U

83-168

Reducing Adapter

For use on RG-55, 58,141,142 Cable (Except 55A)

Reducing Adapter

For use on RG-59, 62, 71, 140, 210 Cable

• accommodates cable diameter

v

distributor stocked

s

includes outer ferrule

❑

US patent 4,053,200

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

187

83-58DCP-2 Related Products

	83-58DCP-2	83-58SCP-RFX	PL-259	UG-175/U
Description	RF UHF Connector, Male, Cable Mount, Crimp Terminal, Plug	RF Connector Adapter, UHF-UHF, Cable Mount, Male	RF UHF Connector, Male, Cable Mount, Solder Terminal, Plug	RF Connector Adapter, UHF-UHF, Cable Mount, Male
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	APPLICABLE CABLES: RG-58/U; RG-141/U	APPLICABLE CABLE: RG-58/U	APPLICABLE CABLES: RG-8/U; RG-9/U; RG-11/U; RG-13/U; RG-63/U; RG-149/U; RG-214/U; RG-225/U	APPLICABLE CABLES: RG-55/U; RG-58/U; RG-141/U; RG-142/U
Connector type	RF UHF CONNECTOR	RF CONNECTOR ADAPTER	RF UHF CONNECTOR	RF CONNECTOR ADAPTER
Contact to complete cooperation	SILVER	NOT SPECIFIED	SILVER	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	YES	YES
Manufacturer's serial number	UHF	UHF	UHF	UHF
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	0.3 GHz	0.3 GHz	0.3 GHz	0.3 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
