FN406-0.5-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FN406-0.5-02

FN406-0.5-02: Description250 V, 50/60 HZ, SINGLE PHASE EMI FILTER; CategoryAnalog mixed-signal IC filter; File Size418KB，4 Pages; ManufacturerSchaffner; Environmental Compliance

Download Datasheet Parametric View All

FN406-0.5-02 Overview

250 V, 50/60 HZ, SINGLE PHASE EMI FILTER

FN406-0.5-02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Schaffner
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compli
Other features	INDUCTANCE 24 MILLIHENRY
Certification	UL; CSA; ENEC-14
filter type	SINGLE PHASE EMI FILTER
high	28 mm
high potential	2000 V
Maximum leakage current	0.373 mA
length	45 mm
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L45.0XB15.0XH28.0 (mm)/L1.772XB0.591XH1.102 (inch)
Rated current	0.5 A
Rated voltage	250 V
width	15 mm

Preview

Download Datasheet

View All

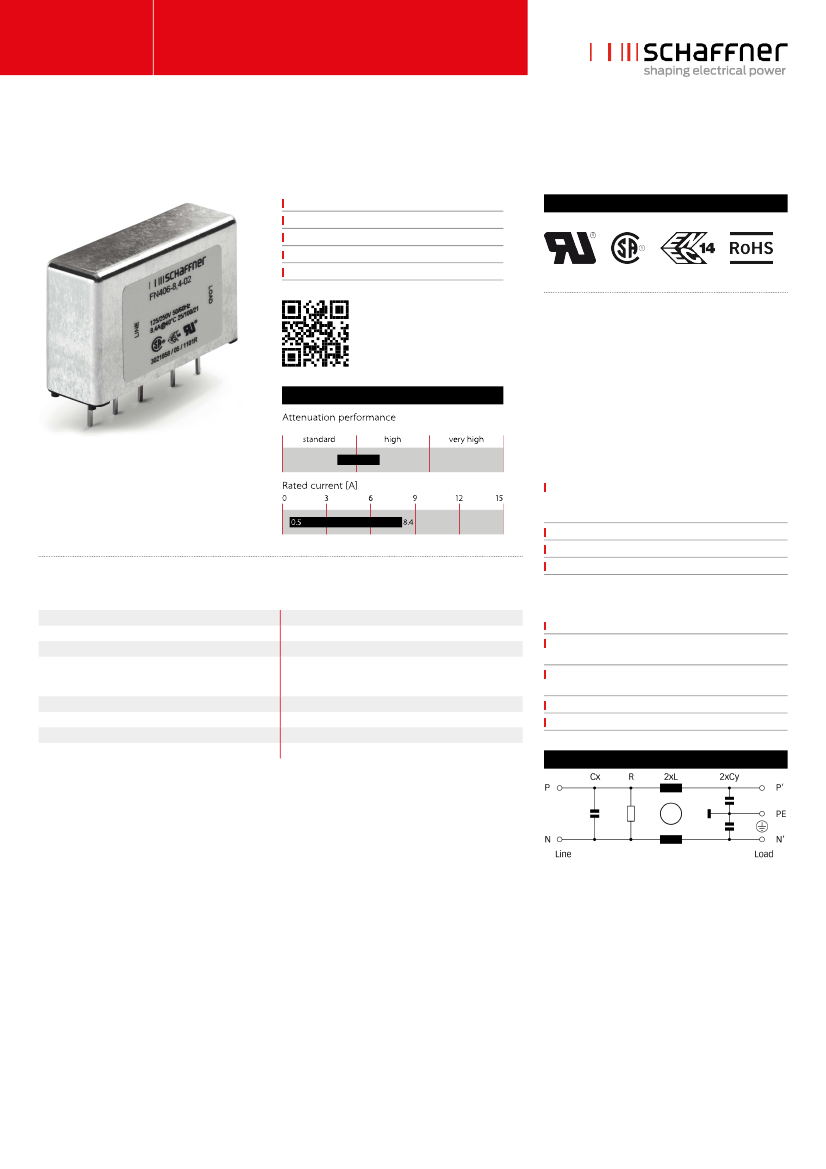

DATASHEET

PCB Filters FN 406

Ultra Compact EMC Filter

Rated currents from 0.5 to 8.4 A

Aluminium case

Very compact PCB-mountable design

Low profile

Optional medical versions (B type)

Approvals

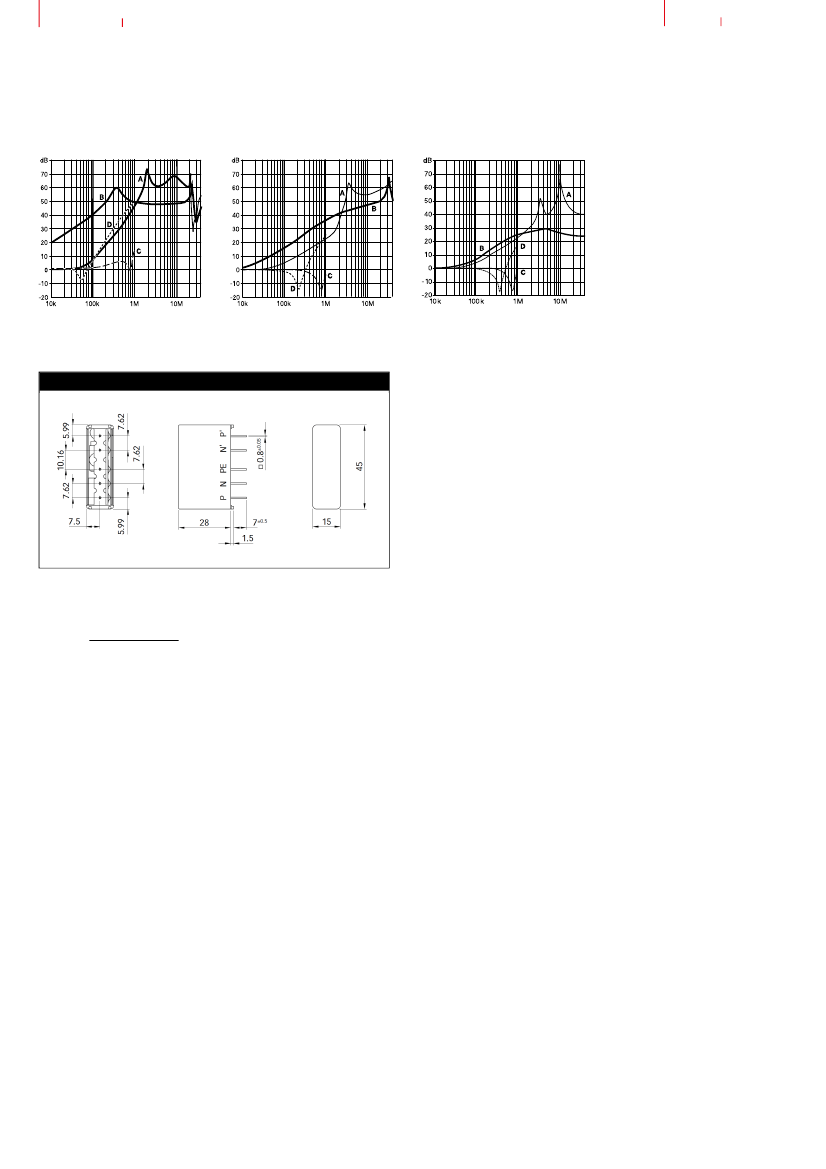

Performance indicators

The FN 406 PCB filter is a single-phase filter designed

for easy, fast and compact PCB- mounting. Choosing

the FN 406 product line brings you the rapid

availability of a standard filter associated with the

necessary safety acceptance. Standard PCB single-

phase filters are a practical solution helping you to

pass EMI system approval in a short time. A selection

on amperage ratings and medical types are designed

to offer you the desired standard product.

Features and benefits

Good conducted attenuation performance, based

on chokes with high saturation resistance and

excellent thermal behavior.

PCB through hole mounting.

Low profile.

Custom specific versions on request.

Technical specifications

Typical applications

Maximum continuous operating voltage

Operating frequency

Rated currents

High potential test voltage

250 VAC, 50/60 Hz

DC to 400 Hz

0.5 to 8.4 A @ 40°C max.

P –> PE 2000 VAC for 2 sec (standard types)

P –> N 760 VAC for 2 sec

P –> PE 2500 VAC for 2 sec (B types)

-25°C to +100°C (25/100/21)

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

UL 94 V-0

1,900,000 hours

Electrical and electronic equipment

Small to medium-sized machines and household

equipment

Single-phase power supplies, switch-mode power

supplies

Test and measurement equipment

Medical equipment

Temperature range (operation and storage)

Design corresponding to

Flammability corresponding to

MTBF @ 40°C/230 V (Mil-HB-217F)

Typical electrical schematic
