ROX1SSJ12R0BL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> ROX1SSJ12R0BL

ROX1SSJ12R0BL: DescriptionRESISTOR, METAL OXIDE FILM, 1W, 5%, 300ppm, 12ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size401KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

ROX1SSJ12R0BL Overview

RESISTOR, METAL OXIDE FILM, 1W, 5%, 300ppm, 12ohm, THROUGH HOLE MOUNT, AXIAL LEADED

ROX1SSJ12R0BL Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
package instruction	AXIAL LEADED
Reach Compliance Code	unknown
Other features	FLAME PROOF
JESD-609 code	e2
Manufacturer's serial number	ROX
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	12 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	300 ppm/°C
Terminal surface	TIN COPPER
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	350 V

Preview

Download Datasheet

View All

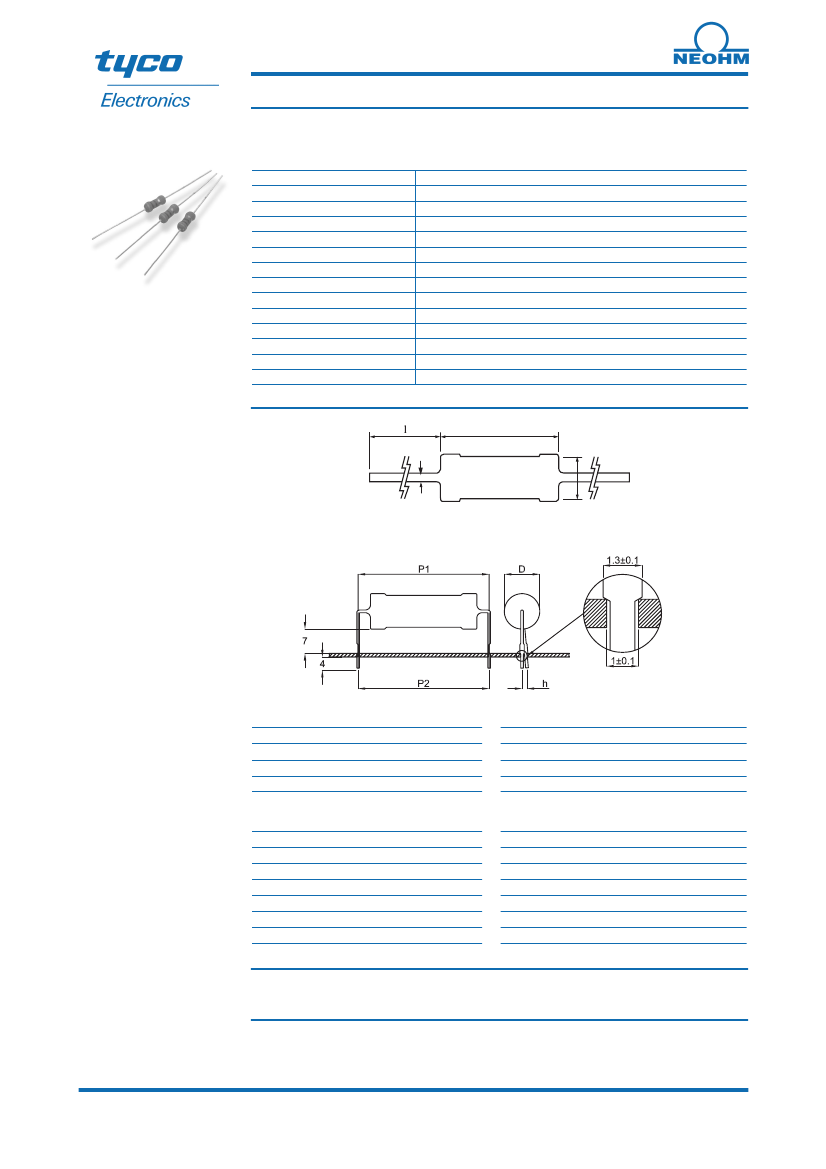

Flame-Proof Power Metal Oxide Film Resistors

Type ROX Series

Characteristics -

Electrical

Rated Power @ 70°C (W):

Resistance Range (ohms) Min:

Max:

Tolerance and Code Letter:

Temperature Coefficient Max (ppm/°C):

Selection Series:

Limiting Element Voltage (V):

Maximum Overload Voltage (V):

Max Intermittent Overload Voltage (V):

Operating Temperature Range (°C):

Climatic Category:

Dielectric Strength (V):

Insulation Resistance (Mohms):

ROXO5

0.5

0.1

330K

ROX1

0.1

470K

ROX2 ROXO5S ROX1SS ROX1S ROX2S

0.5

0.1

560K

100K

200R

270K

470K

2% (G) / 5% (J) 1% (F) available on request

± 300

E24

350

250

350

600

400

600

750

500

750

-55 to +235

55/235/56

350

250

350

1,000

ROX3S ROX5S

0.1

560K

The resistive element comprises a

metal oxide film deposited on a

ceramic former. The element is

protected by a flameproof coating

which

will

withstand

overload

conditions without flame or mechanical

damage. They are recommended for

use in applications such as line

protection etc…

250

400

500

350

600

750

350

600

750

500

800

1500

250

350

500

Dimensions

Key Features

High Power with Small Size

for Space Saving

Excellent Long Term Stability

Complete Flameproof

Construction

High Surge/Overload

Capability

Controlled Temperature

Capability

Solvent Resistant Coat and

Code

Special Lead Formations

Possible

Standard Range Leaded

Style

ROXO5

ROX1

ROX2

L ±1

3 ±0.5

4 ±0.5

6 ±1

Dimension “l” refers to loose

packaged product only

Standard Range Pre-formed

d nom

0.7

0.8

l min

Style

ROXO5

ROX1

ROX2

P1 ±0.5

12.5

P2 ±2

12.5

7.5 ±1.5

7.5 ±2.0

3.5 ±1

h max

2.0

3.0

"S" Range Leaded

Style

ROXO5S

ROX1SS

ROX1S

ROX2S

ROX3S

ROX5S

L ±1

6.5

25 ±2

D ±0.5

2.3

5.5

8.5 ±1

d nom

0.6

0.7

0.8

l min

"S" Range Pre-formed

Style

ROXO5S

ROX1SS

ROX1S

ROX2S

ROX3S

ROX5S

P1 ±0.5

12.5

P2 ±2

12.5

7.5 ±1.5

7.5 ±0.5

7.5 ±1.5

7.5 ±2.0

3.5 ±1

h max

2.0

2.9

3.0

Mounting

The resistors are suitable for processing on automatic insertion equipment and cutting and bending machines.

Marking

The resistors are marked with a four-band colour code in accordance with IEC 62.

Literature No. 1773271

Issued: 07-07

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com

Recommended Resources

CD4098 pulse delay and stretching circuit

High stability wireless microphone circuit

T68 horizontal boring machine upper power distribution board wiring diagram circuit

Thyristor speed control circuit

Safe and practical charger

TDA3048 (TV) infrared remote control receiving circuit
