PI49FCT811ATQX datasheet, PDF - EEWORLD Datasheet

PI49FCT811ATQX: DescriptionLow Skew Clock Driver, FCT Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO24, 0.150 INCH, QSOP-24; Categorylogic logic; File Size169KB，6 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric View All

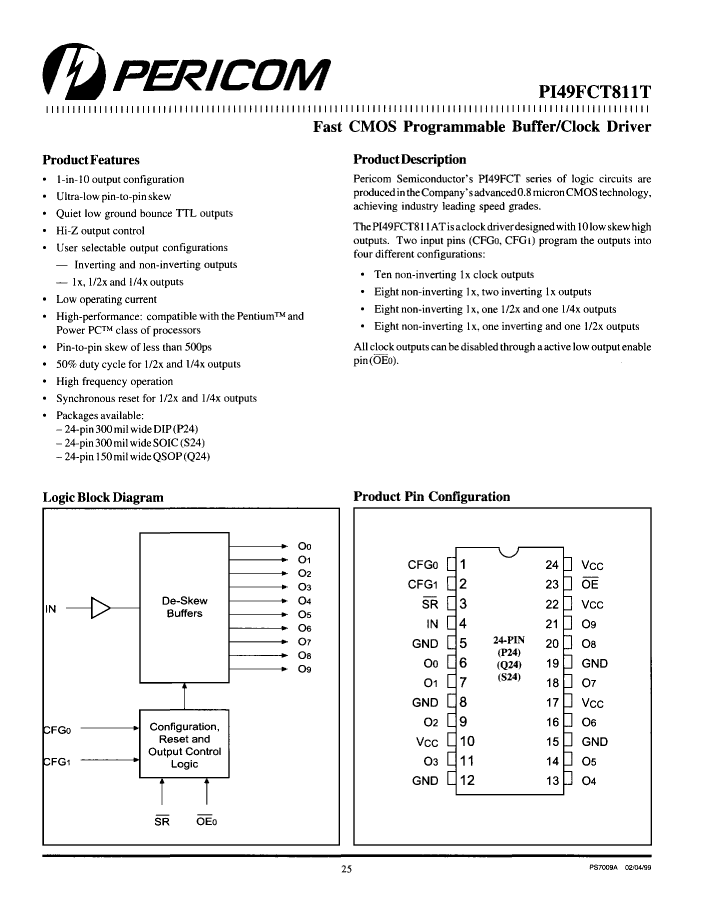

PI49FCT811ATQX Overview

Low Skew Clock Driver, FCT Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO24, 0.150 INCH, QSOP-24

Parameter Name	Attribute value
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99

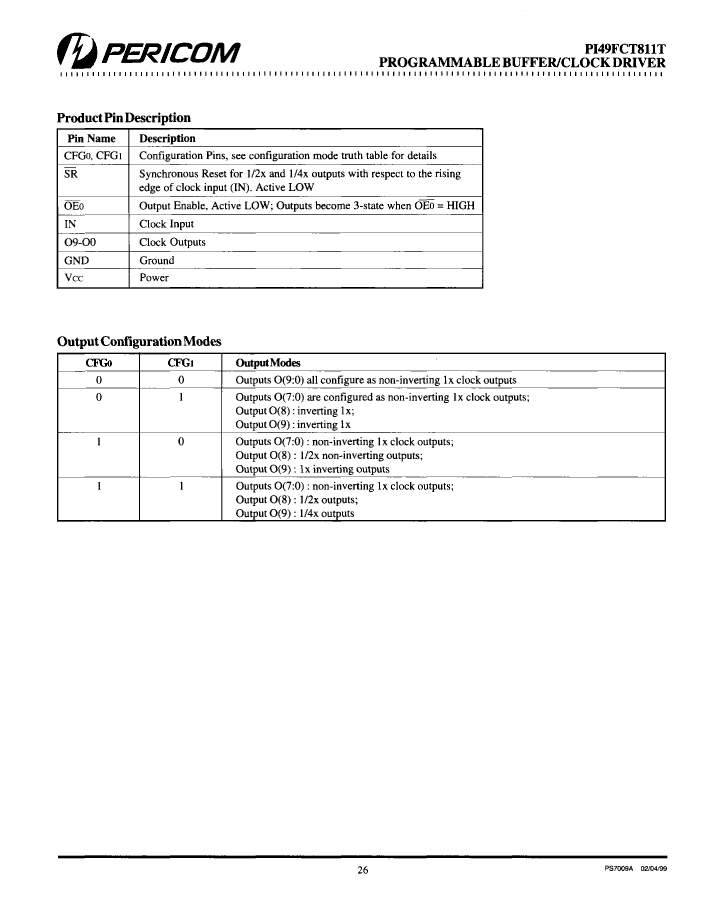

Other features	MULTIPLE SELECTABLE PHASE/FREQUENCY RELATIONS FOR THE CLOCK O/P
series	FCT
Input adjustment	SCHMITT TRIGGER
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	24
Actual output times	10

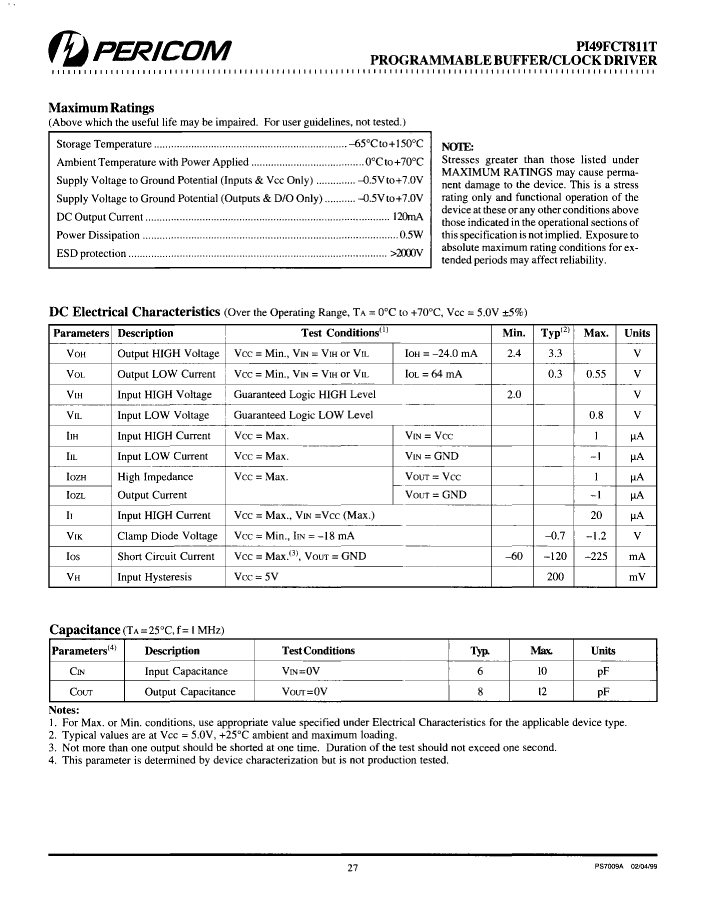

Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH

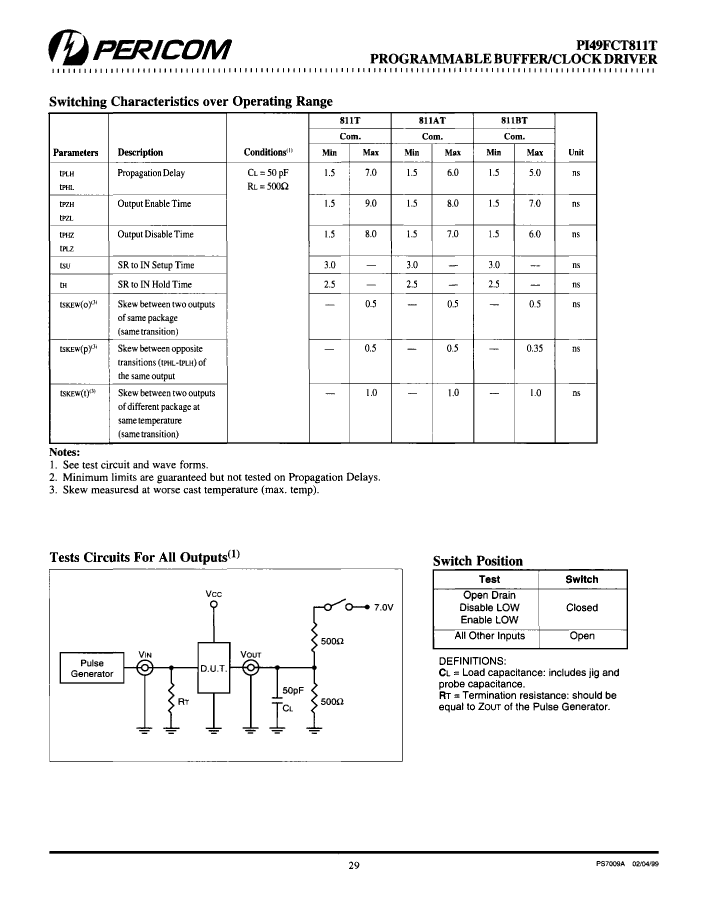

propagation delay (tpd)	6 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.5 ns
Maximum seat height	1.75 mm

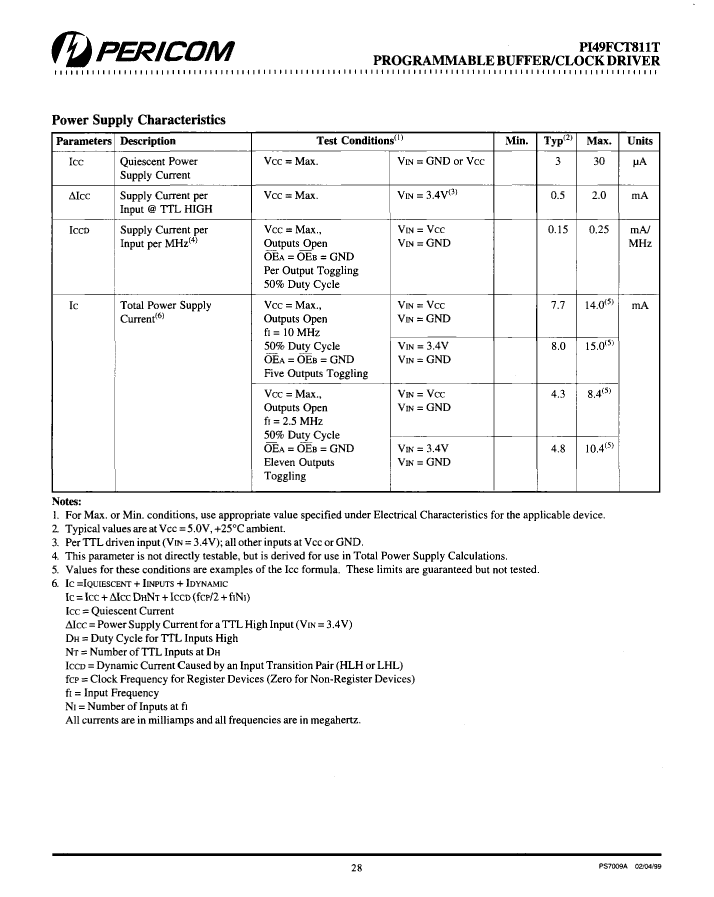

Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm
