BU4021BFE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> BU4021BFE2

BU4021BFE2: Description4000/14000/40000 SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, ROHS COMPLIANT, SOP-16; Categorylogic logic; File Size569KB，16 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BU4021BFE2 Overview

4000/14000/40000 SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, ROHS COMPLIANT, SOP-16

BU4021BFE2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Other features	OUTPUTS ALSO AVAILABLE AT 6TH AND 7TH STAGE OF THE SHIFT REGISTER
Counting direction	RIGHT
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
JESD-609 code	e2
length	10 mm
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Trigger type	POSITIVE EDGE
width	4.4 mm

BU4021BFE2 Preview

Datasheet

General Purpose CMOS Logic IC

8bit Static Shift Resister

BU4021BF

General Description

BU4021BF is an 8bit static shift resister.It consists of eight

resister stages and each register has an parallel input. A

serial input/serial output function or a parallel input/serial

output function can be selected by a parallel/serial input

selection pin (P/S).

Key Specifications



Operating Supply Voltage Range:



Input Voltage Range:



Operating Temperature Range:

+3V to +16V

0V to V

-40°C to +85°C

Packages

Features



Low Power Consumption

Wide Operating Supply Voltage Range

High Input Impedance

High Fan Out

2 L-TTL Inputs or 1 LS-TTL Input can be directly

driven

SOP16

W(Typ) x D(Typ) x H(Max)

10.00mm x 6.20mm x 1.71mm

Truth Table

Pin Configurations

(Top View)

Serial Input－Serial Output

Input

CLOCK

P/S

16 VDD

15 P7

14 P6

13 P5

12 Q7

11 DS

10 CLOCK

9 P/S

CLOCK

P/S

Output

n-1

P8 1

Q6 2

Q8 3

P4 4

P3 5

P2 6

P1 7

VSS 8

No Change

Parallel Input－Serial Output

Input

Output

X: Don’t Care

: Q6,Q7,Q8 are outside of IC

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

○This

product has not designed protection against radioactive rays

1/13

TSZ02201-0RDR1GZ00230-1-2

04.Sep.2013 Rev.001

BU4021BF

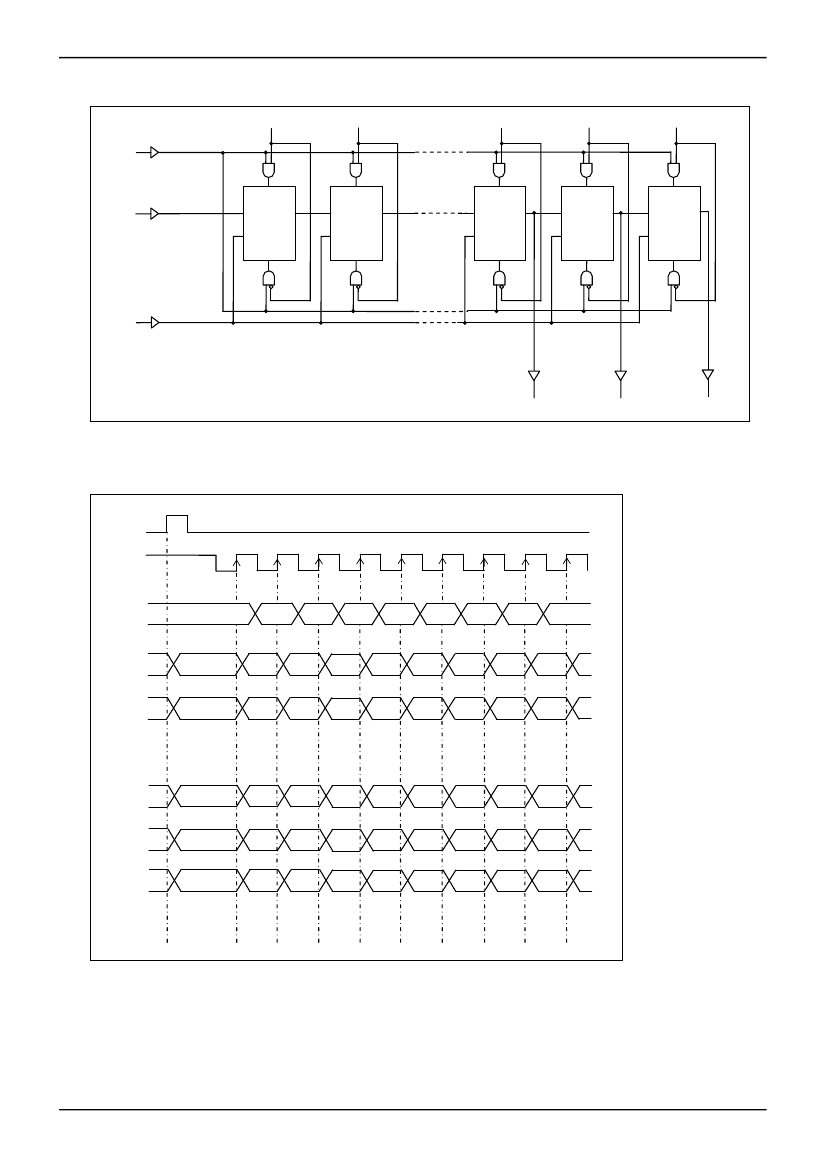

Logic Diagram

P/S

SET

P3,P4,P5

are same

with P1,P2

Datasheet

SET

CLK

RESET

CLK

RESET

CLK

RESET

CLK

RESET

CLK

RESET

CLOCK

Timing Chart

P/S

CLOCK

・

www.rohm.com

TSZ22111・15・001

2/13

TSZ02201-0RDR1GZ00230-1-2

04.Sep.2013 Rev.001

BU4021BF

Pin Descriptions

Pin No.

Pin Name

VSS

P/S

CLOCK

VDD

I/O

―

Function

Parallel data input 8

Output 6

Output 8

Parallel data input 4

Parallel data input 3

Parallel data input 2

Parallel data input 1

Ground

Parallel/serial input selection

Clock input

Serial data input

Output 7

Parallel data input 5

Parallel data input 6

Parallel data input 7

Power supply

Datasheet

Absolute Maximum Ratings

Parameter

Supply Voltage

Input Voltage

Input Current

Operating Temperature

Storage Temperature

Maximum Junction Temperature

Power Dissipation

Symbol

opr

stg

Jmax

Rating

-0.3 to +18.0

-0.3 to (V

+0.3)

±10

-40 to +85

-55 to +150

+150

0.56

(Note 1)

Unit

°C

(Note 1) Mounted on 70mm x 70mm x 1.6mm glass epoxy board. Reduce 4.5mW per 1°C above 25°C.

Caution:

Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit

between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated

over the absolute maximum ratings

Recommended Operating Conditions

Parameter

Supply Voltage

Input Voltage

Symbol

Rating

+3.0 to +16.0

0 to V

Unit

www.rohm.com

TSZ22111・15・001

3/13

TSZ02201-0RDR1GZ00230-1-2

04.Sep.2013 Rev.001

BU4021BF

Electrical Characteristics

(Unless otherwise specified, V

=0V, T

=25°C)

Parameter

Input “H” voltage

Symbol

Min

3.5

7.0

11.0

4.95

9.95

14.95

-0.16

-0.4

-1.2

0.44

1.1

3.0

Limits

Typ

Max

1.5

3.0

4.0

0.3

-0.3

0.05

Unit

(V)

Conditions

Datasheet

Figure

No.

Input “L” voltage

Input “H” current

Input “L” current

Output “H” voltage

µA

=15V

=0V

=0mA

DC Characteristics

Output “L” voltage

=0mA

=4.6V

=9.5 V

=13.5 V

=0.4 V

=0.5 V

=1.5 V

or 0V

Output “H” current

Output “L” current

Quiescent supply current

µA

(Unless otherwise specified V

=0V, T

=25°C, C

=50pF）

Parameter

Output rising time

Symbol

TLH

Min

Limits

Typ

180

100

400

170

115

400

170

115

150

3.0

6.0

8.0

150

Max

5.0

4.0

Unit

(V)

Conditions

Figure

No.

Output falling time

Propagation delay time

L to H

Switching Characteristics

Propagation delay time

H to L

Set up time

THL

PLH

3・5

PHL

4・6

Minimum clock pulse width

(CLK)

Maximum clock frequency

Maximum clock rising time

Maximum clock falling time

Minimum P/S pulse width

Input capacitance

f (CLK)

(CLK)

(P/S)

MHz

µs

www.rohm.com

TSZ22111・15・001

4/13

TSZ02201-0RDR1GZ00230-1-2

04.Sep.2013 Rev.001

BU4021BF

Datasheet

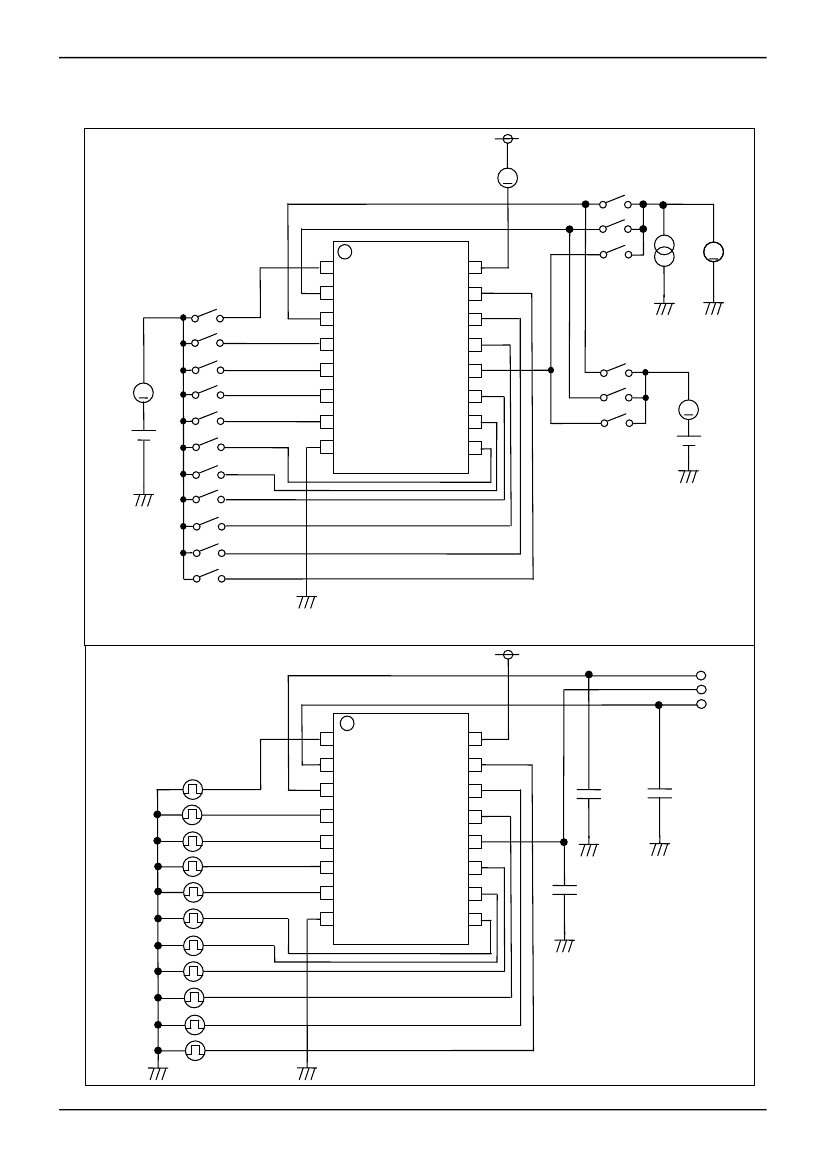

Test Circuits

1. DC Characteristics

A I

1 P8

2 Q6

3 Q8

4 P4

5 P3

6 P2

7 P1

8 VSS

VDD 16

P7 15

P6 14

P5 13

Q7 12

DS 11

CLOCK 10

P/S 9

+ V V

A I I

OH OL

2. Switching Characteristics

OUTPUT

1 P8

INPUT

2 Q6

3 Q8

4 P4

5 P3

6 P2

7 P1

8 VSS

VDD 16

P7 15

P6 14

P5 13

Q7 12

DS 11

CLOCK 10

P/S 9

=50pF

www.rohm.com

TSZ22111・15・001

5/13

TSZ02201-0RDR1GZ00230-1-2

04.Sep.2013 Rev.001
