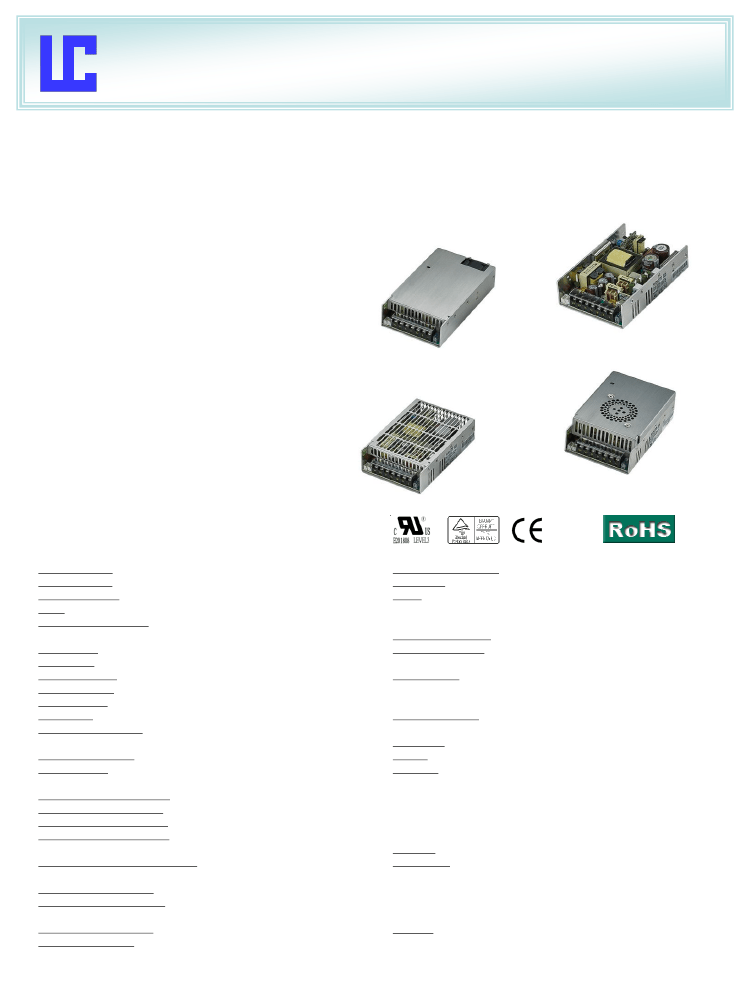

125W ~ 300W AC-DC SWITCHING POWER SUPPLY
RL0601D DUAL OUTPUT SERIES
FEATURES:
◆
Compact 300W with 1U height Power Density: 8.3 watts/cu in
◆
Low Leakage Current 500uA @ 240Vac / 300uA @ 120Vac
◆
5/ 12/ 24/ 48V Dual Output Optional Combinations
◆
Power Factor Corrected to EN61000-3-2 class A
◆
Variable Fan Speed & Low Acoustical Noise
◆
High Quality & Reliable Component Usage
◆
Approved to UL CUL TUV CB and CE
◆
AC Input Range Auto-Selectable
◆
4 - Mechanical Options
E Type:
7(L) x 4(W) x 1.6(H) inches.
U Type:
6(L) x 4(W) x 1.5(H) inches.
F Type:
6(L) x 4(W) x 2(H)inches.
C Type:
6(L) x 4(W) x 1.55(H) inches.
PRODUCT SPECIFICATIONS:
Input Voltage:
90-132 / 180-264Vac auto-ranging, 47~63Hz.
Input Current:
8/4A at 100-120/200-240Vac.
Inrush Current:
Max. 70A@230Vac & 35A@115Vac; cold start.
PFC:
Power Factor Correction pass EN61000-3-2 class A.
Transient Response:
Returns to within 1% in less than 2.5mS for a
50% load change and the peak transient does not excess 5%.
Overshoot:
Turn-on & off overshoot < 5% over nominal voltage.
Efficiency:
75% ~ 85% depends on model.
Turn On Delay:
1 second maximum at 230 Vac.
Hold Up Time:
20mS min. at 80% of full load.
Adjustability:
Output user adjustable +/-5% minimum.
Fan Drive:
12VDC/400mA offering to drive an external fan.
Fan Fail (FF) Alarm:
Designated as
FF
on pin 3 of CN1, two types
of logical signal provided, contact manufacturer.
Power Supply On:
Green LED designated as
LED1
on the PCB.
Power Good: PG
on CN1 goes high 100-500mS after DC regulation
and low at least 1mS before loss of regulation (Open collector).
Input Fusing Protection:
One T8A/250V fuse inserted in primary.
Over-Power Protection:
110~140% of I-Max; Auto-recovery.
Short Circuit Protection:
Trip without damage and auto-recovery.
Over Voltage Protection:
Unit latching down when output exceed
130% and recycle AC input to reset.
Over-Temperature Protection:
Unit protected of excessive
operating ambient 110
℃,
and automatic recovery.
Switching Frequency:
23K Hz fixed frequency.
Operating Temperature:
0℃ to 70℃ ambient, de-rating at 2.5% per
degree from 50℃ to 70℃.
Storage Temperature:
-20 to 85
℃.
Storage Humidity:
5% to 95% RH, Non-condensing.
CB
Operating Humidity:
5% to 90% RH, Non-condensing.
Vibration:
5 ~ 50 Hz, acceleration 7.35 m/s*s on X,Y and Z Axis.
EMC:
EN55022 class B conducted / radiated, EN61000-3-2,
EN61000-3-3; EN55024 (IEC61000-4-2, IEC61000-4-3, IEC61000-
4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11).
Safety Regulation:
UL60950-1, EN60950-1, IEC60950-1.
Leakage Current:
< 1mA @ 264Vac.
(optional for 500uA max. at 240Vac / 300uA max. at 120Vac input)
HI-POT Test:
1500 VAC input line to chassis (10mA DC cut off
current); Isolating 3000VAC primary to secondary windings;
Primary to core 1500VAC. All for 3 sec.
Grounding Test:
Apply 25 A from ground pin of the three prong
plug to the far most earth. Max allowable resistance 0.1 ohm.
Warranty:
2 years.
MTBF:
100000 Hrs (according to MIL-HBK-217F) at 30
℃
.
Cooling:
U Type: U-Chassis @300W max. with 18CFM airflow or 150W max.
convection cooling
C Type: U-Chassis with top cover @150W max. convection cooling
E Type: Enclosed with side built-in fan @300W max.
F Type: Enclosed with top built-in fan @300W max.
Burn in:
45 +/- 5 degree C for 1 hour @230Vac with full load.
Enclosure:
U Type: 6(L) x 4(W) x 1.5(H) inches.
C Type: 6(L) x 4(W) x 1.55(H) inches.
E Type: 7(L) x 4(W) x 1.6(H) inches.
F Type: 6(L) x 4(W) x 2(H)inches.
Weight:
Maximum weight is 800g.
Copy Right Ultra Level Tech Co., Ltd 2015, All Right Reserved. Specifications subject to change without notice.
ULTRA LEVEL TECH CO., LTD.
www.ultralevel.com.tw
Tel:+886-2-29180118
Fax:+886-2-29181465
We Supply the Power Customers Need
ISO9001
OUTPUT VOLTAGE / CURRENT RATING CHART:
Measured at output power connector.
Model
Number
Output
Voltage
Max. Output Current
Type U (force air)
&E&F
30A
16.67A
30A
8.33A
30A
4.16A
16.67A
8.33A
Type U, C
(Convection)
15A
10.42A
15A
5.2A
15A
2.6A
12.5A
6.25A
+/- 5%
+/- 5%
+/- 5%
+/- 5%
+/- 5%
+/- 5%
+/- 5%
+/- 5%
Regulation
Ripple &
Noise
RL0601Dx-0512
RL0601Dx-0524
V1:+5V
V2:+12V
V1:+5V
V2:+24V
V1:+5V
V2:+48V
V1:+12V
V2:+24V
1%
1%
1%
1%
1%
1%
1%
1%
RL0601Dx-0548
RL0601Dx-1224
Note:
* RL0601D series are designated as RL0601Dx-y where x can be
U
(U-Chassis),
C
(U-Chassis with top cover),
E
(Enclosed Type with side
built-in Fan) or
F
(Enclosed Type with side built-in Fan); y can be
0512, 0524, 0548, 1224.
* RL0601DU
(with min. 18CFM forced air flow) &
RL0601DE
&
RL0601DF Series:
Max. 300W total combined power of V1 and V2 for RL0601Dx-1224 and 250W for other models.
* RL0601DU and RL0601DC Series
with convection cooling:
Max. 150W total combined power of V1 and V2 for RL0601Dx-1224 and 125W for other models.
* Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output with parallel 0.1µF ceramic and 22µF electrolytic capacitors.
* 10% minimum load is required to maintain the ripple and regulation.
* Output is fully isolated.

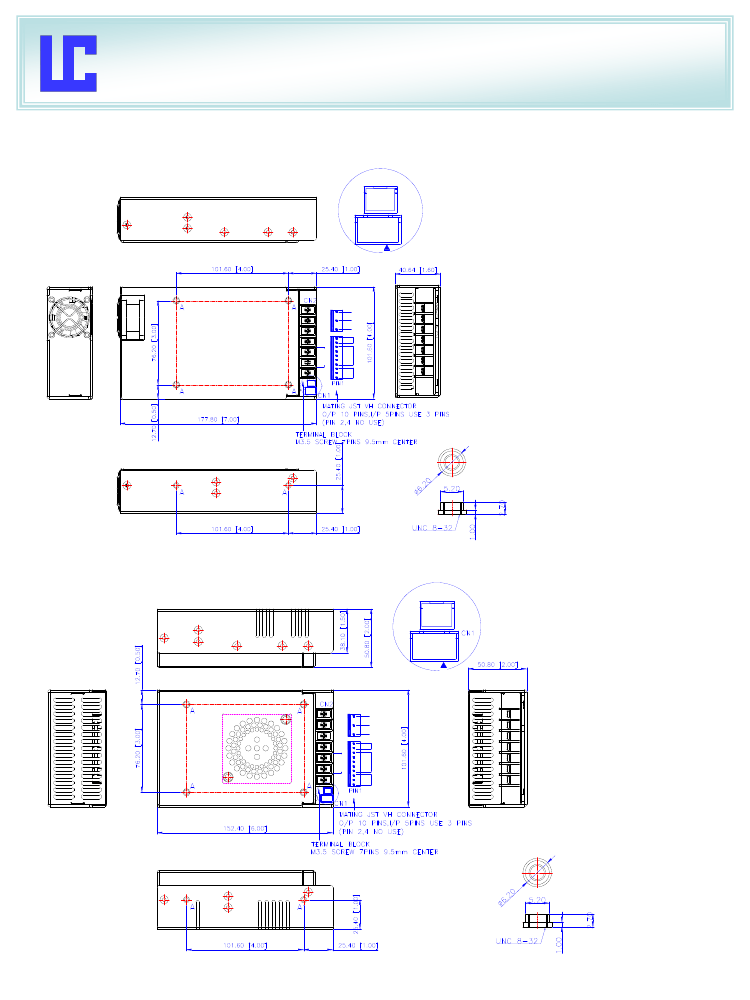

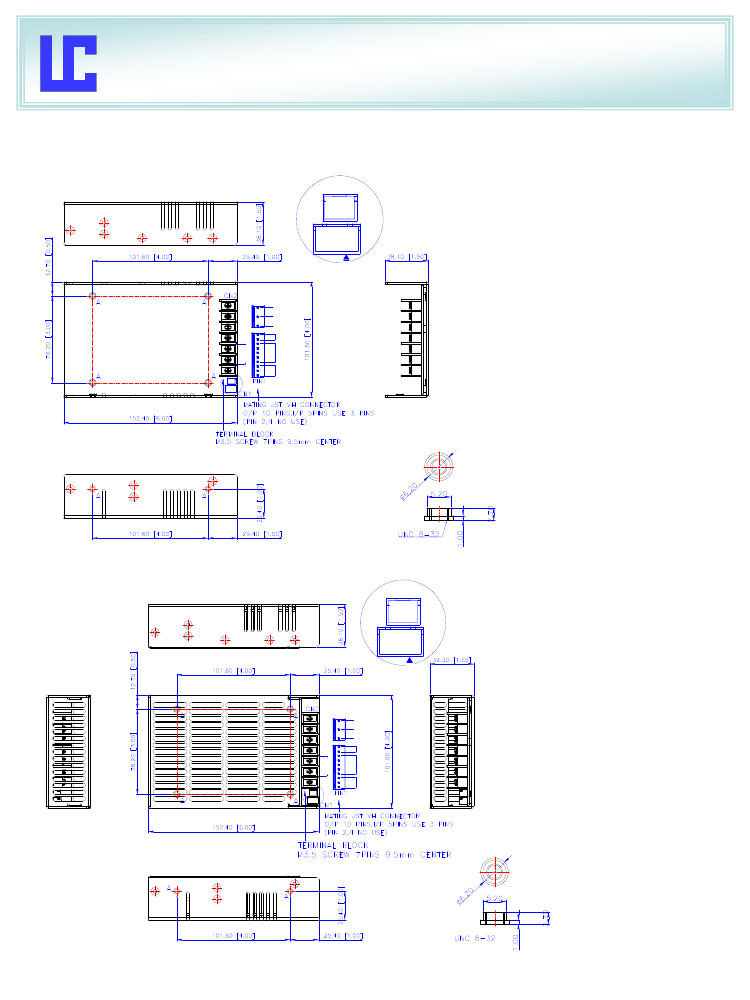

OUTLINE DRAWING:
Input and Output Connector (CN2):
Terminal block - Howder Part No. HB-95-7P
Molex - Mating JST VH series. Input 5 pin connector (3 pin used, pin 2 & pin 4 removed),
PCB labeling: L = Line; N = Neutral; G = Chassis Ground. Output 10 pin connector.
Input and Output Connector Pin Assignment:
(See table in right).
Mounting Inserts:
6 Places 8-32 (M4X0.7 Optional). Maximum Penetration 4mm sees outline drawing for
location.
Logic signal connector (CN1):
Mating JST XHP-3 or equivalent (CHYAO SHIUNN JS-2001-03);
Mating Pins: JST SXH-002T-P0.6 FOR AWG 30 to 26.
Fan driver connector (FAN2):
Mating connector is JST P/N XHP-2 (2 pins 0.98 pitch) or equivalent (CHYAO SHIUNN
JS-2001-02).
Howder
Pin 1: V1
Pin 2 ~ 3: RTN
Pin 4: V2
Pin 5: GND
Pin 6: Neutral
Pin 7: Line
Molex
Pins 1 ~ 3: V1
Pins 4 ~ 8: RTN
Pins 9 ~ 10: V2
Pin 11: GND
Pin 13: Neutral
Pin 15: Line
