213574-8

Description
CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET
CategoryThe connector    The connector
File Size71KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

213574-8 Overview

CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET

213574-8 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
Other featuresAMP
Body/casing typeSOCKET
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTIN LEAD
Contact point genderFEMALE
Contact materialBRASS
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPHENOLIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number213574
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Shell materialPHENOLIC
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-0
Base Number Matches1

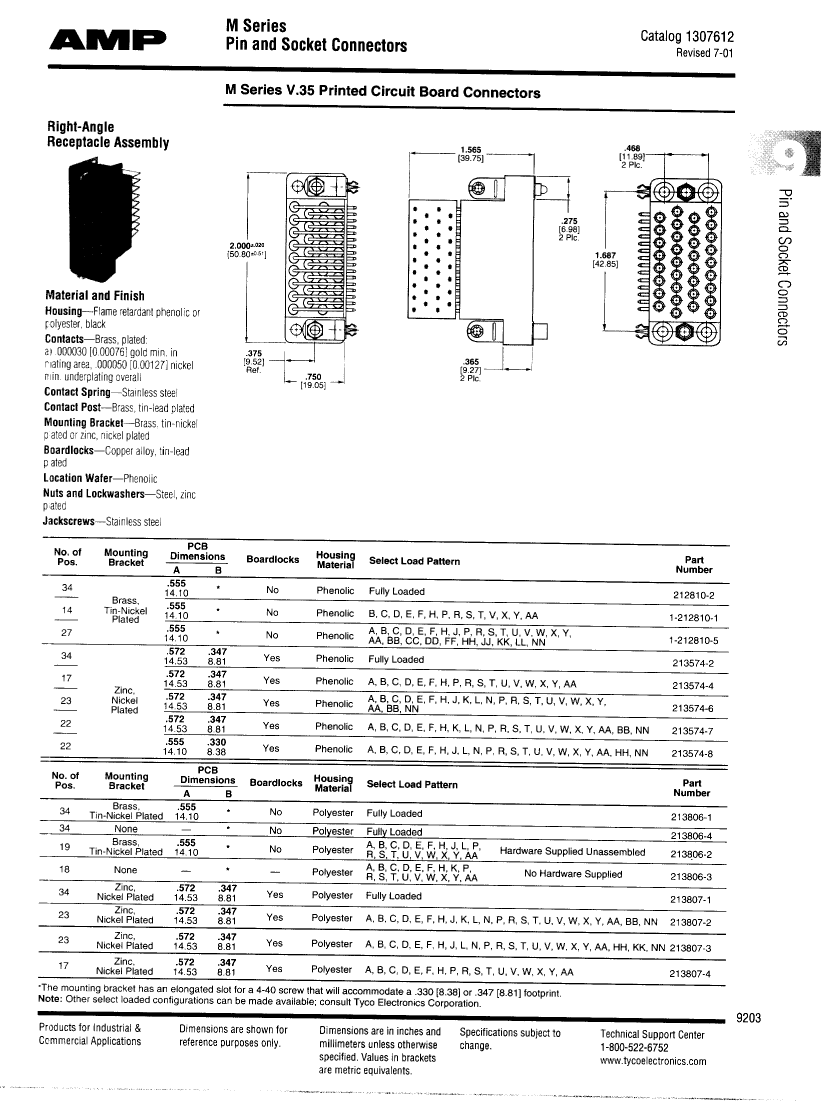

Preview

Download Datasheet

213574-8 Related Products

213574-8 213574-6 213574-7 213806-1 213806-2 213806-3 213806-4 213807-1 213807-2 213807-3
Description CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET CONNECTOR, 24 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET CONNECTOR, 22 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET 34 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET 19 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET 18 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET 34 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, SOCKET 34 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE 34 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE 34 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code unknow unknow unknow unknow unknow unknow unknow unknow unknow unknow
Body/casing type SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET RECEPTACLE RECEPTACLE RECEPTACLE
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact completed and terminated TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO NO NO NO NO NO NO
empty shell NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
MIL compliance NO NO NO NO NO NO NO NO NO NO
Manufacturer's serial number 213574 213574 213574 213806 213806 213806 213806 213807 213807 213807
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Shell material PHENOLIC PHENOLIC PHENOLIC BRASS BRASS BRASS BRASS POLYESTER POLYESTER POLYESTER
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 22 24 22 34 19 18 34 34 34 34
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible - - -
Other features AMP AMP AMP AMP AMP AMP AMP - - -
Contact to complete cooperation GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) GOLD (30) - - -
Contact material BRASS BRASS BRASS BRASS BRASS BRASS BRASS - - -
insulator material PHENOLIC PHENOLIC PHENOLIC POLYESTER PHENOLIC PHENOLIC POLYESTER - - -
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 - - -
Options - - - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
