2SC3345O datasheet, PDF - EEWORLD Datasheet

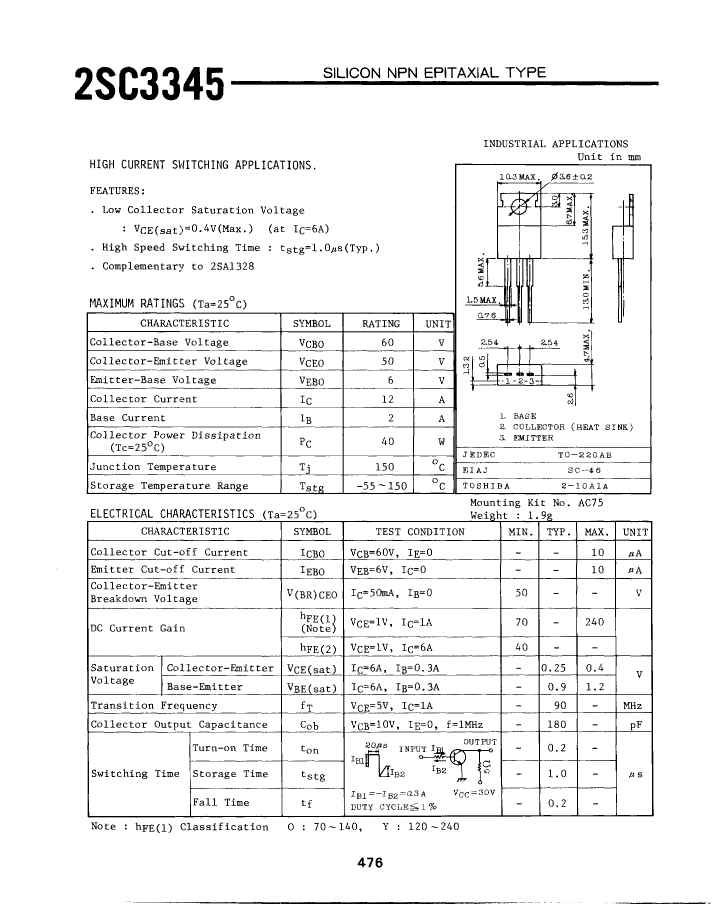

2SC3345O: DescriptionTRANSISTOR 12 A, 50 V, NPN, Si, POWER TRANSISTOR, TO-220AB, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size111KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

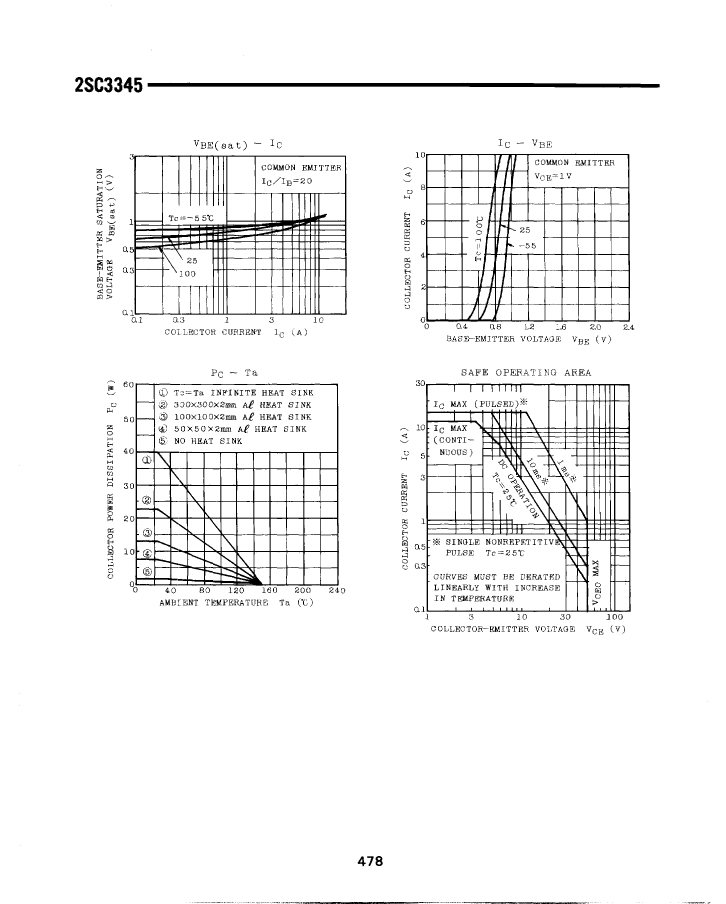

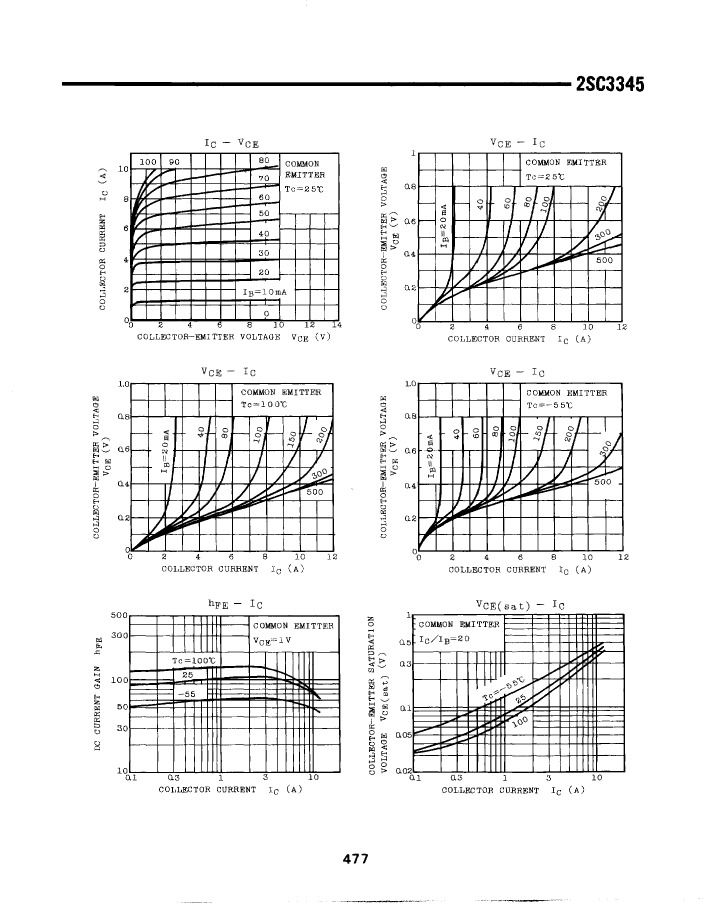

2SC3345O Overview

TRANSISTOR 12 A, 50 V, NPN, Si, POWER TRANSISTOR, TO-220AB, BIP General Purpose Power

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	12 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	70
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	90 MHz
Base Number Matches	1

	2SC3345O	2SC3345Y
Description	TRANSISTOR 12 A, 50 V, NPN, Si, POWER TRANSISTOR, TO-220AB, BIP General Purpose Power	TRANSISTOR 12 A, 50 V, NPN, Si, POWER TRANSISTOR, TO-220AB, BIP General Purpose Power
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	12 A	12 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	70	120
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	90 MHz	90 MHz
Base Number Matches	1	1
