HPLSP-19-5000-M-M

Description
Interconnection Device, ROHS COMPLIANT
CategoryThe connector    The connector
File Size634KB，1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

HPLSP-19-5000-M-M Overview

Interconnection Device, ROHS COMPLIANT

HPLSP-19-5000-M-M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Connector typeINTERCONNECTION DEVICE

Preview

Download Datasheet

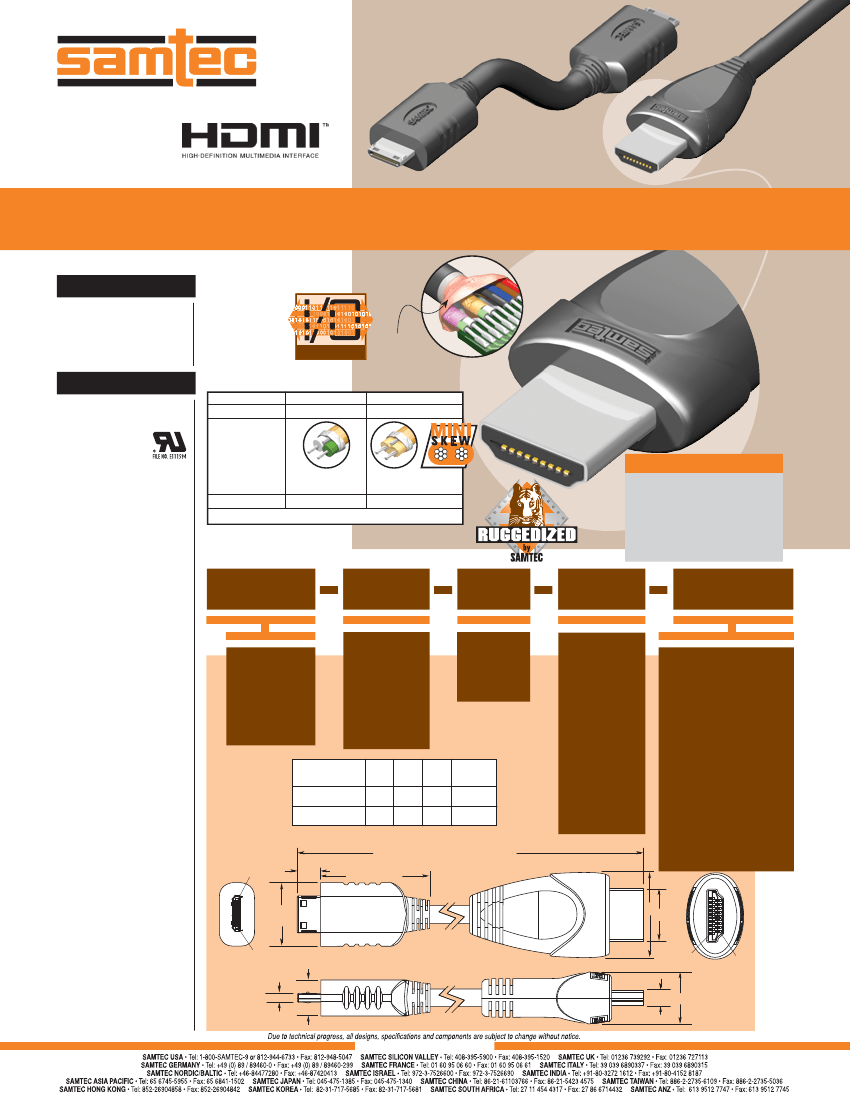

F-208
HPSTP–19–1000–ML–ML
HPSTP–19–2000–S–S
HDMI & MINI HDMI CABLES
FEATURES
•
Rugged External Cable
•
Hot Plug/Hot Swap
•
Applicable for many
differential protocols
Outer
EMI
Shield
HDMI Plus
HPLSP
HPLSP,
HPSTP SERIES
Mates with:
HDMI, MHDMI
DATA RATE I/O CABLE
A S S E M B L I E S
SPECIFICATIONS
For complete specifications see
www.samtec.com?HPLSP or
www.samtec.com?HPSTP
Signal Routing:
100Ω Differential
Pinout Map:
See web address above
RoHS Compliant:
Yes
Name
Series
HDMI
HPSTP
Cable Type
ALSO AVAILABLE
30 AWG Shielded 26 AWG MiniSkew
Twisted Pair
Low Skew Pair
Performance
1 GHz*
2 GHz*
*Estimated. May vary depending upon signal type.
• 30 AWG EyeSpeed™ MS
twinax cable.
(See HPDPI Series)
• Custom cable lengths/higher
performance.
Call Samtec.
TYPE
NO. OF
POSITIONS
LENGTH
END
NO. 1
END
NO. 2
–19
HPLSP
= Micro Low
Skew Pair Cable
= 5 Pairs, 4 Power,
19 Positions
–“XXXX”
= Length in
millimeters
–1000, –2000,
–3000, –5000
–S
= Standard HDMI
–S
= Standard HDMI
(–S–S & –M–S only)
–29
= 8 Pairs, 6 Power,
29 Positions
(–S end
option only)
–M
= Mini HDMI
(19 positions only)
HPSTP
= Micro Shielded
Twisted Pair Cable
–M
= Mini HDMI
(–M–M & –S–M only.
19 positions only.)
–SL
C
NO. OF
PAIRS
05
08
= Standard HDMI
with Locking
(19 positions only)
NO. OF
POSITIONS
–19
–29
A
(13,90)
.547
(21,20)
.835
B
–SL
= Standard HDMI with Locking
(–SL–SL only.
19 positions only.)
(20,51) (11,10)
.807
.437
(27,20) (13,00)
1.071 .512
–ML
= Mini HDMI
with Latching
(19 positions only)
–ML
= Mini HDMI with Latching
(–ML–ML only.
19 positions only.)
OVERALL LENGTH (XXXX) ± 2%
(6,50)
01
.256
(30,84) 1.214
(18,00)
.709
19
B
A
HDMI is a trademark of
HDMI Licensing LLC.
Note:
This product is non-standard,
non-returnable.
™
(10,00)
.394
(4,45)
.175
C
(2,42)
.095
01
02
WWW.SAMTEC.COM
