X1G003621008015 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> X1G003621008015

X1G003621008015: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size264KB，5 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

X1G003621008015 Overview

CMOS Output Clock Oscillator,

X1G003621008015 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time	4.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	40.96 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.7mm
longest rise time	4.5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

Clock OSC

SG-211SCE

SG-211SCE 40.960000 MHz D

Product name

Product Number / Ordering code

X1G0036210080xx

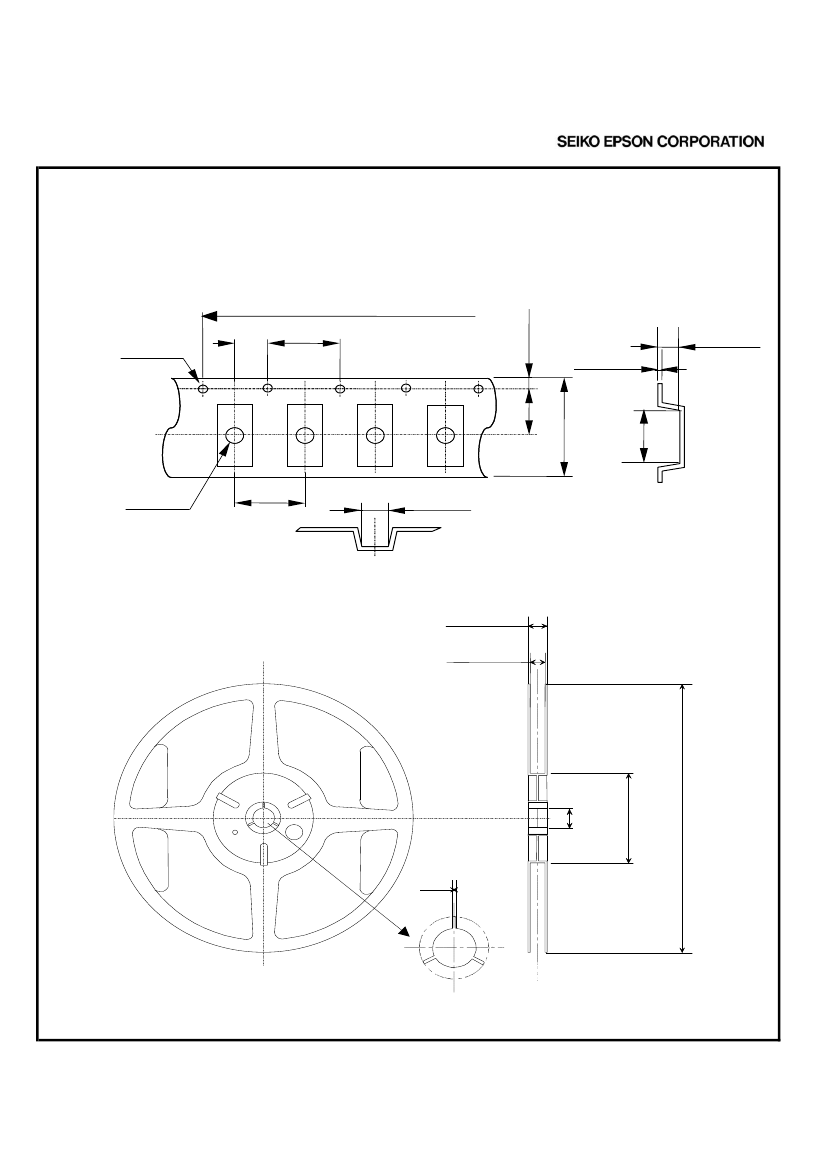

Please refer to the 8.Packing information about xx (last 2 digits)

Output waveform CMOS

Pb free / Complies with EU RoHS directive

Reference weight Typ. 13 mg

1.Absolute maximum ratings

Parameter

Symbol

Maximum supply voltage

Storage temperature

Input voltage

Min.

-0.6

-40

-0.6

Typ.

Max.

+125

Vcc+0.6

Unit

ºC

Conditions / Remarks

Storage as single product

ST terminal

Vcc-GND

T_stg

Vin

2.Specifications(characteristics)

Parameter

Symbol

Output frequency

Supply voltage

Operating temperature

Frequency tolerance

Current consumption

Stand-by current

Symmetry

Output voltage

Output load condition

Input voltage

Rise time

Fall time

Start-up time

Jitter

Min.

2.7

-20

0.9Vcc

0.8Vcc

Typ.

40.960000

3.3

TBD

0.46

-82

-110

-131

-149

-154

Max.

3.63

+70

4.5

5.0

0.1Vcc

0.2Vcc

4.5

Unit

MHz

ºC

x10

-6

µA

Conditions / Remarks

T_use

No load condition

ST = GND

50% Vcc Level L_CMOS=<15pF

IOH=-4mA

IOL=4mA

Vcc

T_use

f_tol

Icc

I_std

SYM

L_CMOS

t_str

RMS

p-p

acc

CMOS Load

ST terminal

dBc/Hz

x10

-6

0.2Vcc to 0.8Vcc Level, L_CMOS=15pF

t = 0 at 0.9Vcc

Deterministic Jitter Vcc=3.3V

Random Jitter Vcc=3.3V

δ(RMS of total distribution) Vcc=3.3V

Peak to Peak Vcc=3.3V

Accumulated Jitter(δ) n=2 to 50000

cycles

Off set Frequency: 12kHz to 20MHz Vcc=3.3V

Phase jitter

Phase noise

L(f)

Off set 1Hz Vcc=3.3V

Off set 10Hz Vcc=3.3V

Off set 100Hz Vcc=3.3V

Off set 1kHz Vcc=3.3V

Off set 10kHz Vcc=3.3V

Off set 100kHz Vcc=3.3V

Off set 1MHz Vcc=3.3V

Included in Frequency tolerance First year

Frequency aging

f_age

1 Page
