SMA4728A THRU SMA4764A
PB FREE PRODUCT
1W GLASS PASSIVATED JUNCTION SILICON ZENER DIODE
FEATURES
●
●
●
●
●
●
●
Glass passivated chip
Low leakage
Built-in strain relief
Low inductance
High peak reverse power dissipation
Lead (Pb)-free component
For use in stabilizing and
clipping circuits with high power
MECHANICAL DATA
●
●
●
●
●
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per
MIL-STD-202, method 208 guranteed
Polarity: Color band denotes cathode end
Mounting position: Any

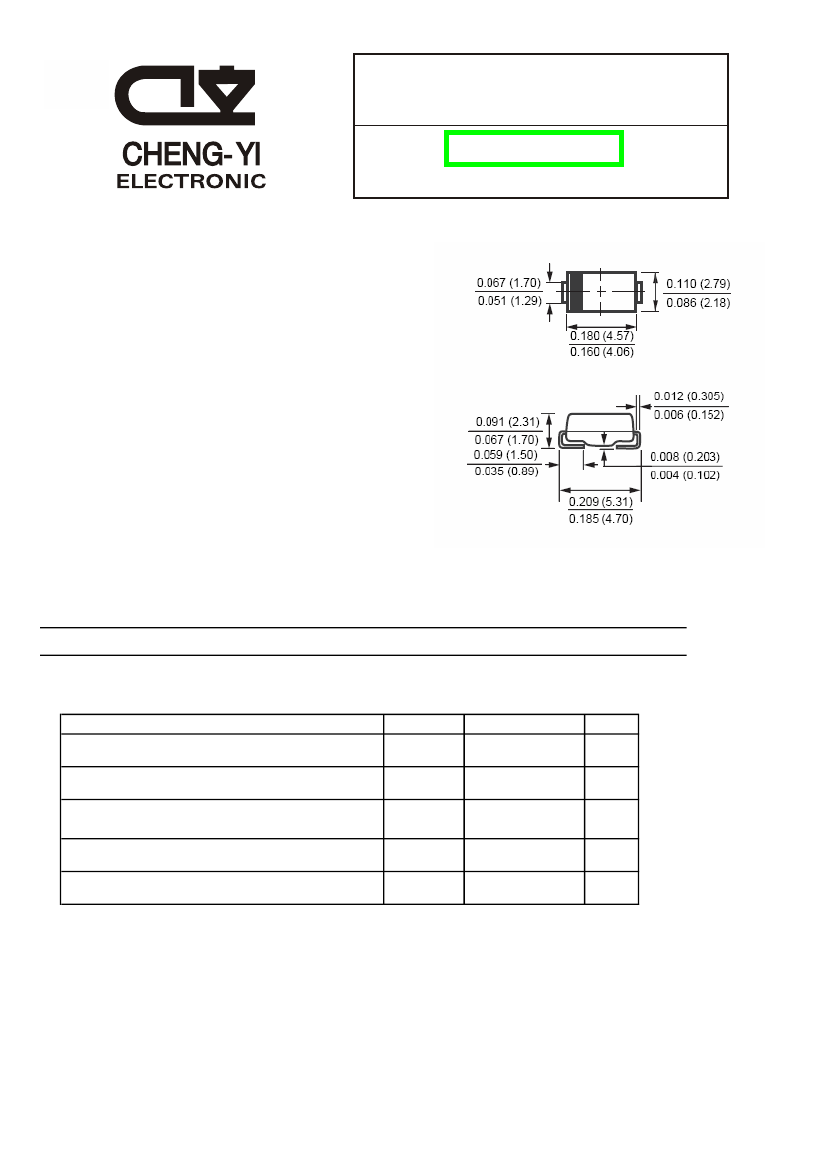

Dimensions in inches and (millimeters)
RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Parameter
DC Power Dissipation at TL = 50 °C (Note1)
Peak pulse current wih a 10/1000μs waveform
Maximum Thermal Resistance Junction to Ambient
Air (Note2)
Junction Temperature Range
Storage Temperature Range
Note:
(1) TL = Lead temperature at 3/8 " (9.5mm) from body.
(2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case.
Symbol
P
D
V
F
R
ӨJA
TJ
T
STG
Value
1.0
1.2
170.0
- 55 to + 175
- 55 to + 175
UNIT
Watts
Volts
K/W
°C
°C
