SP1020C thru SP10200C
PB FREE PRODUCT
SCHOTTKY BARRIER RECTIFIER
10.0AMP SCHOTTKY BARRIER RECTIFIERS
ITO-220 PACKAGE
FEATURES
* Low switching noise
* Low forward voltage drop
* High current capability
* High reliability
* High surge capability
* Pb free plating 99% Sn above
.154(3.90)
.114(2.90)
.098(2.50)
.602(15.3)
.579(14.7)
.114(2.9)
.098(2.5)
.187(4.70)
.406(10.3) .138(3.50) .169(4.30)
.382(9.70) .122(3.10)
.134(3.40)
.110(2.80)
MECHANICAL DATA
* Case: ITO-220 Molded plastic
* Epoxy: UL 94V-O rate flame retardant
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting position: Any
* Weight:
1.8
gram
.055(1.40)
.039(1.00)
.039(1.00)
.023(0.60)
.138(3.50)
.531(13.5)
.492(12.5)
.031(0.80)
.016(0.40)
.108(2.75)
.091(2.30)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive of inductive load.
For capacitive load, derate current by 20%
RATINGS
Marking Code
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
0.375" (9.5mm) lead length at TL = 90℃
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
CHARACTERISTICS
Maximum Forward Voltage at 5.0A DC, pre leg(Note 3)
Maximum Average Reverse Current at
Rated DC Blocking Voltage
@TA=25℃
@TA=100℃
VRRM
VRMS
VDC
IO
IFSM
RΘJA
CJ
TJ
TSTG
700
3.0
500
-65 to +125
-65 to +150
SYMBOL SP1020C SP1030C SP1040C SP1060C SP1080C SP10100C SP10150C SP10200C
SP1020C SP1030C SP1040C SP1060C SP1080C SP10100C SP10150C SP10200C
20
14
20
30
21
30
40
28
40
60
42
60
80
56
80
10.0
150
3.5
280
100
70
100
150
105
150
200
140
200
Volts
Volts
Volts
Amps
Amps
℃/W
PF
℃
℃
UNIT
Volts
mAmps
UNIT
SYMBOL SP1020C SP1030C SP1040C SP1060C SP1080C SP10100C SP10150C SP10200C
VF
IR
0.55
10
0.75
0.5
6
0.82
0.92
NOTES :1. Thermal Resistance (Junction to Ambient): Vertical PC Board Mounting, 0.5” (12.7mm) Lead Length.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. Measured at Pulse Width 300μs, Duty Cycle 2%.
SP1020C thru SP10200C
PB FREE PRODUCT
SCHOTTKY BARRIER RECTIFIER

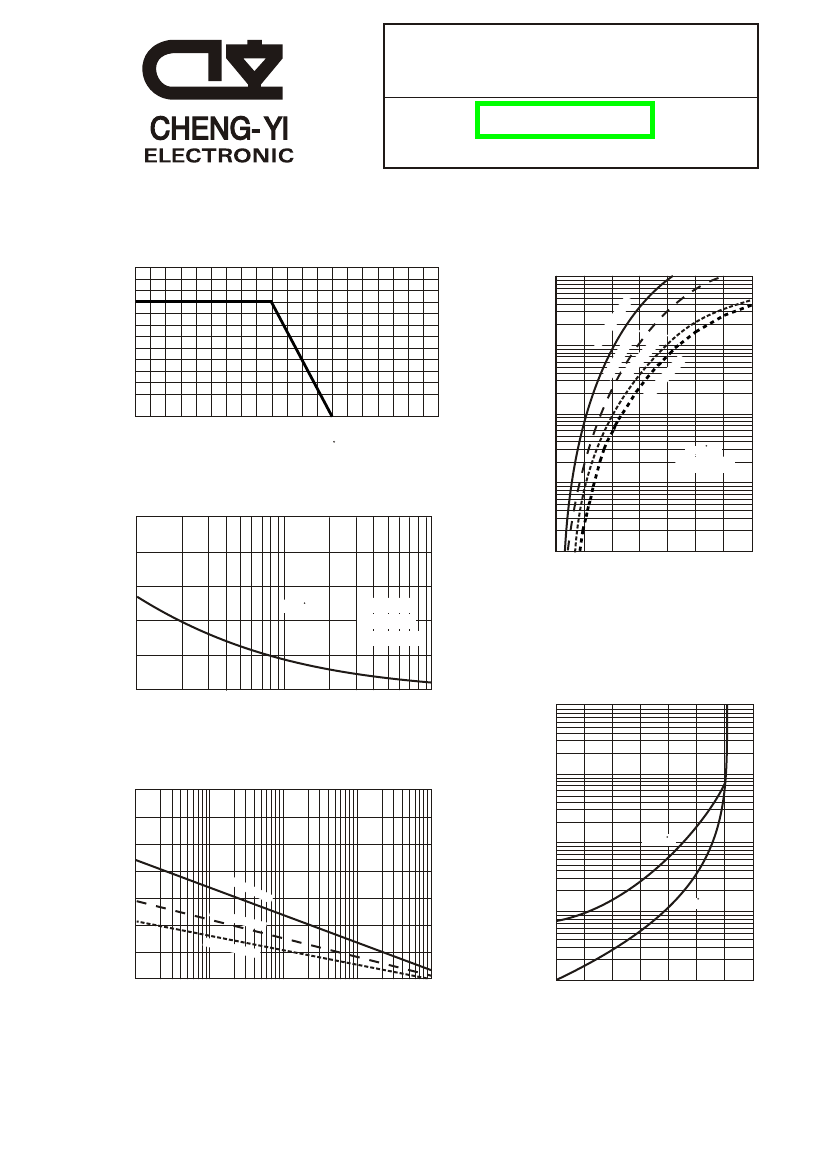

FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
12
04
0
10
SP
10
60
SP
C
10
80
C~
SP
SP
10
10
15
10
0C
0C
~S
P1
02
00
C
10
50
INSTANTANEOUS FORWARD CURRENT,(A)
20
C~
S
8
6
4
2
0
0
20
40
60
80
100
120
140
160
180
200
10
5.0
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
CASE TEMPERATURE,( C)
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
250
0.1
PEAK FORWARD SURGE CURRENT,(A)
200
.01
.1
.3
SP
.5
P1
C
.7
.9
1.1
1.3
1.5
FORWARD VOLT
AGE,(V)
150
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
100
50
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL JUNCTION CAPACITANCE
2800
2400
2000
1600
1200
800
SP10
SP
JUNCTION CAPACITANCE,(pF)
REVERSE LEAKAGE CURRENT, (mA)
10
1.0
Tj=100 C
102
0C
~S
P1
040
C
Tj=25 C
SP10
60C
.1
400
0
80C~
SP10
200
C
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLT
AGE,(%)
