5962-01-089-1912 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-089-1912

5962-01-089-1912: DescriptionBus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,; Categorylogic logic; File Size148KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-089-1912 Overview

Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,

5962-01-089-1912 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	compli
Control type	ENABLE HIGH
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Humidity sensitivity level	2A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

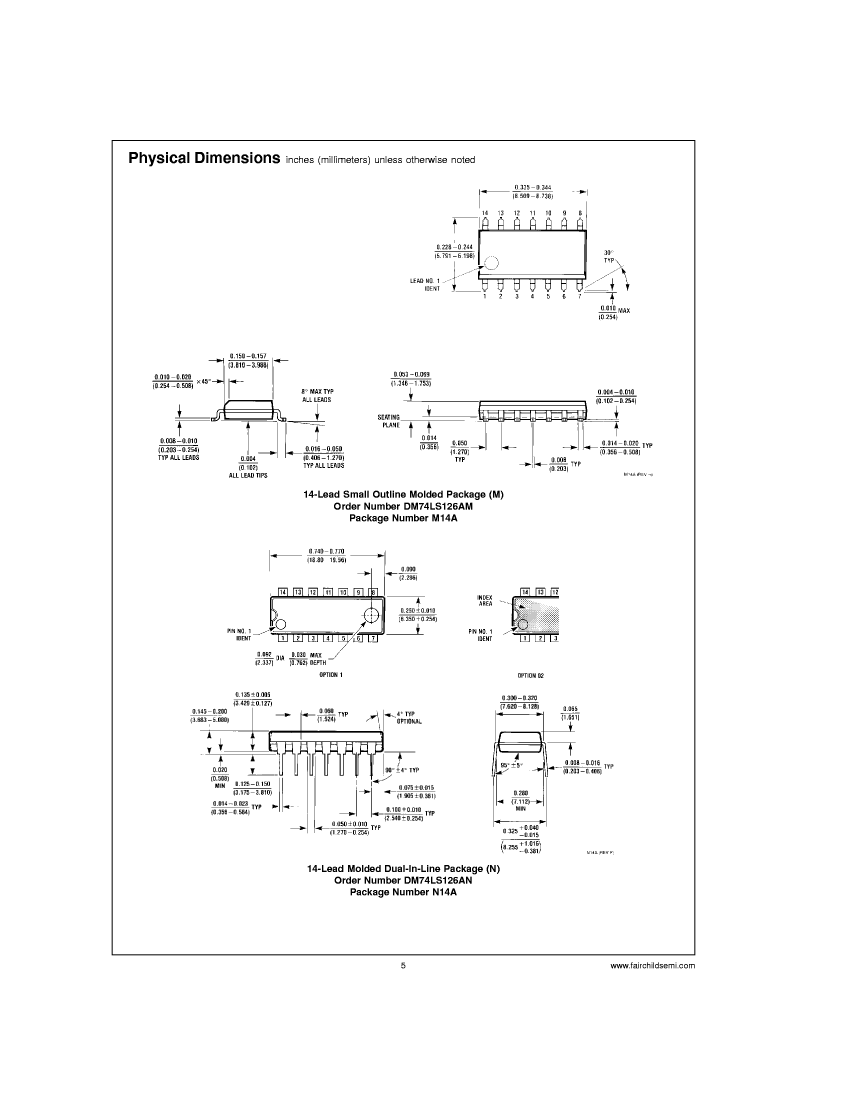

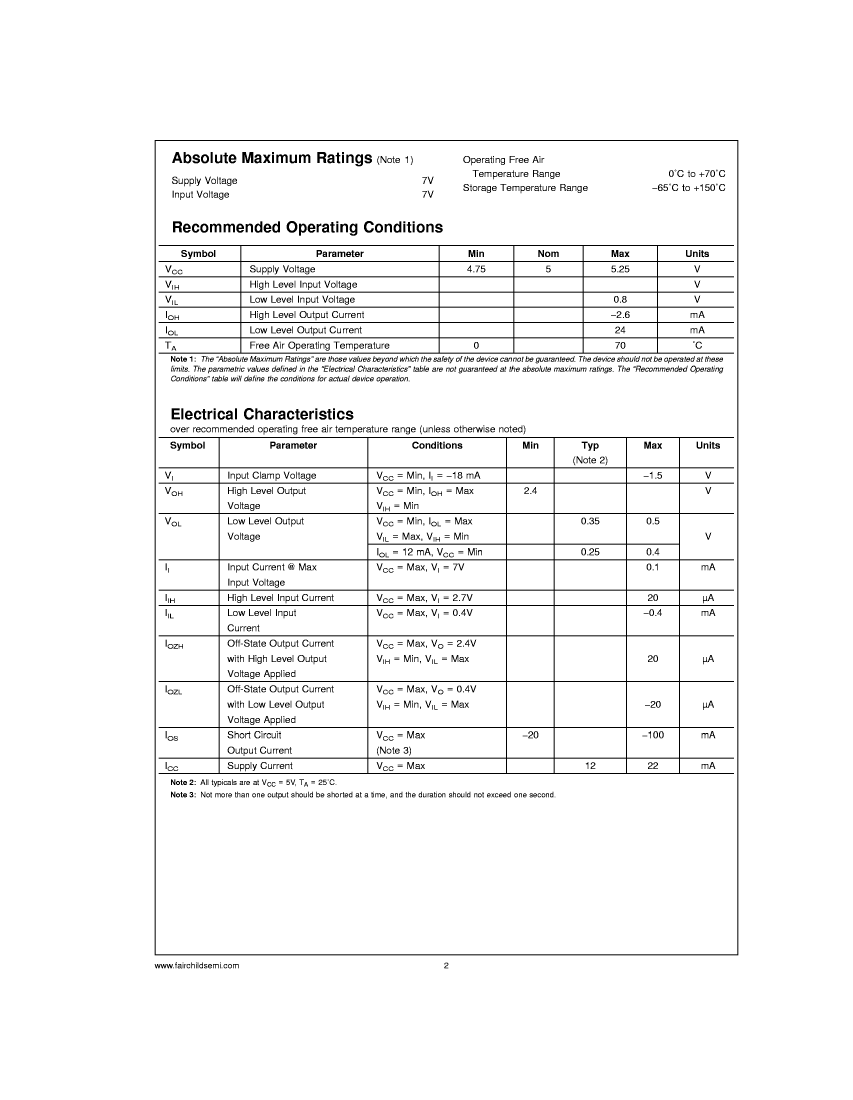

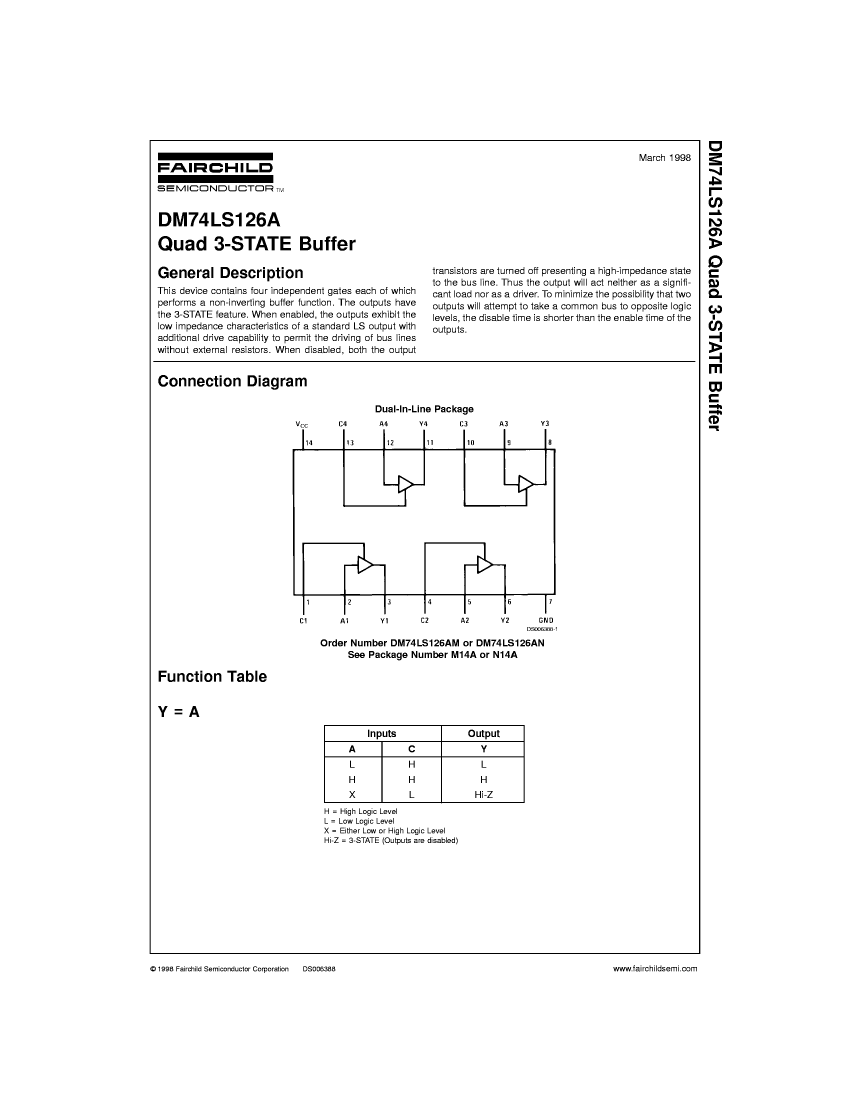

Preview

Download Datasheet

View All

5962-01-089-1912 Related Products

	5962-01-089-1912	54LS126FMQB	54LS126DMQB	74LS126PCQR	74LS126PCQM	5962-01-212-5891	74LS126DCQM	74LS126DCQR	74LS126SC
Description	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDFP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDFP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDSO14
Reach Compliance Code	compli	compliant	compliant	unknown	compliant	compliant	compliant	compliant	unknown
Control type	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH
JESD-30 code	R-XDIP-T14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDFP-F14	R-XDIP-T14	R-XDIP-T14	R-PDSO-G14
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.024 A	0.024 A	0.012 A	0.024 A	0.024 A	0.024 A
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	125 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP	DIP	DIP	DFP	DIP	DIP	SOP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	-	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
package instruction	DIP, DIP14,.3	-	-	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25
Humidity sensitivity level	2A	-	-	2A	2A	2A	2A	2A	-
Peak Reflow Temperature (Celsius)	250	-	-	250	250	250	250	250	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum time at peak reflow temperature	30	-	-	30	30	30	30	30	-
Base Number Matches	1	1	1	1	1	1	-	-	-
Maker	-	Fairchild	Fairchild	Fairchild	Fairchild	-	Fairchild	Fairchild	Fairchild
JESD-609 code	-	e0	e0	e0	e0	-	e0	e0	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
