SCL4508BCL datasheet, PDF - EEWORLD Datasheet

SCL4508BCL: DescriptionBus Driver, 4000/14000/40000 Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, CERDIP-24; Categorylogic logic; File Size172KB，9 Pages; ManufacturerR&E International, Inc.

Download Datasheet Parametric Compare View All

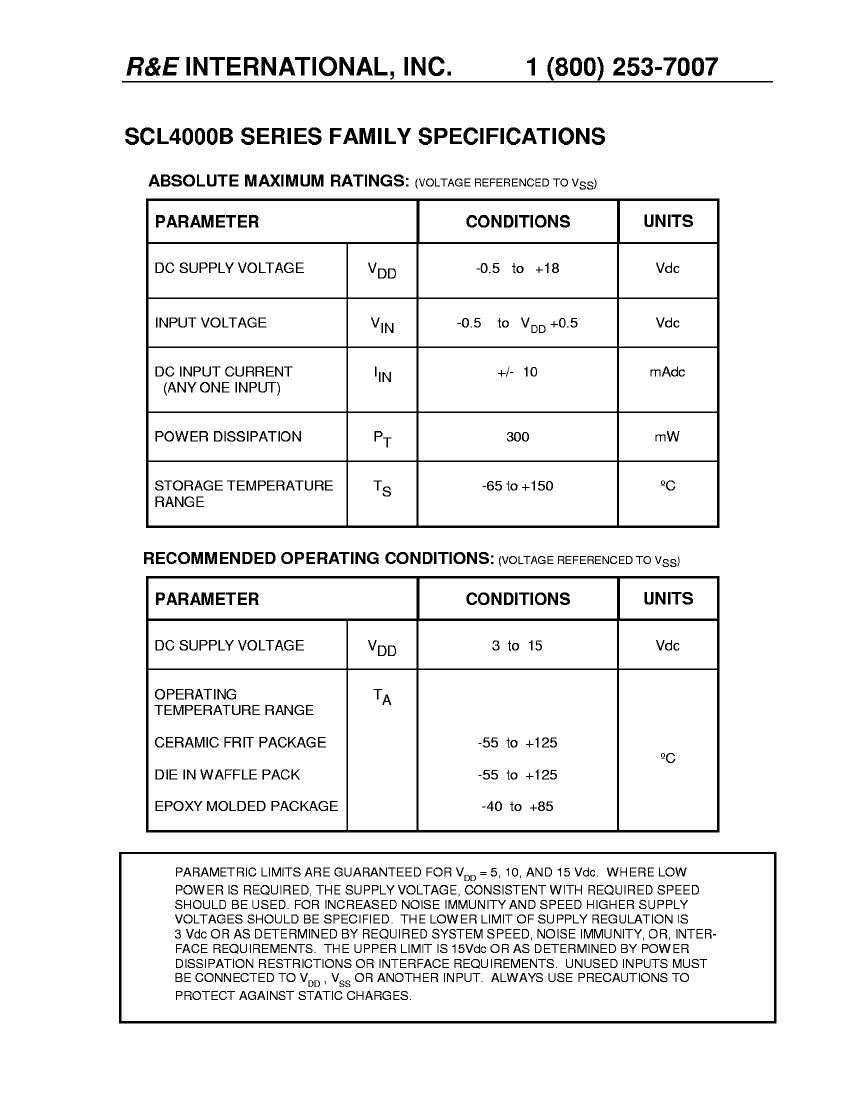

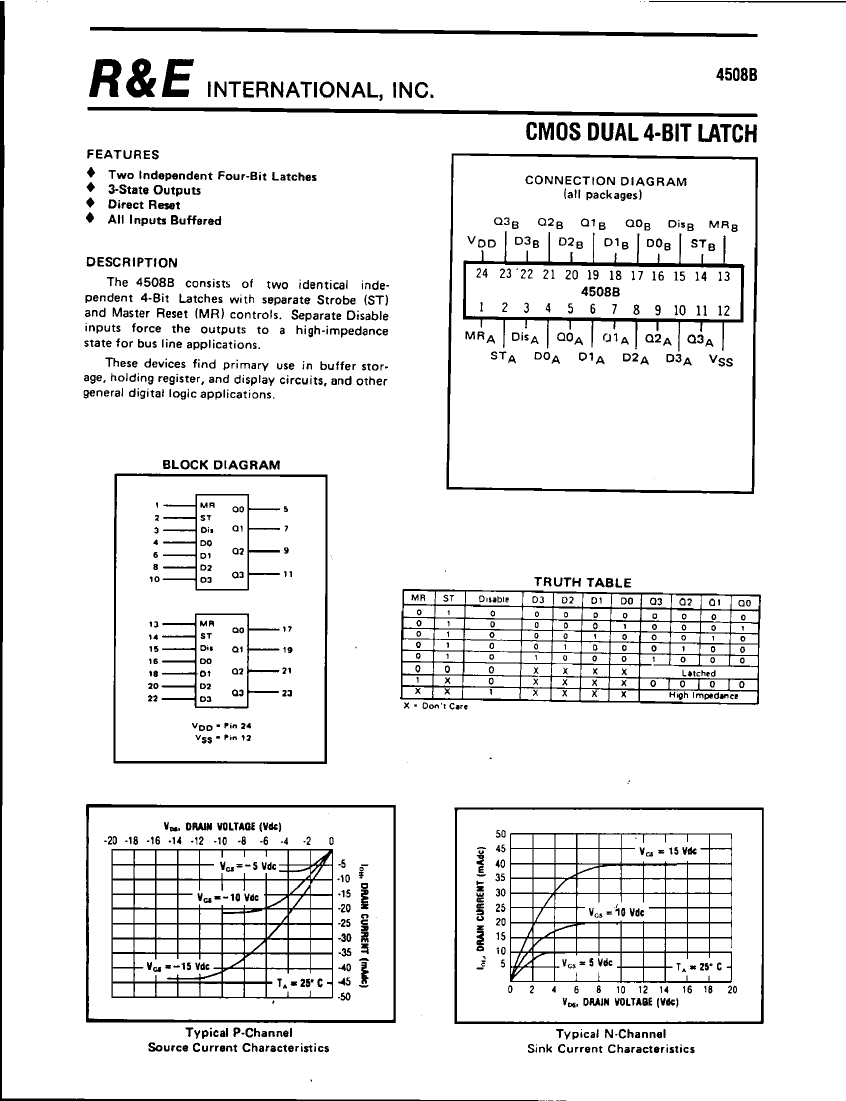

SCL4508BCL Overview

Bus Driver, 4000/14000/40000 Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, CERDIP-24

Parameter Name	Attribute value
Maker	R&E International, Inc.
Parts packaging code	DIP
package instruction	,
Contacts	24
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-GDIP-T24
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

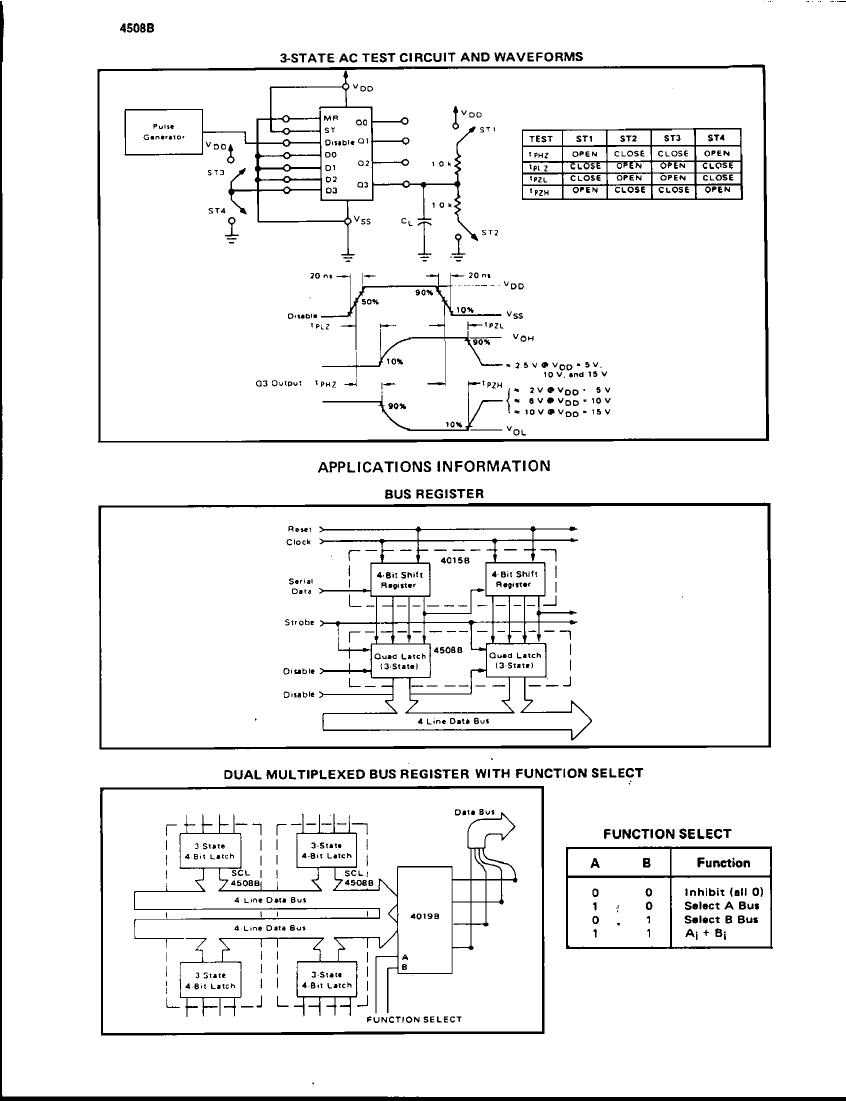

Output characteristics	3-STATE
Output polarity	TRUE

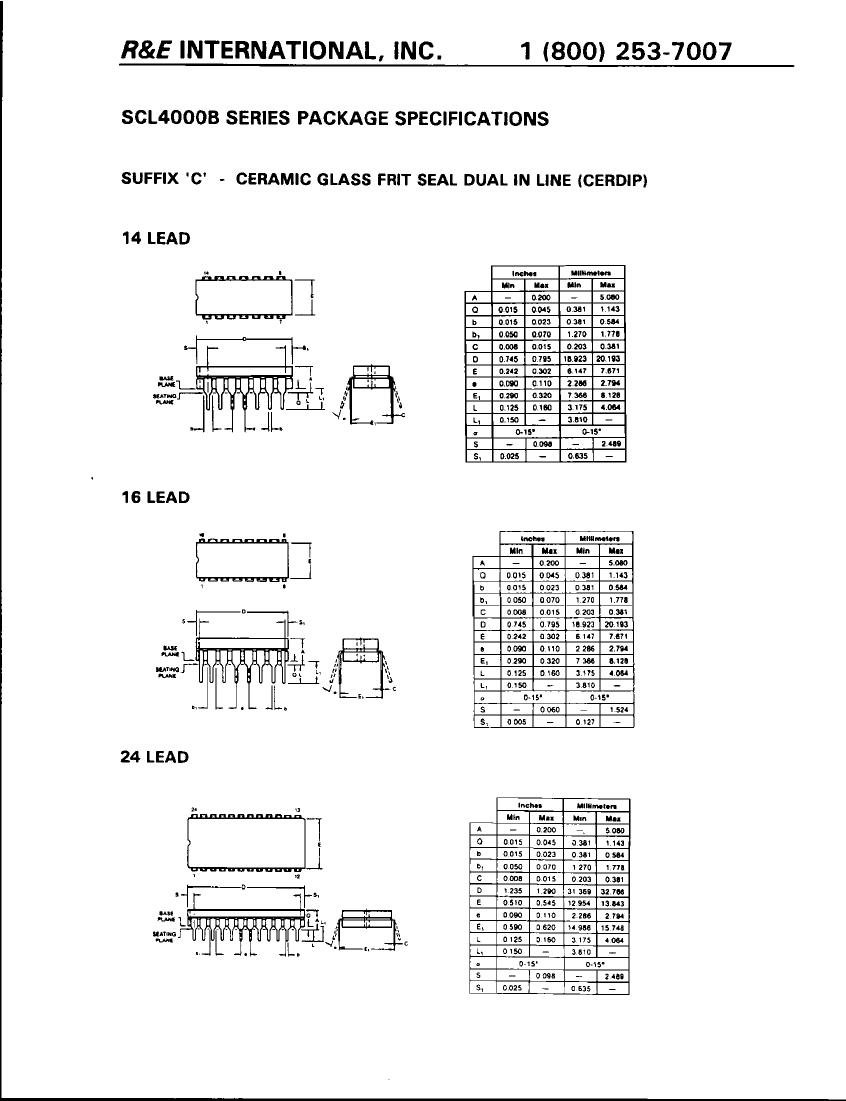

Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE

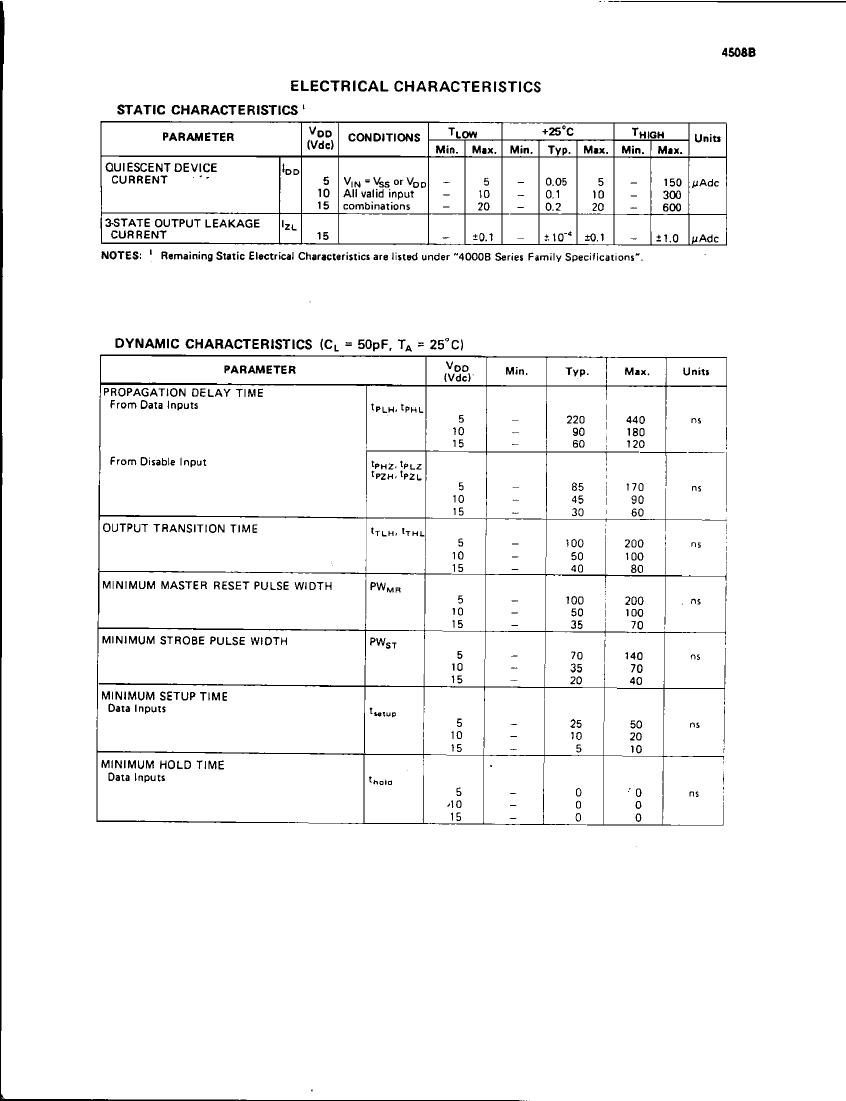

propagation delay (tpd)	440 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	SCL4508BCL	SCL4508BC	SCL4508BC+
Description	Bus Driver, 4000/14000/40000 Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, CERDIP-24	Bus Driver, 4000/14000/40000 Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, CERDIP-24	Bus Driver, 4000/14000/40000 Series, 2-Func, 4-Bit, True Output, CMOS, CDIP24, CERDIP-24
Maker	R&E International, Inc.	R&E International, Inc.	R&E International, Inc.
Parts packaging code	DIP	DIP	DIP
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
series	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	440 ns	440 ns	440 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	15 V	15 V	15 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
