SN74LS163AJDS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS163AJDS

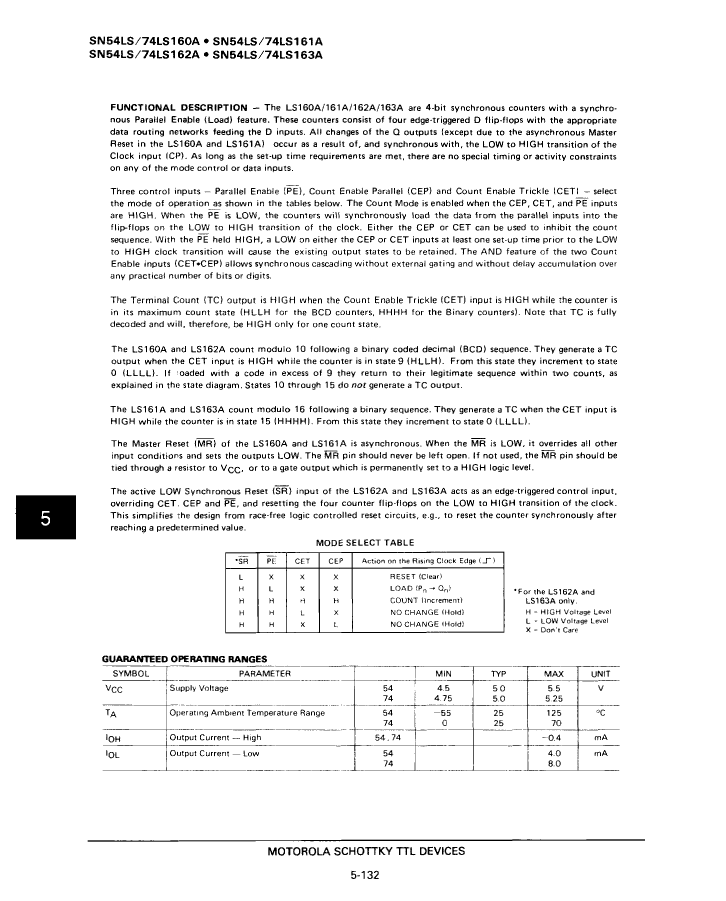

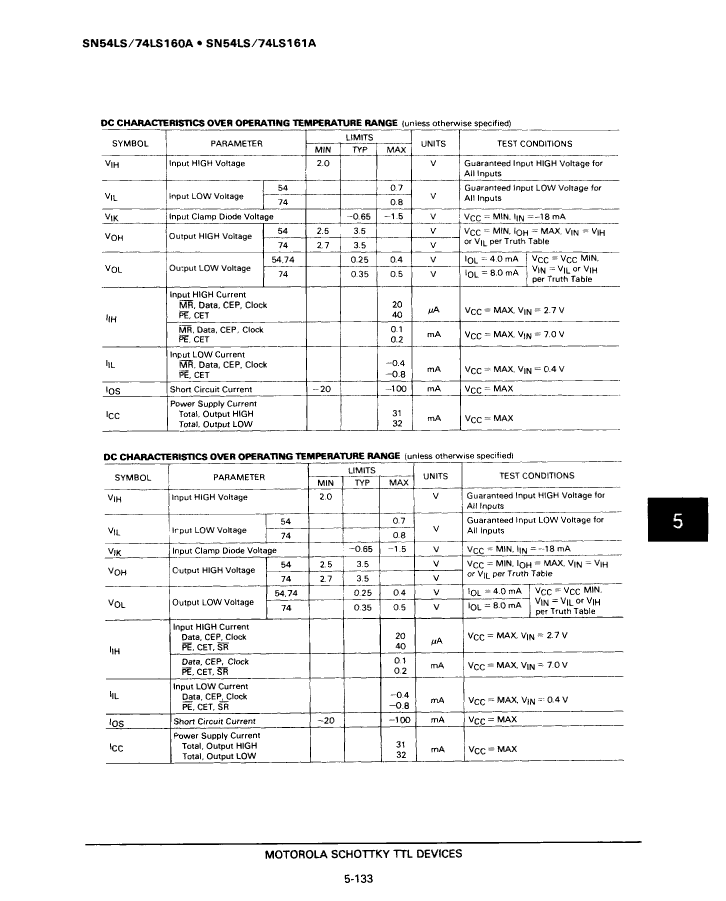

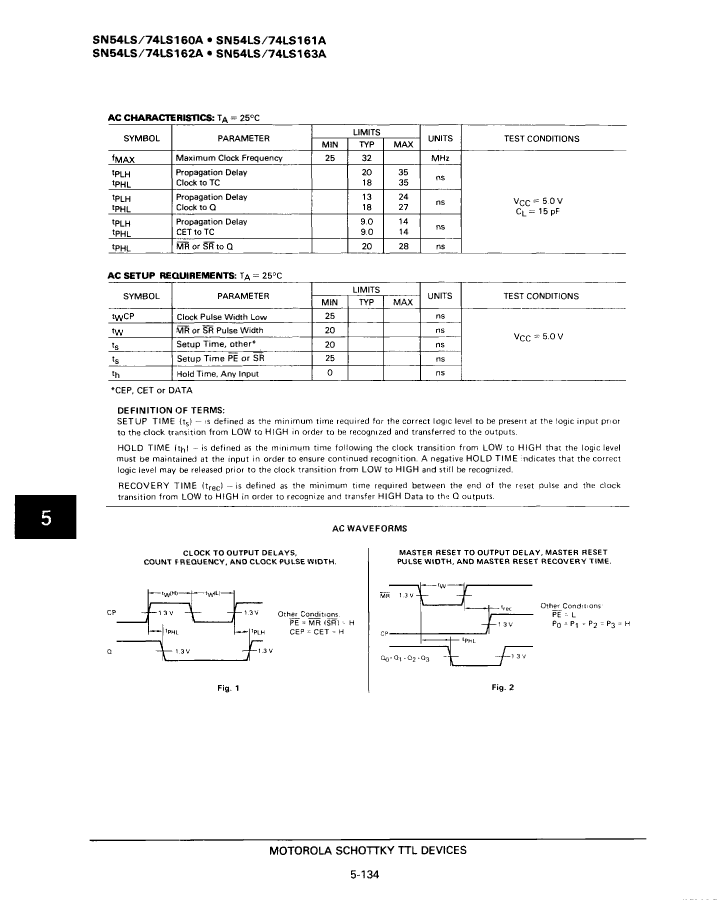

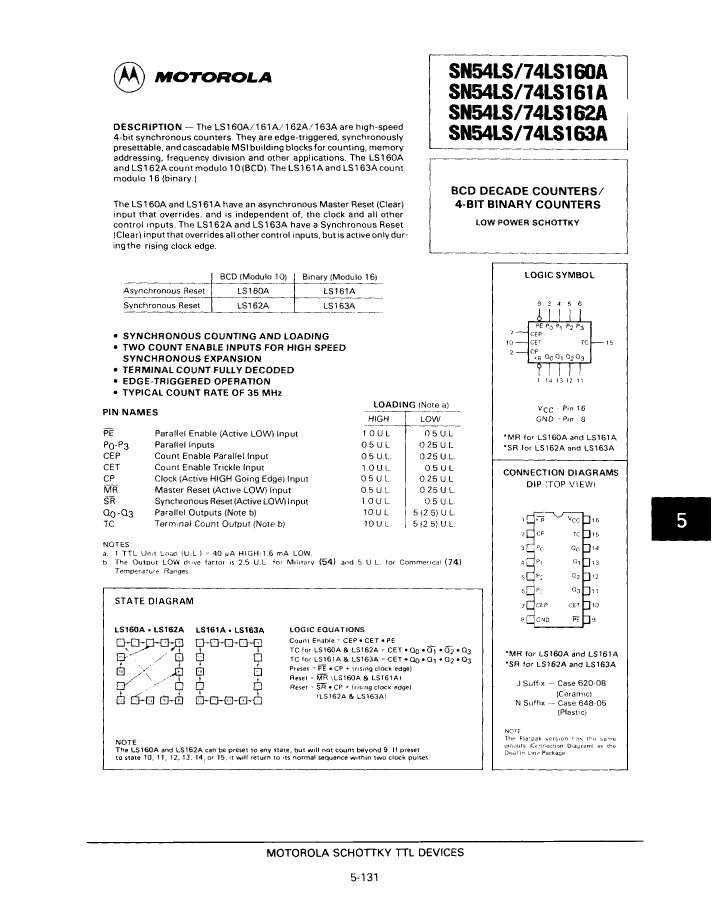

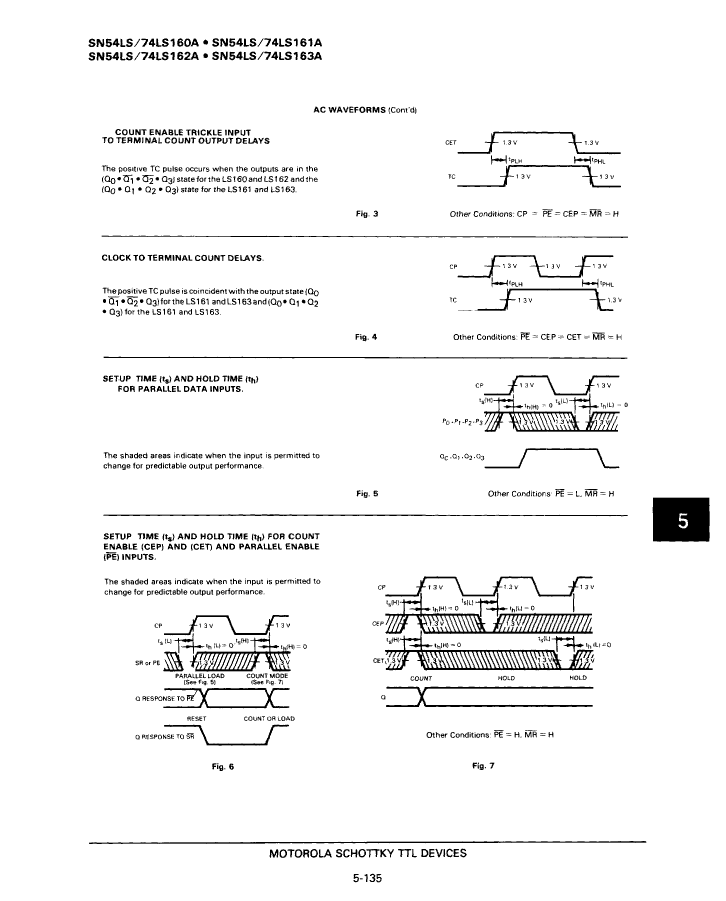

SN74LS163AJDS: DescriptionLS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size187KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS163AJDS Overview

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16

SN74LS163AJDS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	35 MHz

Preview

Download Datasheet

View All

SN74LS163AJDS Related Products

	SN74LS163AJDS	SN74LS160AJD	SN74LS161ANDS	SN74LS160AJDS	SN74LS160ANDS	SN74LS161AJDS	SN74LS162AJDS	SN74LS163AJD
Description	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, PDIP16, PLASTIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Parts packaging code	DIP	DIP	DIP	-	-	-	DIP	DIP
Contacts	16	16	16	-	-	-	16	16
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	-	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP	UP	UP	UP	-	UP	UP
series	LS	LS	LS	LS	LS	-	LS	LS
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-PDIP-T16	R-GDIP-T16	R-PDIP-T16	-	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0
length	19.495 mm	19.495 mm	20.07 mm	19.495 mm	20.07 mm	-	19.495 mm	19.495 mm
Load/preset input	YES	YES	YES	YES	YES	-	YES	YES
Logic integrated circuit type	BINARY COUNTER	DECADE COUNTER	BINARY COUNTER	DECADE COUNTER	DECADE COUNTER	-	DECADE COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	-	4	4
Number of functions	1	1	1	1	1	-	1	1
Number of terminals	16	16	16	16	16	-	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	-	70 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	-	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	-	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
propagation delay (tpd)	27 ns	27 ns	27 ns	27 ns	27 ns	-	27 ns	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	NO	NO	NO	NO	NO	-	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	-	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm	7.62 mm
minfmax	35 MHz	35 MHz	35 MHz	35 MHz	35 MHz	-	35 MHz	35 MHz
Base Number Matches	-	1	1	1	1	1	-	-
