Data sheet
Field bus components
FBCon PA CG 1way Ex
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

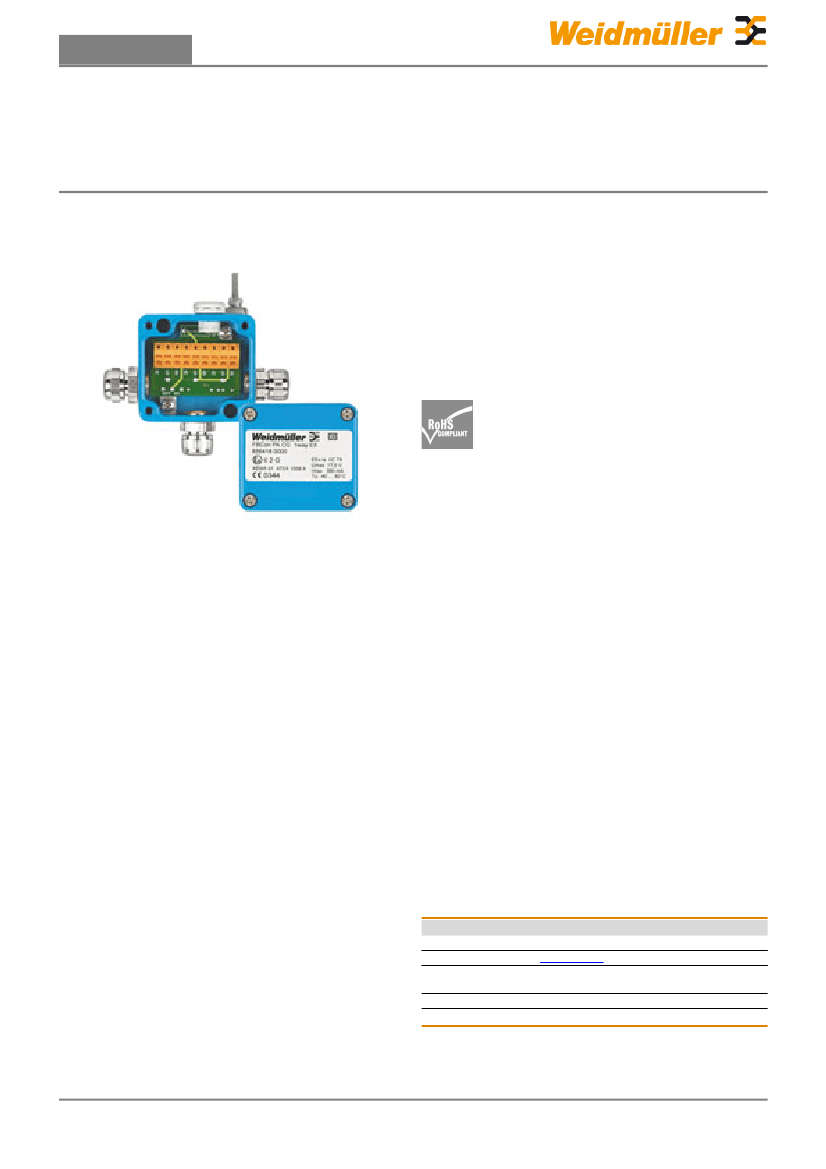

The FBCon Fieldbus distributor is available in the industry
and EEx (ia) version. They are used for coupling from 1 to
8 field devices or sensors.
They are connected via spur lines. The connection to the
spur line can be made with an M12 plug or directly via an
EMC cable gland. Communication and device power feed
are transferred by a common 2-wire line.
The distributors offer the following features respective of
the version:
• Tension-clamp connection system
• Overvoltage protection for the main line
• Current limiter for each branch line
• EMC cable gland
• M12 plug-in connectors
• External earthing contact
• Interruption-free bus operation
• Industrial version
• Bus termination integrated (not EX)
• ATEX explosion-proof version
• Pressure-equalising element
• Protection degrees IP65, IP66, IP67
• Stainless steel versions
• PROFIBUS-PA compatible
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
FBCon PA CG 1way Ex
8564180000
Standard distributor for Ex applications EEx(ia), 1-
way distributor EEx, IP 66
4032248236589
1 pc(s).
Creation date January 3, 2014 6:58:24 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
Field bus components
FBCon PA CG 1way Ex
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
64 mm
37 mm
Width
Net weight
Dimensions and weights
Length
Height
58 mm
261 g
Temperatures
Operating temperature
Storage temperature
-40 °C...+80 °C
-40 °C...+80 °C
Ambient temperature
-40 °C...+80 °C
Technical data
Cable gland
Connection type PE
Contact material
Number of contact sockets
Type of mounting
branch line CG
Spur line with cable gland
CuZnAu
1
surface-mounted
Colour
Contact carrier material
Housing main material
Protection degree
Version
Blue
Brass
Al - Si 12
IP 66
Aluminium enclosure
Ratings IECEx/ATEX
Certificate No. (ATEX)
KEMA01ATEX1058X
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC000214
27-25-02-01
27-24-26-08
UNSPSC
eClass 6.2
26-12-16-03
27-24-26-08
Product information
Descriptive text ordering data
Descriptive text technical data
CG = brass cable gland
PCG = plastic cable gland
FBcon products cannot be used in strongly saline environment.
Approvals
Approvals
ROHS
Conform
Downloads
Declaration of Conformity
K350_07_10.pdf
Creation date January 3, 2014 6:58:24 PM CET
Catalogue status / We reserve the right to make technical changes.
2
