CS9AUK-155.520 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> CS9AUK-155.520

CS9AUK-155.520: DescriptionPECL Output Clock Oscillator, 50MHz Min, 315MHz Max, 155.52MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size53KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CS9AUK-155.520 Overview

PECL Output Clock Oscillator, 50MHz Min, 315MHz Max, 155.52MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

CS9AUK-155.520 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	DILCC6,.2
Reach Compliance Code	compliant
Other features	COMPLEMENTARY OUTPUT; TAPE AND REEL
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Manufacturer's serial number	CS9
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	315 MHz
Minimum operating frequency	50 MHz
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	PECL
Output load	50 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 2.0mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	0.5 ns
Maximum slew rate	80 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

CLOCK

Page 1 of 3

CS9/CSP SERIES: CLOCK OSCILLATOR, PECL, +3.3 VDC or +2.5VDC

DESCRIPTION: A crystal controlled, high frequency, highly stable oscillator, adhering to Positive Emitter

Coupled Logic (PECL) Standards. The output can be Tri-stated to facilitate testing or combined multiple clocks.

The device is contained in a sub-miniature, very low profile, leadless ceramic SMD package with 6 gold contact

pads. This miniature oscillator is ideal for today's automated assembly environments.

APPLICATIONS AND FEATURES:

Infiniband; 10GbE; Network Processors; SOHO Routing; Switches; WAN Interfaces

Common Frequencies: 106.25 MHz; 125 MHz; 150 MHz; 155.52 MHz; 156.25 MHz; 161.1328 MHz

+3.3 VDC or +2.5VDC PECL

Frequency Range from 50.000 to 315 MHz

No multiplication

Miniature Ceramic SMD Package Available on Tape and Reel

Lead Free and ROHS Compliant

ABSOLUTE MAXIMUM RATINGS:

PARAMETER

SYMBOL

T(stg)

Vcc

VALUE

-40…+85

-55…+90

-0.5…+5.0

Vss-0.5…Vcc+0.5

UNIT

°C

VDC

Operating temperature range

Storage temperature range

Supply voltage

Maximum Input Voltage

Maximum Output Voltage

ELECTRICAL PARAMETERS:

PARAMETER

SYMBO

Vcc

Connected between each output and Vcc – 2.0 VDC

min

max

Measured at 50% of Vcc

Measured at 20/80% and 80/20% Vcc Levels

Integrated Phase tji RMS, Fj = 12 kHz…20 MHz

Integrated Phase RMS tii offset frequency 50KHz to

80MHz

Deterministic period Jitter tdj using wavecrest analyz.

Random period Jitter trj using wavecrest analyz.

Peak to Peak Jitter Tp-p using wavecrest analyz.

∆f=10

∆f=1

KHz

∆f=10

KHz

∆f=

>/=100 KHz

Op. Temp., Aging, Load, Supply and Cal. Variations

TEST CONDITIONS

VALUE

50.000 ~ 315.00**

+3.3 or +2.5

±5%

80.0 MAX

PECL

Voh

Vol

tr / tf

Vcc-1.025

Vcc-1.620

40/60 to 60/40 or 45/55 to 55/45

0.5 TYP

0.3 TYP**

0.5 TYP**

0.0TYP **

2.5 TYP **

25 TYP**

-65

-120

-140

-145

Ω

VDC

dBc/Hz

Ppm

VDC

UNIT

MHz

VDC

Nominal Frequency

Supply Voltage

Supply Current

Output Logic Type

Load

Output Voltage Levels

Duty Cycle

Rise / Fall Time

Jitter

Phase Noise typ.

@155.52MHz

Overall Frequency Stability

£(∆f)

∆f/fc

±20, ±25, ±50,

±100

MAX

Pin 1

Output Enabled

High Voltage or No Connect

0.7•Vcc MIN

Output Disabled

Dis

Ground

0.3•Vcc MAX

*1 Test Conditions Unless Stated Otherwise: Nominal Vcc, Nominal Load, +25

±3°C

*2 Frequency Dependent

*3 Not All Stabilities Available With All Temperature Ranges—Please Consult Factory For Availability

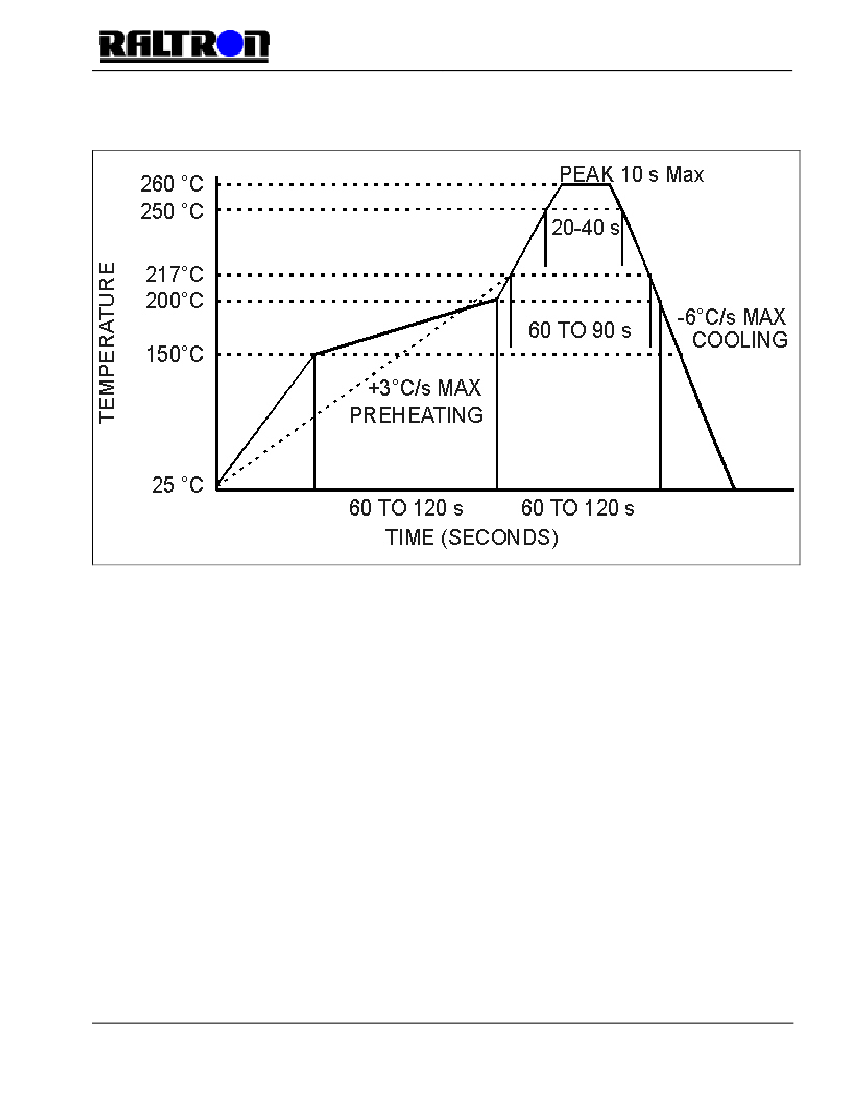

RALTRON ELECTRONICS CORP.

10651 N.W . 19

Miami, Florida 33172

U.S.A.

phone: (305) 593-6033

fax: (305) 594-3973

e-mail: sales@raltron.com

WEB: http://www.raltron.com
