DAMX-3W3S-PO-A197-161 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DAMX-3W3S-PO-A197-161

Preview

DAMX-3W3S-PO-A197-161: DescriptionD Subminiature Connector, 3 Contact(s), Female, Press Fit Terminal,; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAMX-3W3S-PO-A197-161 Overview

D Subminiature Connector, 3 Contact(s), Female, Press Fit Terminal,

DAMX-3W3S-PO-A197-161 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	DAMX
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

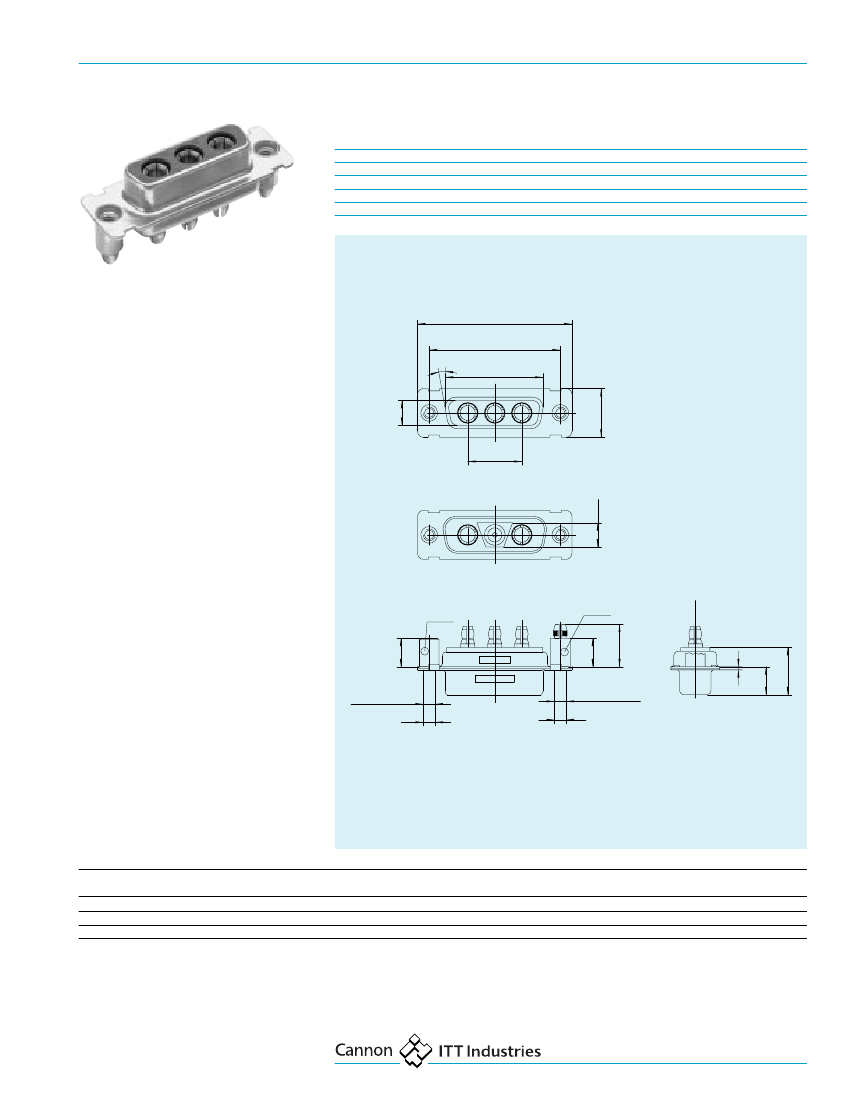

D Subminiature

40 A High Power, Pressfit Termination

Socket

Part Numbers

Boardlock M3

DAMX-3W3S-PO-A197-161

DAMX-3WK3S-PO-A197-161

DBMX-5W5S-PO-A197-161

DCMX-8W8S-PO-A197-161

Combo D

®

/European Version

Boardlock 4-40 UNC

DAME3W3S-PO-A197-161

DAME3WK3S-PO-A197-161

DBME5W5S-PO-A197-161

DCME8W8S-PO-A197-161

Stand-off M3

DAMX-3W3S-PO-A197-183

DAMX-3WK3S-PO-A197-183

DBMX-5W5S-PO-A197-183

DCMX-8W8S-PO-A197-183

Stand-off 4-40

DAME-3W3S-PO-A197-183

DAME-3WK3S-PO-A197-183

DBME-5W5S-PO-A197-183

DCME-8W8S-PO-A197-183

q

For contact cavity arrangements, see page 53.

For pcb hole pattern, see page 85.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

For press in tooling see page 90.

D

A

C

10°

B

A3

A2

A1

E

ITT

Cannon

3W3S

3W3

13,72

A1

A2

A3

6,15

3WK3

-183

-161

10,75

7,2

L

4-40UNC-3B

M3

E

X

E

X

4-40UNC-3B

M3

Dimensions

Shell

size

A

±

0,38

B

±

0,13

C

±

0,13

D

±

0,13

±

0,38

12,55

E

F

±

0,25

10,9

L

+ 0,2

W

±

0,4

DA

DB

DC

39,15

53,05

69,3

24,65

38,4

54,85

33,3

47,05

63,5

7,9

0,8

6,95

W

F

31
