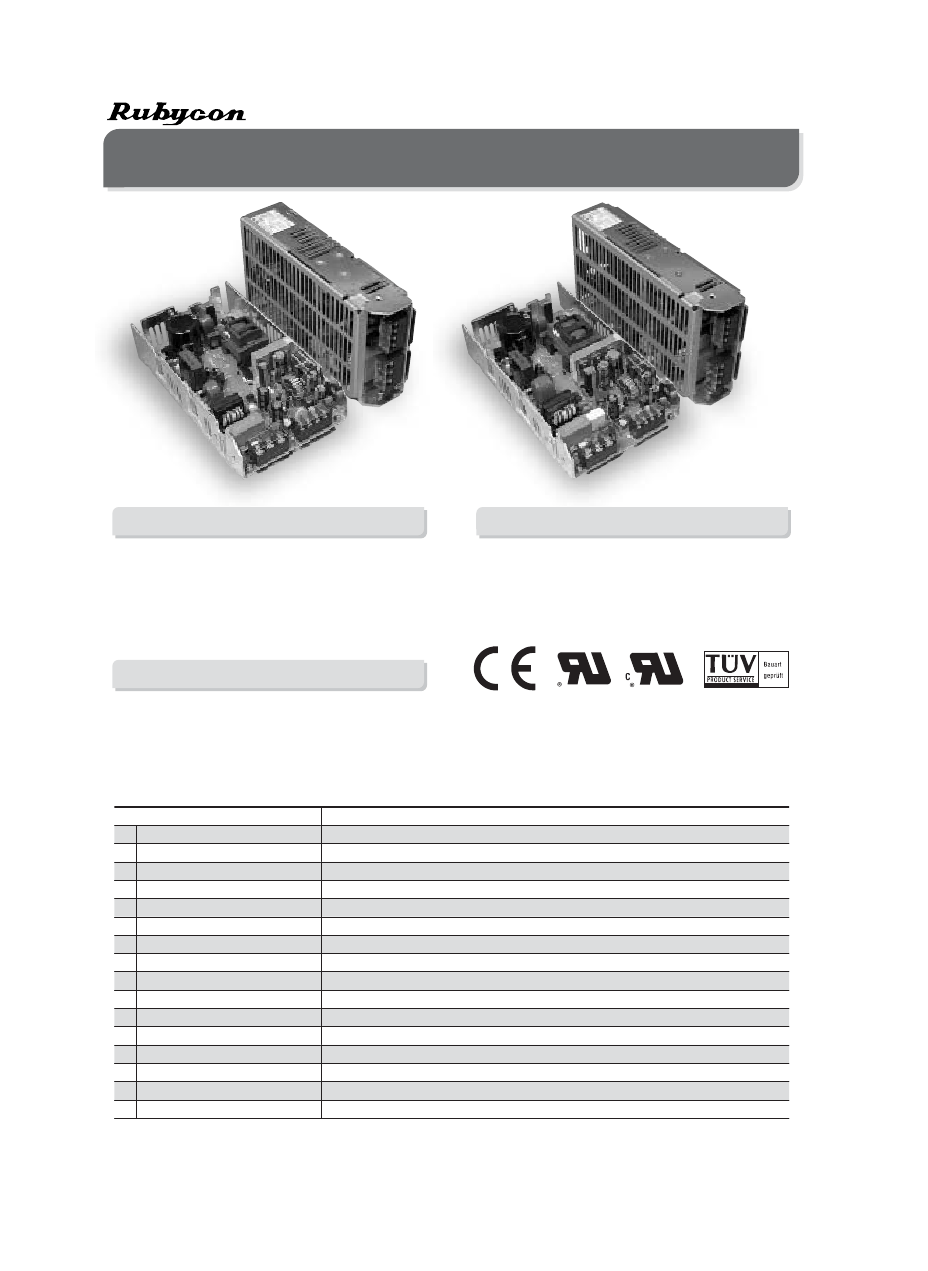

RDW
SERIES
RDW 100
RDW 150
FEATURES
* Resonant switchers, power factor correction and main
converter
* Power factor correction up to 0.99, meeting IEC61000
-3-2(EN61000-3-2)
* 85 to 264VAC universal input
* High efficiency up to 85%
* Low EMI, meeting FCC B, CISPR B
SAFETY STANDARDS
UL1950 Recognized
CSA22.2 No.950 Certified (cUL)
EN60950 (TUV Certified)
CE mark (LVD only)
APPLICATIONS
*Data/information processing equipment
*FA control equipment
*Measuring, inspection and testing equipment
*Communication equipment
*Optical equipment
RDW SERIES GENERAL SPECIFICATIONS
ITEM
1
2
3
4
5
6
7
8
9
Input voltage range
Input frequency range
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Cooling
Electric strength voltages
Insulation resistance
85V ~ 264VAC
47Hz ~ 63Hz
-10 ~ 60
o
C (Refer to Output derating)
30 ~ 90%RH (Non condensing)
-30 ~ 85
o
C
10~95%RH (Non condensing)
Convection or forced air cooling (Refer to Output derating)
Input - Output 3000VAC 1 minute , Input - FG 1500VAC 1 minute , Output - FG 500VAC 1 minute
100MΩ MIN DC500V 25
o
C 70%RH
0.5mA MAX (240VAC, 50Hz)
10 ~ 55Hz 2G (3 directions each 1 hour)
20 ms 20G (3 directions each 3 times)
UL1950, CSA950(cUL), EN60950(TUV) Approvals
Meeting FCC Class B, EN55022 Class B, VCCI Class B
Meeting EN61000-3-2
Meeting EN61000-4-5 Level 3 / 4KV(CM), 2KV(DM)
Input - Output, Input - FG, Output - FG
10 Leakage current
11 Vibration
12 Shock
13 Safety standards
14 Conduction noise
15 Harmonic distortion
16 Mains surge
RDW100
RDW100 SPECIFICATIONS
ITEM
1
2
3
4
5
6
7
8
9
Rated output DC voltage
Rated output DC current
Maximum output power
Input current
Power factor
Inrush current
Initial setting accuracy
Maximum ripple noise
RDW100-52
(1)
5V
4A
98W
*1 1.3A (100VAC), 0.6A (230VAC)
*1 0.99 TYP (100VAC), 0.97 TYP (230VAC)
*2 21Apk MAX (120VAC), 42Apk MAX (240VAC)
+
*1 -0.5% MAX
50mVpp(5V load), 70mVpp(12V, 24V load)
+
-0.1%
+
+
-0.5%(5V load), -0.2%(12V, 24V load)
+
-3% at line, load, time, temperature
*1 20ms MiN after last AC line peak
*3 more than 105% A of rated current
*4 5.75V ~ (Detected 5V output)
(2) 12V
6.5A
(1)
5V
4A
104W
SPECIFICATIONS
RDW100-54
(2) 24V
3.5A
Efficiency(120/230VAC,TYP) *1 80.3% / 80.6%
81.6% / 83.4%
10 Maximum line regulation
11 Maximum load regulation
12 Voltage tolerance ratio
13 Hold-up time
14 Over current protection
15 Over voltage protection

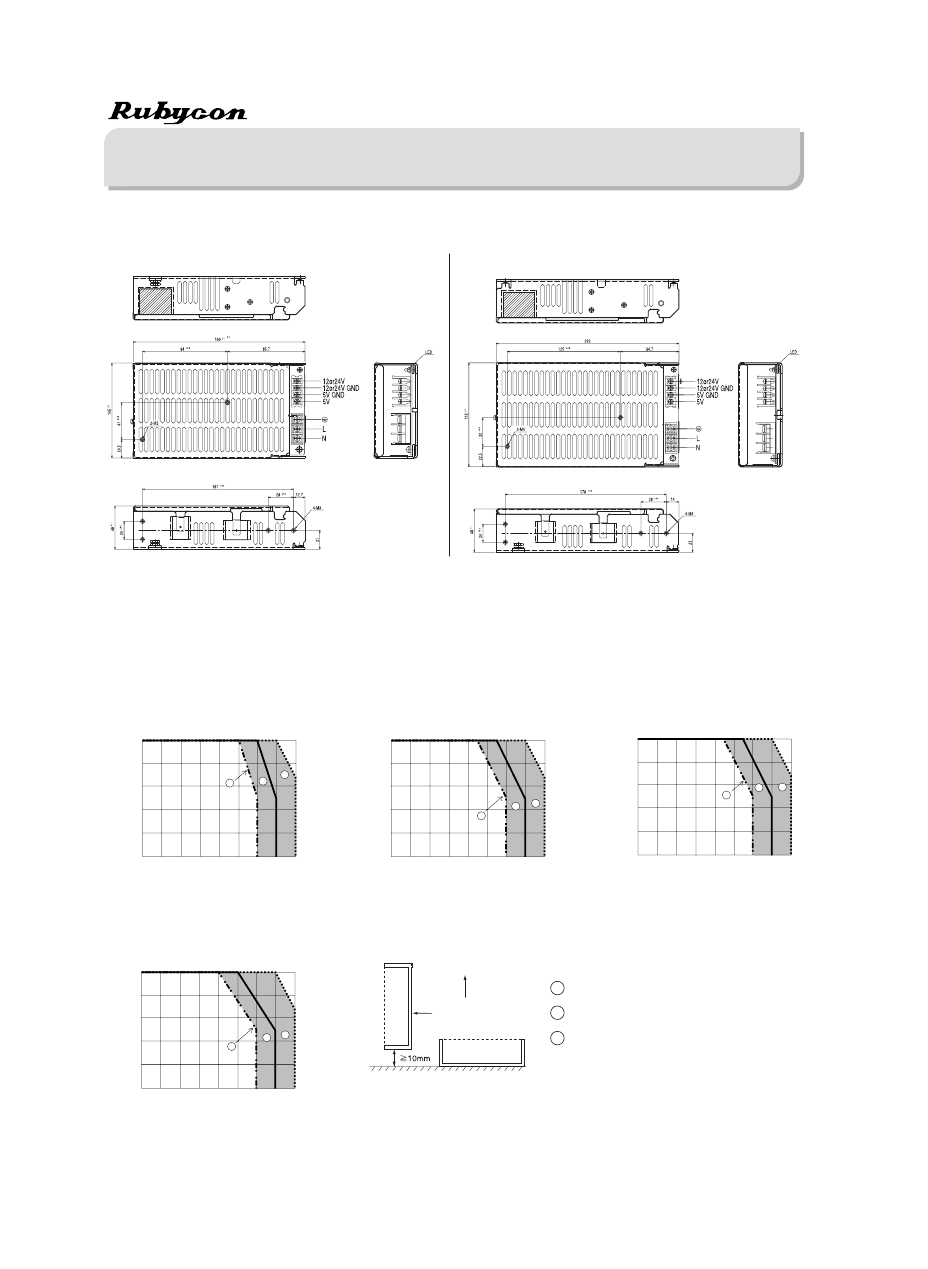

16 Dimensions
17 Weight
105(W) 190(D) 48(H) mm / 4.13"(W) 7.48"(D) 1.89"(H)
740g / 1.63lb. TYP
RDW150
RDW150 SPECIFICATIONS
ITEM
1
2
3
4
5
6
7
8
9
Rated output DC voltage
Rated output DC current
Maximum output power
Input current
Power factor
Inrush current
Initial setting accuracy
Maximum ripple noise
RDW150-52
(1)
5V
14A
142W
*1 2.0A (100VAC), 0.9A (230VAC)
*1 0.99 TYP (100VAC), 0.96 TYP (230VAC)
*2 21Apk MAX (120VAC), 42Apk MAX (240VAC)
+
*1 -0.5% MAX
50mVpp(5V load), 70mVpp(12V, 24V load)
+
-0.1%
+
+
-0.7%(5V load), -0.5%(12V, 24V load)
+
-3% at line, load, time, temperature
*1 20ms MiN after last AC line peak
*3 more than 105% A of rated current
*4 5.75V ~ (Detected 5V output)
(2) 12V
6A
(1)
5V
14A
SPECIFICATIONS
RDW150-54
(2) 24V
6A
160W
83.5% / 85.3%
Efficiency(120/230VAC,TYP) *1 81.5% / 83.6%
10 Maximum line regulation
11 Maximum load regulation
12 Voltage tolerance ratio
13 Hold-up time
14 Over current protection
15 Over voltage protection
16 Dimensions
17 Weight
115(W) 202(D) 48(H) mm / 4.53"(W) 7.95"(D) 1.89"(H)
900g / 1.98lb. TYP
NOTES
*1 When maximum output is worked
*2 When cold start works with rated voltage at 25
o
C ambient temperature
*3 Recovers automatically within 3 seconds, after on input again
*4 Recovers on input again
