Ethernet & High Speed Networks
Quadrax Contact
up to Cat6
MIL-DTL-38999/Arinc 600/EN2997/EN3646
Quadrax Technology
Quadrax Contact
Presentation
Today’s technology for Aeronautic and Military equipment is more and more complex, requiring the management of an increasing flow of
information at greater speeds.
In response to this need, SOURIAU offers a wide range of electrical and fiber optic solutions for high speed networks in
harsh environments. These solutions can handle data speeds from several Mbit/s up to several Gbit/s using a wide array of
communication protocols (Ethernet, ATM...).
Quadrax is the best electrical solution for: High speed electrical network applications, excellent network performances, crosstalk, return loss,
high density of links, harsh environment use...
Typical network applications are 100Mbit/s Ethernet, Gigabit Ethernet, IEEE 1
394, Fibre Channel, ...

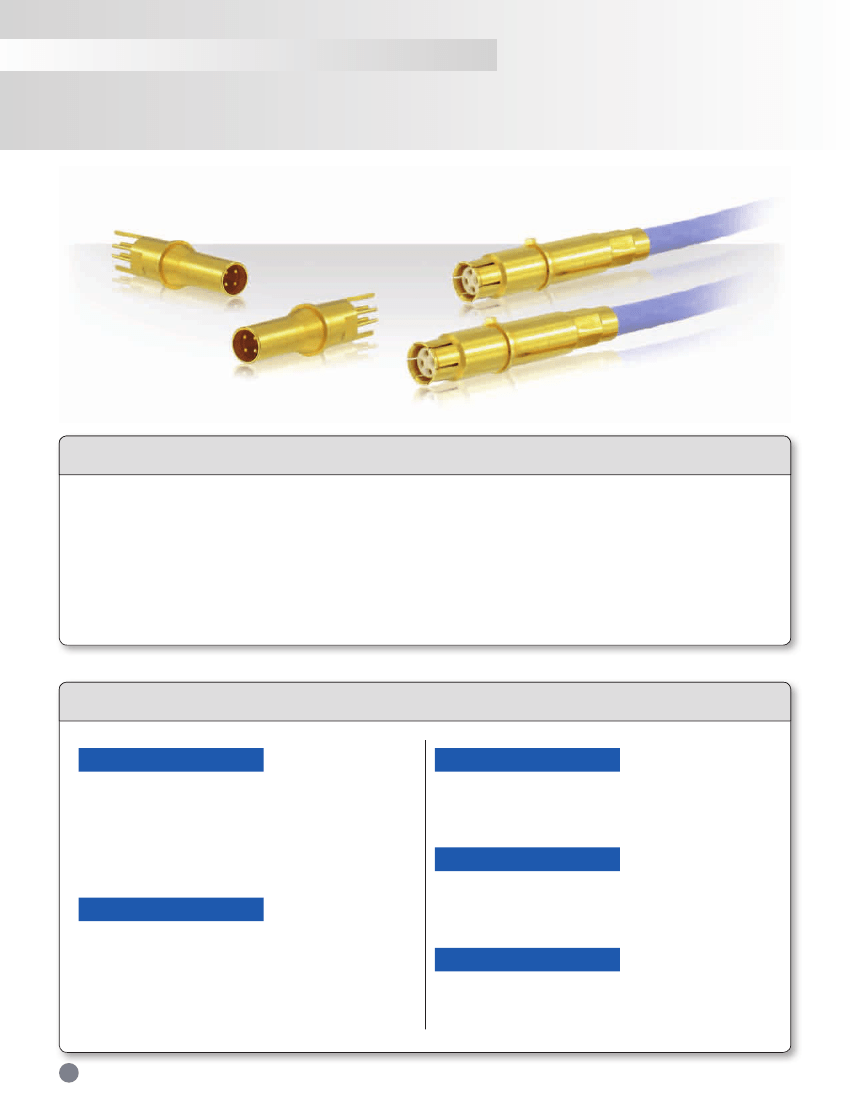

Contents
Quadrax contact
• Quadrax contact overview
......................................... 03
• Technical features
......................................................... 05
• Ordering information
.................................................... 06
• Sealing boot
..................................................................... 07
• Quadrax tools
.................................................................. 07
• Recommanded cable
................................................... 07
MIL-DTL-38999
• Technical features
......................................................... 09
• Contact layouts
............................................................... 09
• Ordering information
.................................................... 09
EN2997
• Technical features
......................................................... 10
• Contact layouts
............................................................... 10
• Ordering information
.................................................... 10
Arinc 600
• Technical features
......................................................... 08
• Contact layouts
............................................................... 08
• Ordering information
.................................................... 08
EN3646
• Technical features
.......................................................... 1
1
• Contact layouts
................................................................ 1
1
• Ordering information
..................................................... 1
1
2
© 201 - SOURIAU
3
Quadrax Technology
Quadrax Contact

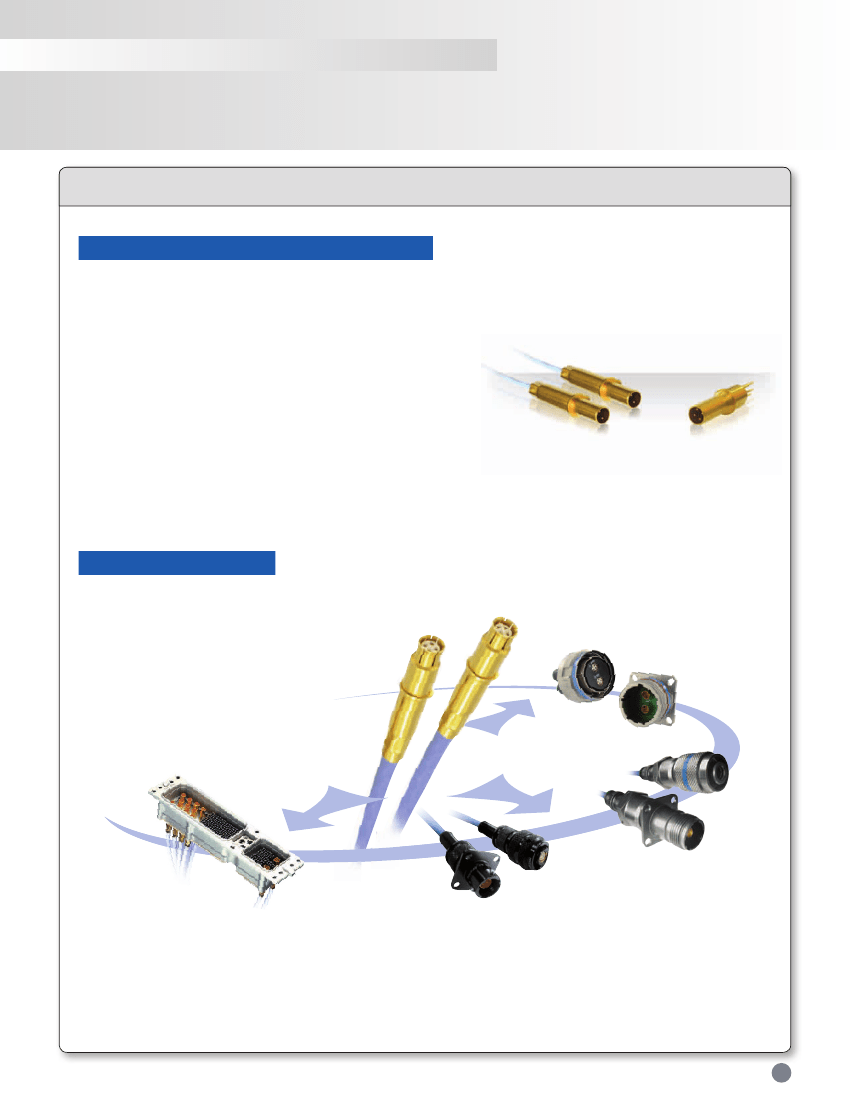

Quadrax contact overview
An optimized high speed electrical contact
►
Size 8
outer contact with 4 strategically spaced size 24 inner contacts
forming two
1
00Ω
or
150Ω
matched impedance pairs with excellent 360° shielding.
►
Equivalent to
two twinax contacts
with:
- better performance (reduced cross talk)
- shorter cabling time
- compact profile
- lighter weight
=
►
One contact provides a
full duplex 1 Mbps ethernet
link,
00
and fulfills the ISO/IEC 1
1801
category 6
requirements.
A versatile technology
►
Fit the major harsh environment
MilAero connectors:
►
99
M IL-DTL-389
/ E N3645
►
E N2997
►
Arinc 600
►
E N3646
►
Ground connection
of the cable braid to the connector shell on:
- All Arinc 600 layouts
- MIL-DTL-38999 Series I & III - EN3645
- EN2997
- EN3646
© 201 - SOURIAU
3
3
Quadrax Technology
Quadrax Contact
Quadrax contact overview

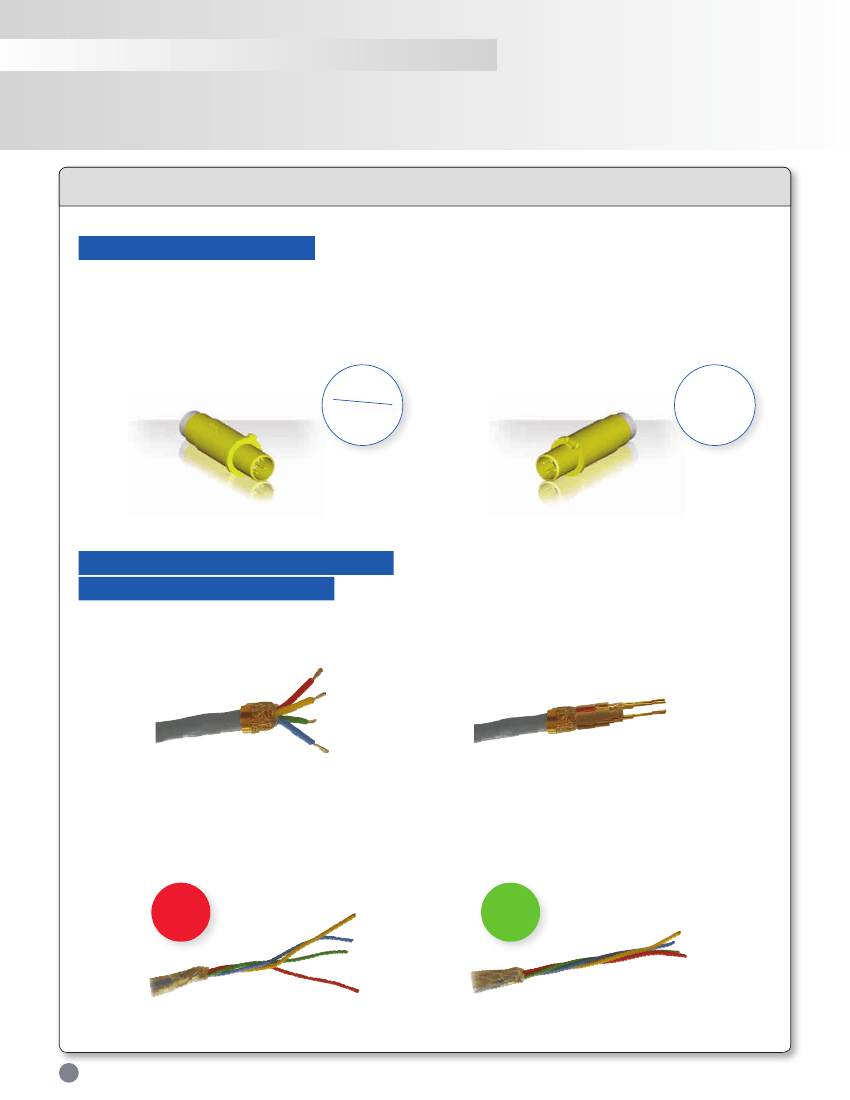

A standardized technology
►
2 designs for 2 standards:
-
Protruding alignment key
for Arinc 600, EN2997, EN3646
AB S
Qualified
AR INC 664
compliant
-
In-line alignment key
for MIL-DTL-38999
E N31 5
5
Qualified
Superior signal integrity performance
thanks to an innovative insert
►
Insert design enabling radial insertion of inner crimped contacts.
►
Radial insertion of contacts in insert enabling minimum untwisting of the cable for wiring operation.
►
Minimum untwisting of the cable = improved cross talk performance.
BAD
GOOD
4
© 201 - SOURIAU
3
Quadrax Technology
Quadrax Contact

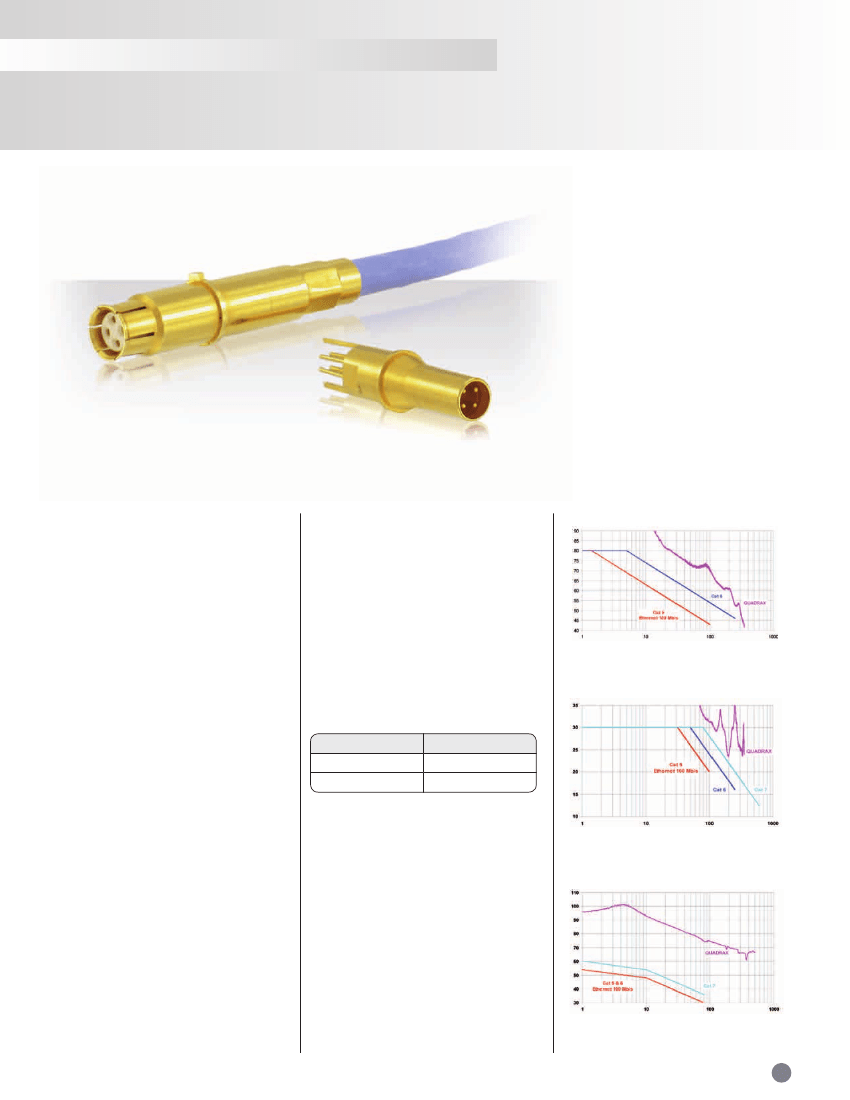

Description
• Front and rear removable versions available.
• Crimp and PC tail versions available.
• Standard #8 cavity insertion and removal
tools.
• Ground connection of the cable braid to the
shell possible through the external shell of the
# 8 contact.
• Compatible with star quad cable.
• Characteristic impedance of 100 Ohms.
Technical features
Mechanical
• Operating temperature:
-65°C up to 200°C
stainless steel (class K, E, Y and YE)
• Inner contact:
copper alloy
• Contact body:
copper alloy
• Insulator:
thermoplastic resin
• Contact plating:
gold over nickel
Electrical
• ISO/IEC 1 801 category 6 compliant:
1
next (cross talk): > 46 db at 250 MHz
return loss: > 16 db at 250 MHz
shield effectiveness: > 36 db at 80 MHz
• Contact to shell continuity:
< 10 mΩ (ARINC 600)
• Contact resistance (low level):
initial 1 mΩ
5
after tests 30 mΩ
• Dielectric withstanding voltage:
Altitude
sea level
21 000 m
• Insulation resistance:
at ambient temperature:
> 5000 mΩ
at high temperature:
> 1000 mΩ
• #24 contact cable size acceptance:
AWG 22 to AWG 26
Service I
500 Vrms
1 Vrms
25
Next (dB)
Frequency (MHz)
Return loss (dB)
Frequency (MHz)
Shield effectiveness (dB)
Frequency (MHz)
© 201 - SOURIAU
3
5
