TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: NYLON 46
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 3.00MM
PIN 1
ENVIRONMENTAL
OPERATING TEMPERATURE: -25 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:5A
WORKING VOLTAGE: 250V AC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN
CONTACT RESISTANCE: 10 mOHM MAX
STANDARD
CERTIFIED: E323964 / MODEL NUMBER 662-R
SOLDERING
JEDEC LEAD FREE REFLOW PROCESS

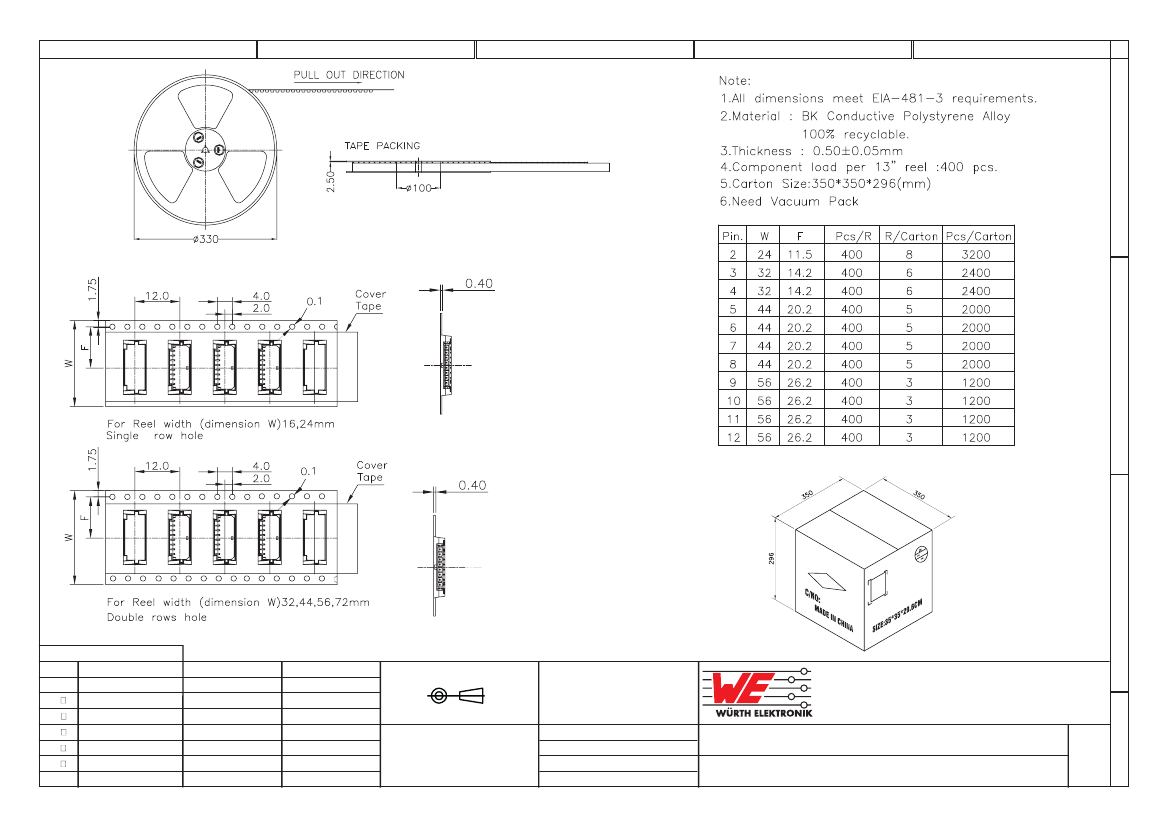

PACKAGING
TAPE & REEL

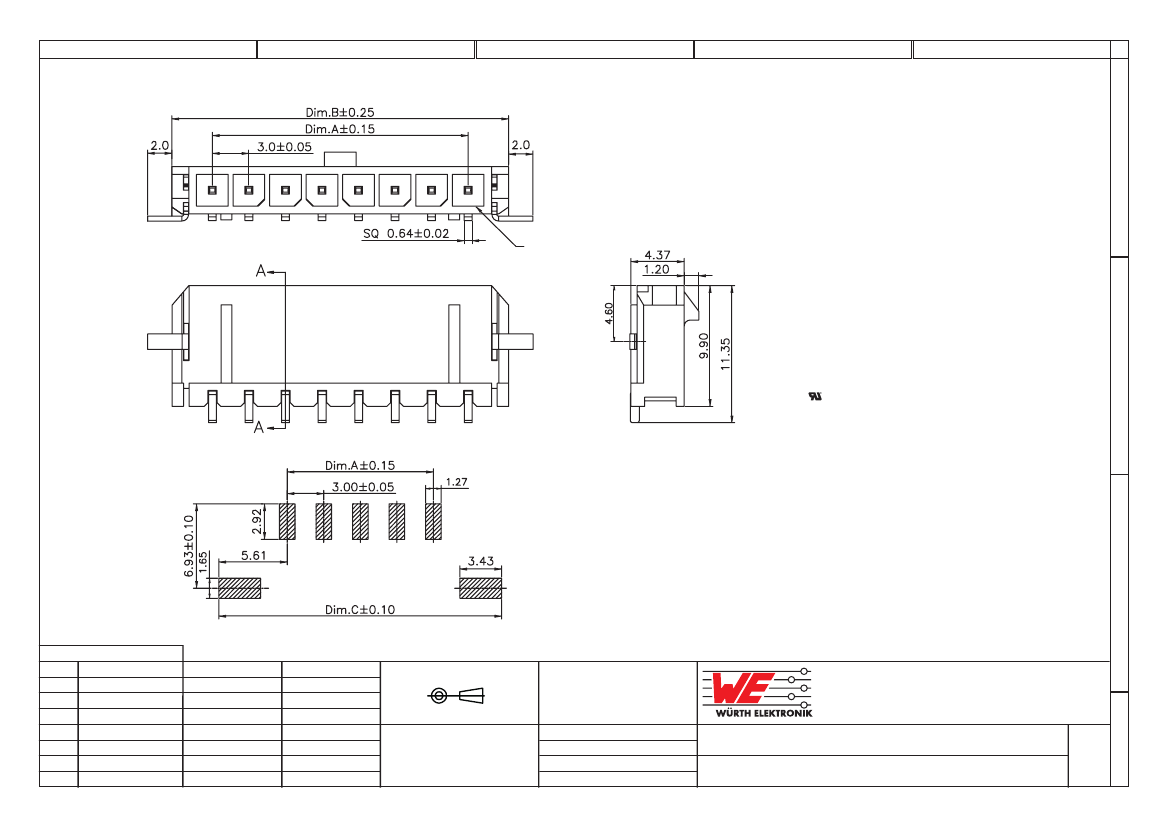

DIMENSION
A = 3.00 x (NB. PIN - 1)
B = 3.00 x (NB. PIN) + 3.65
C = 3.00 x (NB. PIN) + 8.20
A
B
C
PCB LAYOUT - COMPONENT VIEW
PROJECTION:
22-FEB-12
17-NOV-10
18-NOV-09
23-AVR-09
05-MAR-09
DATE
DESCRIPTION
PINNING
STANDARD
PACKAGING
PDF
FILE
GG
GG
JP
JC
JP
BY
APPROVAL: RJ
SCALE:
SHEET: 1/2
DRAW: MIKE
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: 3.00MM SMD MALE SINGLE ROW ANGLED HEADER SMT
SOLDER TAB
WERI PART NO: 662 1xx 145 021
SIZE
RoHS Compliant
G
F
E
D
C
B
A
REV
A4
D
