DD-50SF-T-N-A3: DescriptionD Subminiature Connector, 50 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

DD-50SF-T-N-A3 Overview

D Subminiature Connector, 50 Contact(s), Female, Solder Terminal

DD-50SF-T-N-A3 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	D-SUB
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	5/D
Termination type	SOLDER
Total number of contacts	50

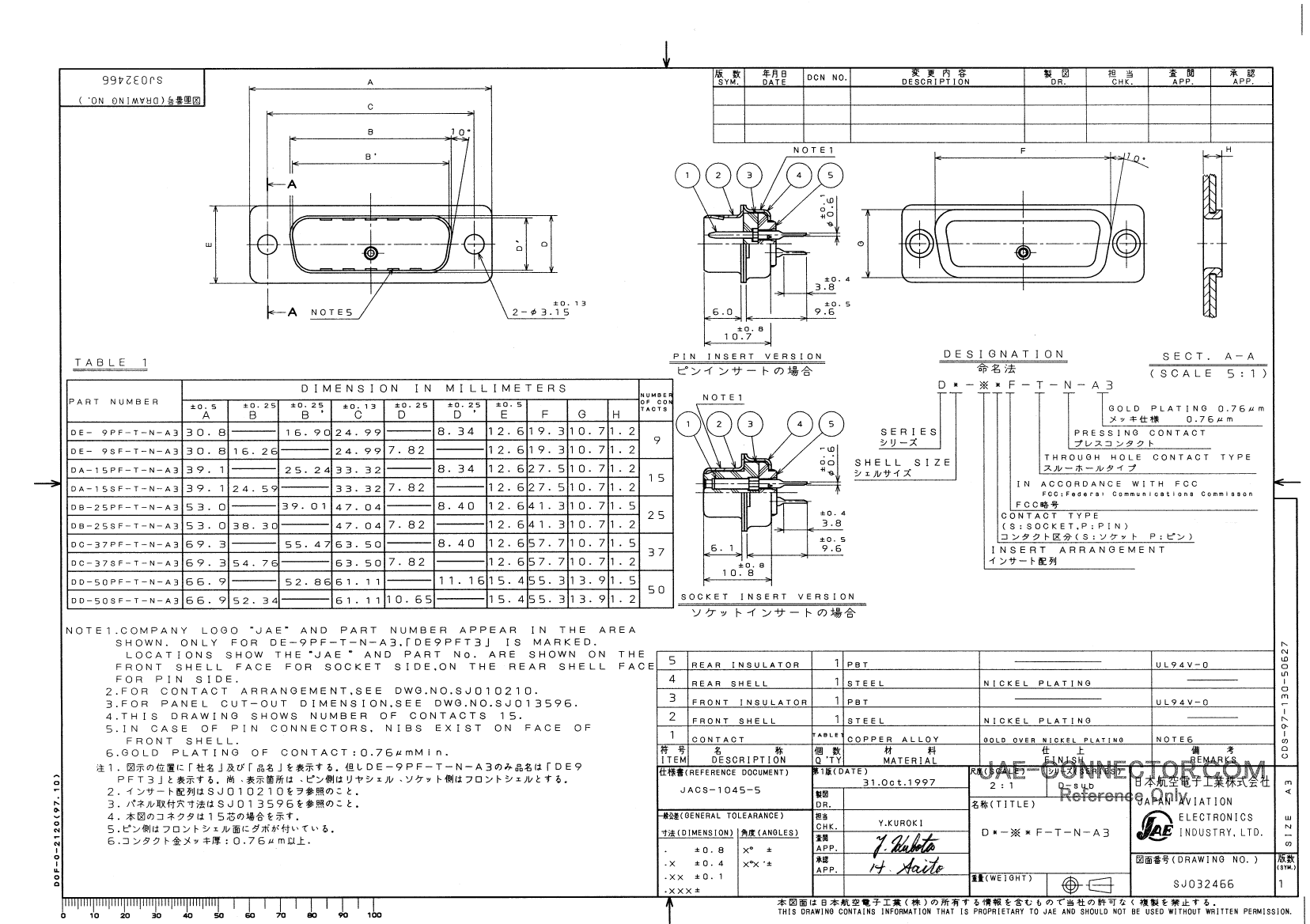

DD-50SF-T-N-A3 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DD-50SF-T-N-A3 Related Products

	DD-50SF-T-N-A3	DB-25SF-T-N-A3	DC-37PF-T-N-A3	DC-37SF-T-N-A3	DD-50PF-T-N-A3	DE-9PF-T-N-A3	DE-9SF-T-N-A3	DA-15PF-T-N-A3
Description	D Subminiature Connector, 50 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal	D Subminiature Connector, 50 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	5/D	3/B	4/C	4/C	5/D	1/E	1/E	2/A
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	25	37	37	50	9	9	15
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Contact completed and terminated	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	-
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	-
Manufacturer's serial number	D-SUB	-	D-SUB	D-SUB	D-SUB	D-SUB	D-SUB	-
