VI-MUZ-EW Overview

1-OUTPUT AC-DC REG PWR SUPPLY MODULE

VI-MUZ-EW Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	VICOR
Parts packaging code	MODULE
package instruction	,
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	ALSO HAVE A 80 TO 264 AC INPUT VOLTAGE
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	132 V
Minimum input voltage	90 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X10
JESD-609 code	e0
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	85 °C
Minimum operating temperature
Maximum output voltage	2.2 V
Minimum output voltage	1 V
Nominal output voltage	2 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	40 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

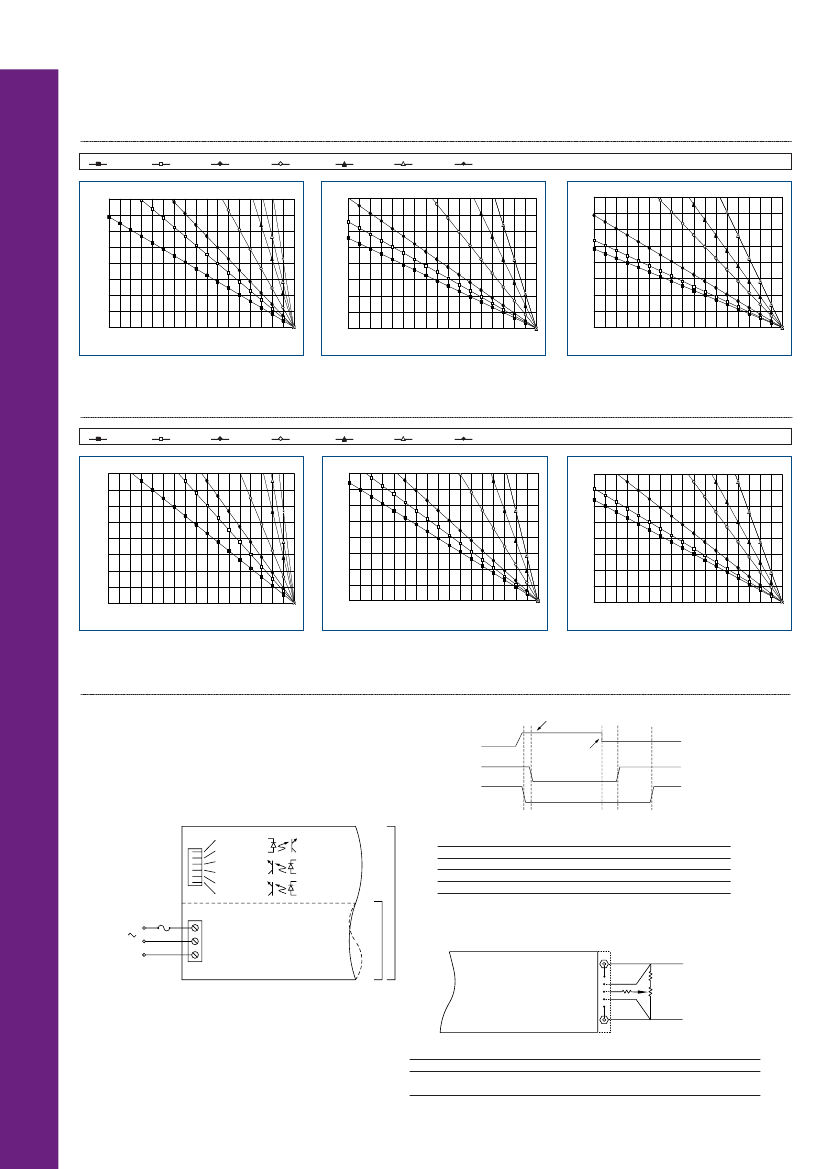

F l a t PA C

Product Highlights

™

50 to 600 W

Autoranging

AC-DC Switchers

If you’re looking for the convenience

of a complete, low profile, agency-

approved switching power supply,

look no further. The FlatPAC combines

Vicor’s workhorse VI-200 family of

DC-DC converters with a modular

package and front-end subassembly to

provide from 50 to 600 W of output

power from one to three outputs.

A flat plate hea tsink for use in

conduction cooled applications may be

specified as an alternate to the standard

finned version by adding “CC” to the

end of the model number.

Vicor’s FlatPAC is also available with

a current controlled output using

BatMod converter modules of 12, 24,

or 48 Vdc outputs. This option is

specified by appending “BM” or “BC”

(for conduction cooled versions) to the

end of the FlatPAC model number.

The FlatPAC’s contemporary design

allows us to configure your order

quickly and provide rapid turnaround

on standard models. It is truly a

complete power solution, enabling

you to spend more time designing your

system and less time worrying about

how to power it.

Features

➤

Microcontroller architecture

➤

Inputs: 115/230 Vac autoranging

➤

Meets FCC Part 15, EN55022, Class B

conducted emissions

➤

80-90% efficiency

➤

Any output: 1 to 95 Vdc

➤

Module enable/disable (except LU series)

➤

UL, TÜV, VDE, CE marked

➤

Remote sense and current limit

➤

BUS OK and AC OK (except LU series)

➤

40 mS ride-through time

➤

OVP and thermal shutdown

➤

1 output; up to 200 W

➤

1 or 2 outputs; up to 400 W

➤

1, 2, or 3 outputs; up to 600 W

FlatPAC Configuration Chart

Typical Model:

V I - R U

1 – E

U –

Input:

115/230 Vac;

Output 1:

5 Vdc at 200 W

Output 2:

12 Vdc at 200 W

Output 3:

12 Vdc at 200 W

Total Power

Single

Outputs:

50-200 W

200-400 W

300-600 W

Dual

Outputs:

100-400 W

150-600 W

Triple

Outputs:

150-600 W

Part No.

VI-LU

VI-MU

VI-NU

VI-PU

VI-QU

VI-RU

–

# of

Converters

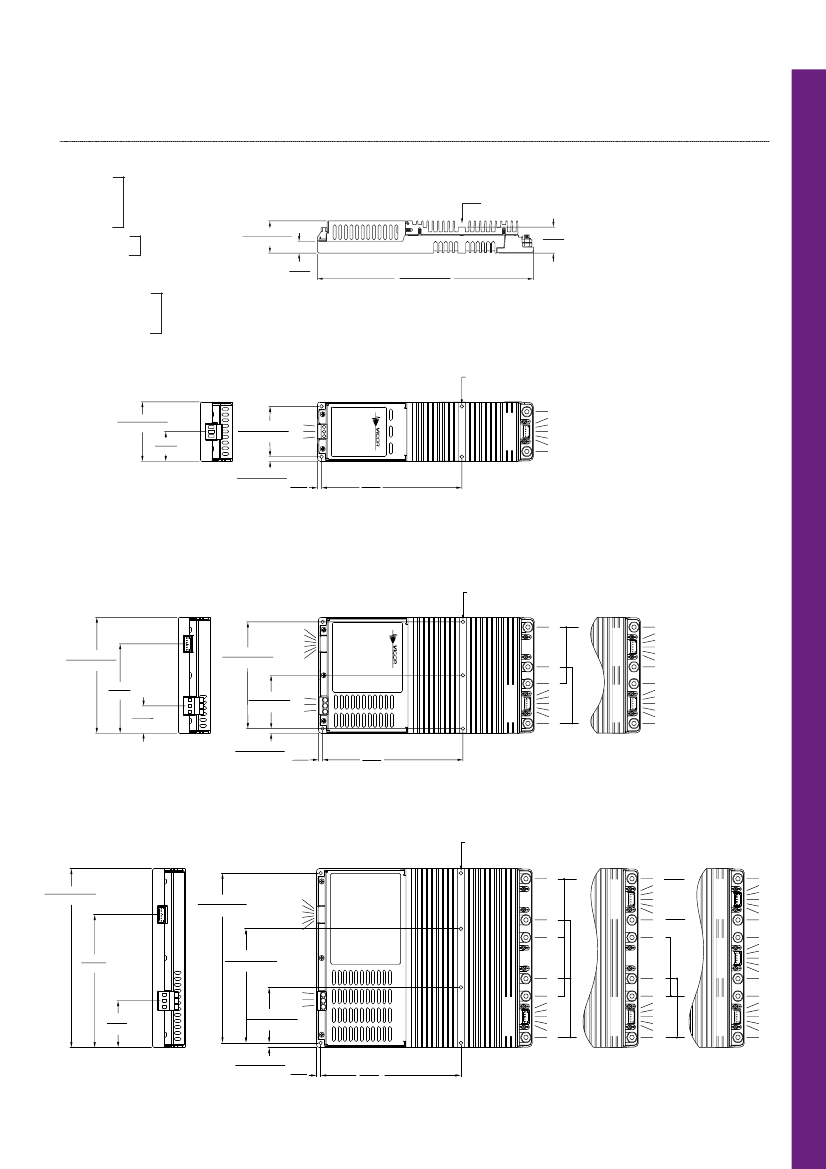

Dimensions

9.25" x 2.5" x 1.37"

(234,8 x 63,5 x 34,8 mm)

9.25" x 4.9" x 1.37"

(234,8 x 124,5 x 34,8 mm)

9.25" x 7.3" x 1.37"

(234,8 x 185,4 x 34,8 mm)

9.25" x 4.9" x 1.37"

(234,8 x 124,5 x 34,8 mm)

9.25" x 7.3" x 1.37"

(234,8 x 185,4 x 34,8 mm)

9.25" x 7.3" x 1.37"

(234,8 x 185,4 x 34,8 mm)

Input Characteristics

90-132/180-264 Vac

U = Autoranging

Output Voltage

Z2V

05V

M 10 V

K 40 V

4 48 V

F 72 V

B 95 V

Y 3.3 V 1 12 V

X 5.2 V 2 15 V

V 5.8 V 3 24 V

T 6.5 V

L 28 V

R 7.5 V J 36 V

Product Grade

E = 0°C to +85°C Case

C = 0°C to +85°C Case

I = -30°C to +85°C Case

Output Power/Current

out

≥

5 V

Y = 50 W

X = 75 W

W = 100 W

V = 150 W

U = 200 W

out

< 5 V

Y = 10 A

X = 15 A

W = 20 A

V = 30 A

U = 40 A

P 13.8 V H 52 V

W 5.5 V N 18.5 V D 85 V

Output Power

out

≥

5 V

W = 100 W

V = 150 W

U = 200 W

S = 300 W

Q = 400 W

out

< 5 V

W = 20 A

V = 30 A

U = 40 A

S = 60 A

Q = 80 A

Output Power/Current

out

≥

5 V

S = 300 W

P = 450 W

M = 600 W

out

< 5 V

S = 60 A

P = 90 A

M =120 A

Options

BC = BatMod/Conduction

Cooled

BM= BatMod

CC = Conduction Cooled

FlatPAC 01/05

1 of 4
