89-F-PMC-101-MDL-01
MulTI-Touch Projected Capacitive Developer Kit
Touch International’s 89-F-PMC-101-MDL-01 projected capacitive developer kit is equipped with a
general purpose multi-touch projected capacitive controller and touch screen mounted on a 10.1” LCD.
Designed to interface with computer systems through a wide variety of standard interfaces, the 89-B-PMC-01
projected capacitive controller is compatible with USB, I2C and Serial communications. Combined with
Touch International’s proprietary firmware, the controller can easily be tuned to your custom design, as well
as a range of different applications. Supporting up to 10-finger touch with gesture, the 89-B-PMC-01
projected capacitive controller can help take your application to the next level.
Features
Motion Detection Method
X/Y Position Reporting
Touch Force
HID
Calibration
Chip Set Solution
Touch
RoHS
REACH
Warranty
Capacitive Sensing
Absolute Position
No Contact Pressure Required
HID Compliant
No Need for Calibration
Available
Standard: 4-Fingers
Optional: 10-Fingers
Compliant
Compliant
Touch Screen - 10 Yrs.
Controller - 5 Yrs.
89-F-PMC-101-MDL-01
Applications

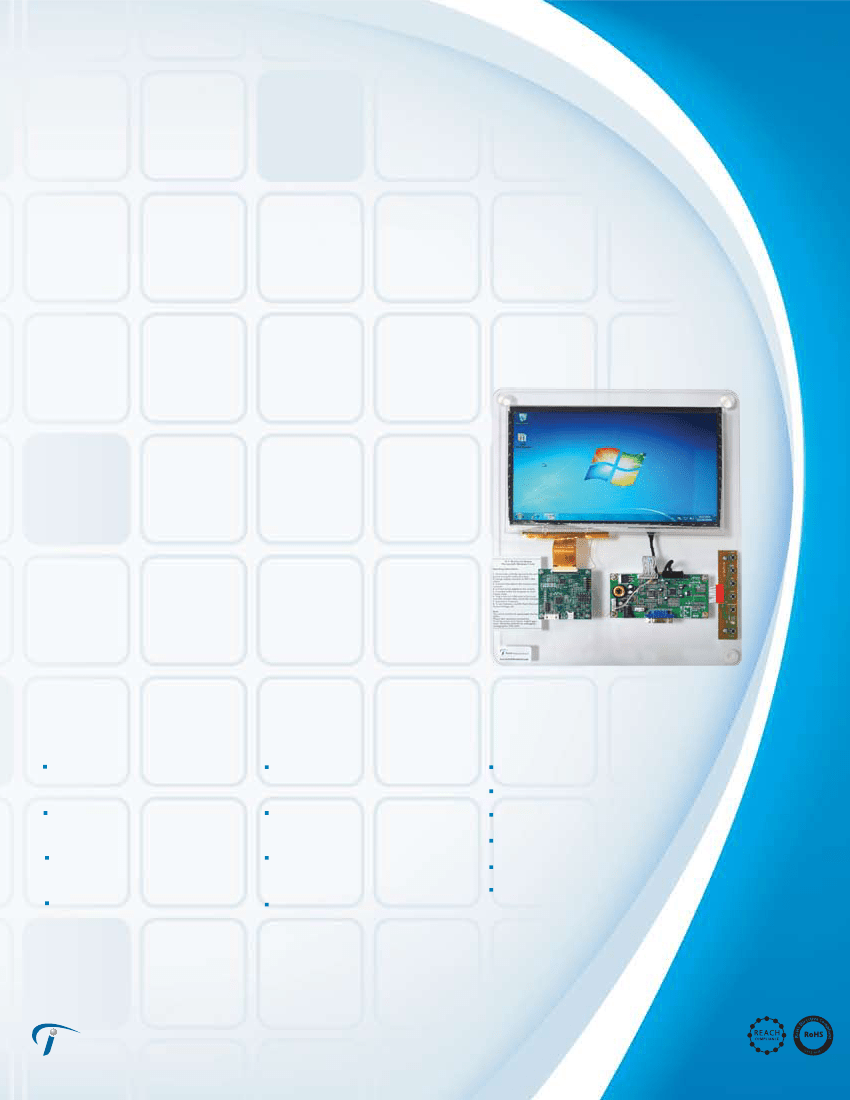

Developer Kit Includes:
10.1” Touch Screen
(89-F-PMC-101-002)
1 PSoC Controller Package
(89-B-PMC-101-002)
LCD
(8700186)
VGA Drive Kit
(13B0110)
OSD Board
(1500180)
Power Adapter
(1500179)
USB Cable
(1300264)
VGA Cable
(1300277)
Tablet Computers
GPS
NET Books
Personal Media Players
Digital Cameras
Gaming Consoles
TouchInternational
Sales@touchintl.com
www.touchinternational.com
2222 W. Rundberg Ln., Ste. 200, Austin, TX, 78758
T: 512-832-8292 F: 512-832-8291
Doc. No. 6500459 Rev. 1.0
Touch Screen Speci cations
Operating Temperature
Storage Temperature
Relative Humidity
-15 to 70°C
-40 to 80°C
10% - 90% RH, Non-Condensing
Controller Speci cations
Controller Size
Power Requirements
Operating Temperature
Storage Temperature
Relative Humidity
Interface
2.19” x 2.15” (55.63mm x 51.61mm)
5 ~ 9V DC Unregulated Power, Typical 42mA
-15 to 85°C
-40 to 85°C
35°C at 95% RH Non-Condensing
USB: 2.0, 1.1 Compliant (Standard)
Optional: USB-UART
RS-232 Serial Communication
Protocol: No Parity, 8 Data Bits, 1 Stop Bit, 15200 Baud, No Flow Control
Communication Cables
Resolution
Report Rate
Mean Time between Failures
Supported Operating Systems
I2C Communication
A Plug/5-Pin Mini-B Plug (USB & USB-UART): TI# 1300264
Standard: 1024 x 1024, Max: 4095 x 4095
50 - 75 Points/Sec.
> 5,600,000 hrs.
Standard: Windows 7
*Optional: Windows 2000, XP, Vista, Linux Ubuntu,
Mac OSX 10.X (Leopard), Android
10.1” Diagonal
16:9
200 cd/m2
650:1
1024 x 600
90° Horizontal / 65° Vertical
3ms Rise / 7ms Fall
0.2175mm × 0.2088mm
235.0(W) mm x 143.0(H) mm x 4.9(D) mm (Typical)
LED
0~+50°C
-20~+60°C
LCD Speci cations
LCD Screen Size
Aspect Ratio
Brightness
Contrast Ratio
Resolution
Viewing Angle
Response Time
Pixel Pitch
Outline Dimension
Backlight
Operating Temperature
Storage Temperature
LCD Drive Board Speci cations
Video Input
Input Voltage
Operating Temperature
Storage Temperature
Composite Signal Input and VGA Signal Input
DC 12V+/-4V（350mA +/-30mA)
0~+40°C
-10~+60°C
*Please Note: Additional drivers must be written to use with an optional OS.
