BTA2008-1000D
3Q Hi-Com Triac
11 June 2014
Product data sheet
1. General description
Planar passivated high commutation three quadrant triac in a SOT54 (TO-92) plastic
package. This "series D" triac balances the requirements of commutation performance
and gate sensitivity and is intended for interfacing with low power drivers and logic ICs
including microcontrollers.
2. Features and benefits
•
•
•
•
•
•
•
3Q technology for improved noise immunity
Direct gate triggering from low power drivers and logic ICs
High commutation capability with very sensitive gate
High voltage capability
Planar passivated for voltage ruggedness and reliability
Triggering in three quadrants only
Very sensitive gate for easy logic level triggering
3. Applications
•
•
•
Low power motor controls
Small inductive loads e.g. solenoids, door locks, water valves
Small loads in large white goods
4. Quick reference data
Table 1.
Symbol
V
DRM
I
TSM
T
j
I
T(RMS)
Quick reference data
Parameter
repetitive peak off-
state voltage
non-repetitive peak on- full sine wave; T
j(init)
= 25 °C;
state current
t
p
= 20 ms;
Fig. 4; Fig. 5
junction temperature
RMS on-state current
full sine wave; T
lead
≤ 70 °C;
Fig. 1;
Fig. 2; Fig. 3
Static characteristics
I
GT
gate trigger current
V
D
= 12 V; I
T
= 0.1 A; T2+ G+;
T
j
= 25 °C;
Fig. 7
0.25
-
5
mA
Conditions
Min
-
-
-
-
Typ
-
-
-
-
Max
1000
9
125
0.8
Unit
V
A
°C
A
Scan or click this QR code to view the latest information for this product
TO
-92
NXP Semiconductors
BTA2008-1000D
3Q Hi-Com Triac
Symbol
Parameter
Conditions
V
D
= 12 V; I
T
= 0.1 A; T2+ G-;
T
j
= 25 °C;
Fig. 7
V
D
= 12 V; I
T
= 0.1 A; T2- G-;
T
j
= 25 °C;
Fig. 7
Min
0.25
0.25
Typ
-
-
Max
5
5
Unit
mA
mA
Dynamic characteristics
dV
D
/dt
rate of rise of off-state
voltage
rate of change of
commutating current
V
DM
= 670 V; T
j
= 125 °C; (V
DM
= 67%
of V
DRM
); exponential waveform; gate
open circuit
dI
com
/dt
V
D
= 400 V; T
j
= 125 °C;
I
T(RMS)
= 0.8 A; dV
com
/dt = 1 V/µs; gate
open circuit
1
-
-
A/ms
-
150
-
V/µs
5. Pinning information
Table 2.
Pin
1
2
3
Pinning information
Symbol Description
T2
G
T1
main terminal 2
gate
main terminal 1
321
Simplified outline
Graphic symbol
T2
sym051
T1
G
TO-92 (SOT54)
6. Ordering information
Table 3.
Ordering information
Package
Name
BTA2008-1000D
BTA2008-1000D/L01
TO-92
TO-92
Description
plastic single-ended leaded (through hole) package; 3 leads
plastic single-ended leaded (through hole) package; 3 leads
Version
SOT54
SOT54
Type number
7. Marking
Table 4.
Marking codes
Marking code
200810D
Type number
BTA2008-1000D
BTA2008-1000D/L01
BTA2008-1000D
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2014. All rights reserved
Product data sheet
11 June 2014
2 / 13
NXP Semiconductors
BTA2008-1000D
3Q Hi-Com Triac
8. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
DRM
I
T(RMS)
I
TSM
Parameter
repetitive peak off-state voltage
RMS on-state current
non-repetitive peak on-state
current
full sine wave; T
lead
≤ 70 °C;
Fig. 1;
Fig. 2; Fig. 3
full sine wave; T
j(init)
= 25 °C;
t
p
= 20 ms;
Fig. 4; Fig. 5
full sine wave; T
j(init)
= 25 °C;
t
p
= 16.7 ms
I t
dI
T
/dt
I
GM
P
GM
P
G(AV)
T
stg
T
j
12
2
Conditions
Min
-
-
-
-
-
-
-
-
Max
1000
0.8
9
9.9
0.41
100
1
2
0.1
150
125
003aac115
Unit
V
A
A
A
2
I t for fusing
rate of rise of on-state current
peak gate current
peak gate power
average gate power
storage temperature
junction temperature
2
t
p
= 10 ms; sine-wave pulse
I
T
= 1.5 A; I
G
= 20 mA; dI
G
/dt = 0.2 A/µs
A s
A/µs
A
W
W
°C
°C
over any 20 ms period
-
-40
-
003aac117
I
T(RMS)
(A)
10
8
1
I
T(RMS)
(A)
0.8
0.6
6
0.4
4
2
0
10
-2
0.2
10
-1
1
10
surge duration (s)
0
-50
0
50
100
150
T
lead
(°C)
f = 50 Hz; T
lead
= 70 °C
Fig. 1.
RMS on-state current as a function of surge
duration; maximum values
Fig. 2.
RMS on-state current as a function of lead
temperature; maximum values
BTA2008-1000D
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2014. All rights reserved
Product data sheet
11 June 2014
3 / 13
NXP Semiconductors
BTA2008-1000D
3Q Hi-Com Triac
1.0
P
tot
(W)
0.8
003aac118
conduction
angle
(degrees)
30
60
90
120
180
form
factor
a
4
2.8
2.2
1.9
1.57
α
α = 180°
120°
90°
60°
30°
0.6
0.4
0.2
0.0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
I
T(RMS)
(A)
α = conduction angle
a = form factor = I
T(RMS)
/ I
T(AV)

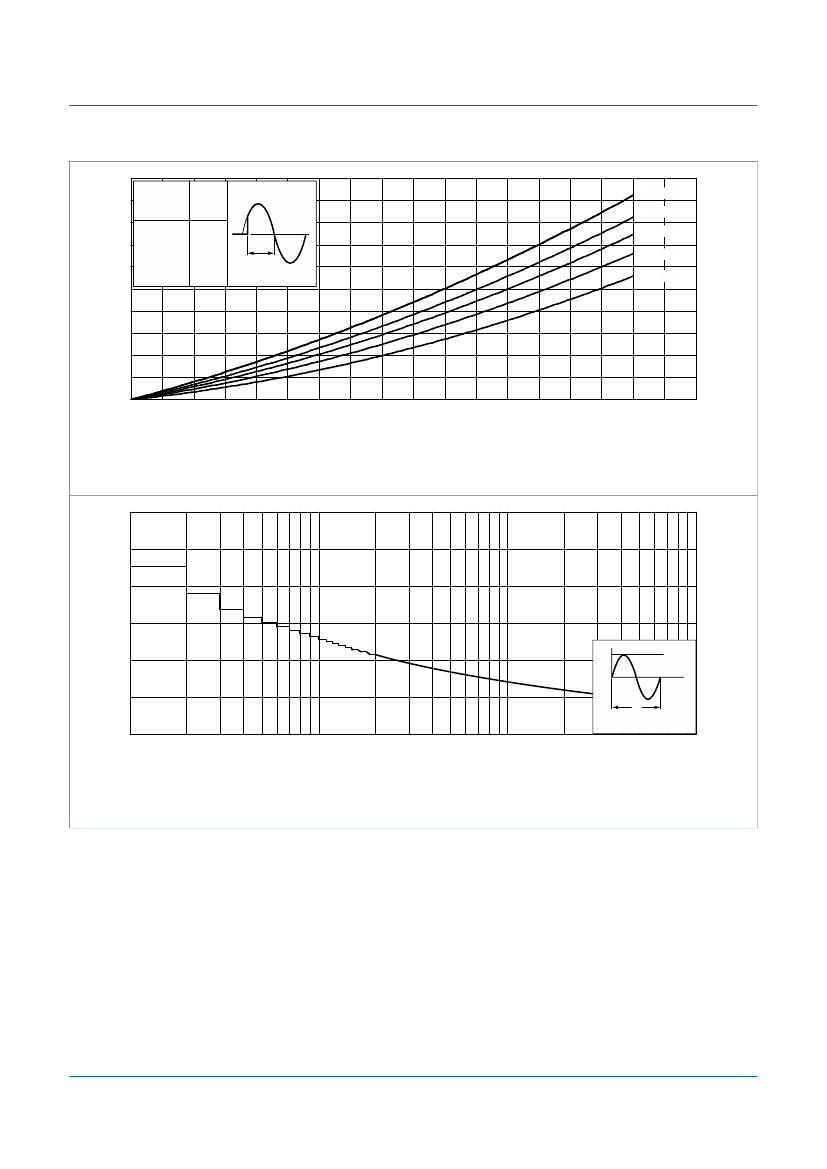

Fig. 3.
Total power dissipation as a function of RMS on-state current; maximum values
12
I
TSM
(A)
8
003aag393
4
I
T
I
TSM
t
1/f
0
T
j(init)
= 25 °C max
1
10
10
2
number of cycles
10
3
f = 50 Hz
Fig. 4.
Non-repetitive peak on-state current as a function of the number of sinusoidal current cycles; maximum
values
BTA2008-1000D
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2014. All rights reserved
Product data sheet
11 June 2014
4 / 13
NXP Semiconductors
BTA2008-1000D
3Q Hi-Com Triac
10
3
003aag394
I
T
I
TSM
(A)
10
2
(1)
I
TSM
t
t
p
T
j(init)
= 25 °C max
10
1
10
-5
10
-4
10
-3
10
-2
t
p
(s)
10
-1
t
p
≤ 20 ms; (1) dI
T
/dt limit
Fig. 5.
Non-repetitive peak on-state current as a function of pulse duration; maximum values
BTA2008-1000D
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2014. All rights reserved
Product data sheet
11 June 2014
5 / 13
