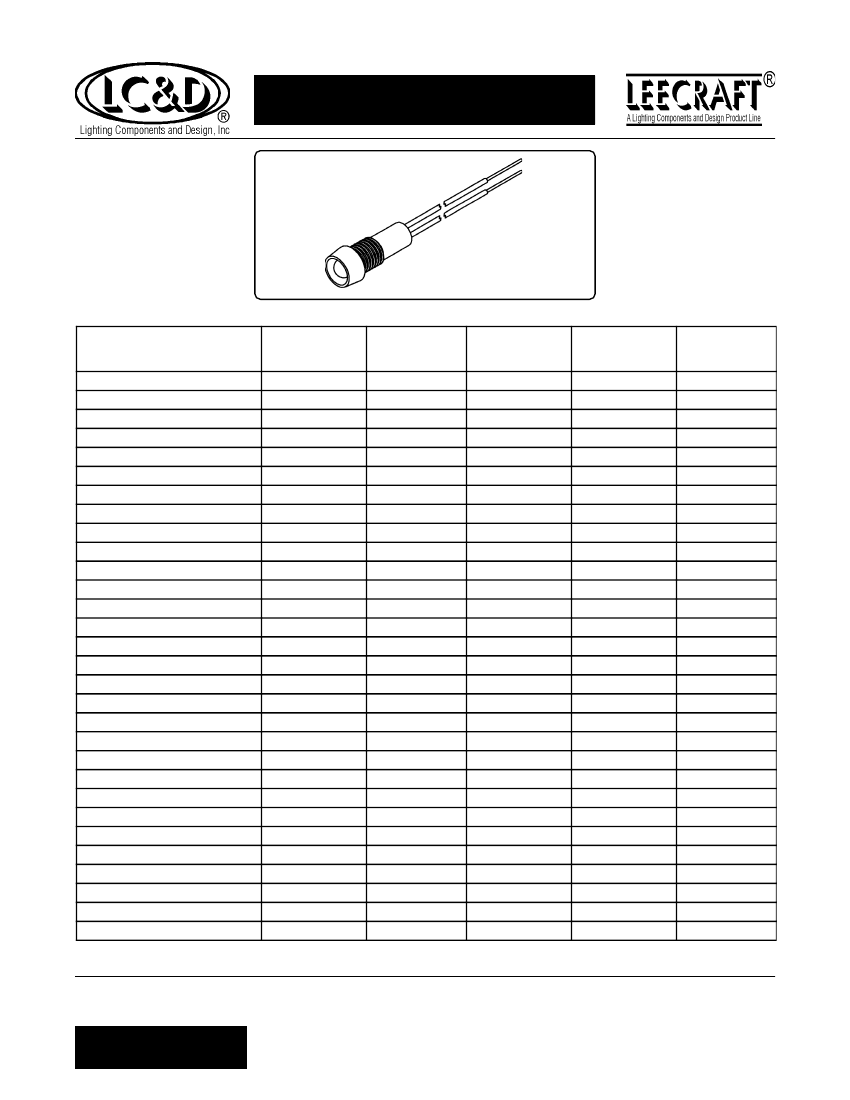

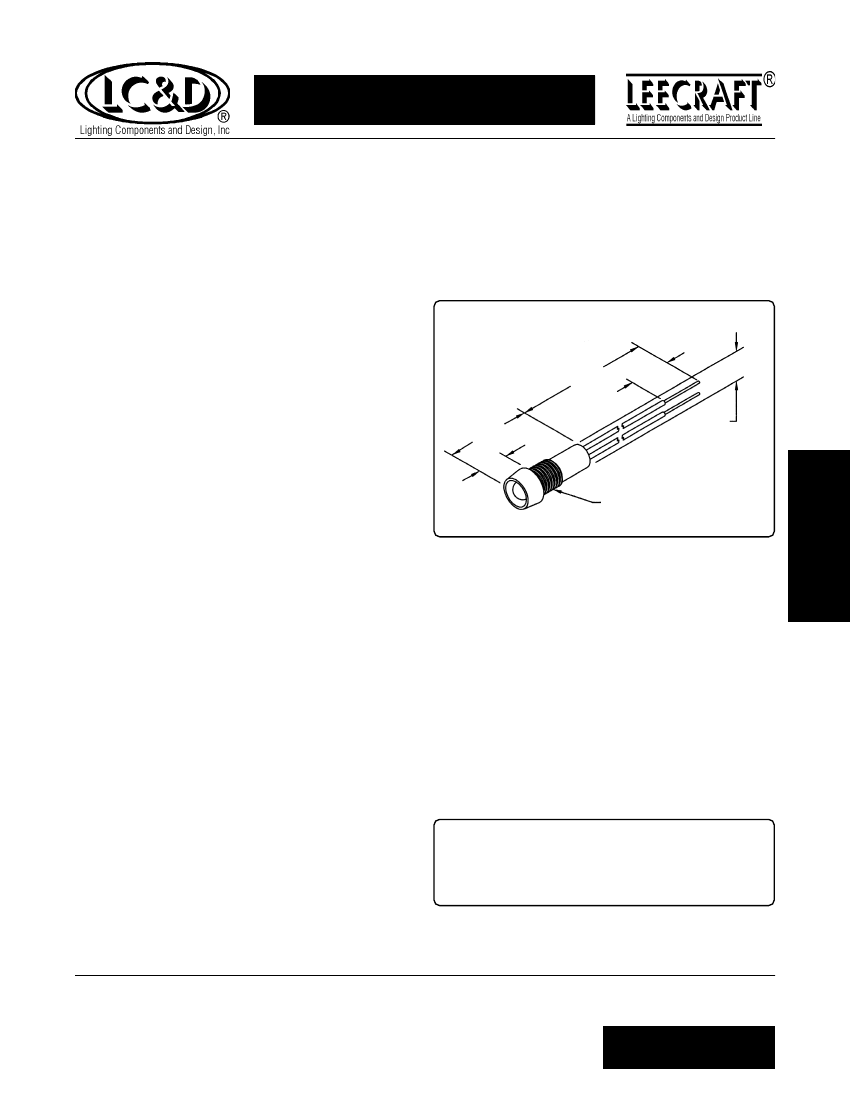

THREADED LED INDICATOR LIGHTS
FOR 5/16" DIA. HOLE
L79 SERIES
•
•
•
•
•
LED INDICATOR LIGHTS WITH BUILT-IN REFLECTOR
5/16" DIA. MOUNTING HOLE
THREADED HOUSING AND NUT
6" WIRE LEADS
•
CLEAR OR DIFFUSED LENS
•
VARIOUS LENS COLORS
2 TO 125 DESIGN VOLTS
Overview
The L79 Series LED indicators are constructed with a
threaded housing with a built-in reflector. Each unit
has a high brightness clear or diffused LED. Low
voltage DC units are supplied with two color-coded 6"
wire leads. 125 Volt AC units are supplied with a bi-
polar LED and two white wire leads. Standard voltages
range from 2 to 24 volts DC or 125 volts AC. Indicators
mount into a 5/16" diameter mounting hole with a
maximum panel thickness of 0.250" (6.35mm). A hex
nut and lockwasher are supplied. Current: 20mA
Typical.
6.0"
0.50"
0.260"
DIA.
1-7/32"
0.200"
5/16"-32 THREAD
Specifications
Housing:
chrome plated brass. Supplied with
lockwasher and hex nut.
Gasket:
neoprene.
LED Lens:
clear
(L79C)
or diffused
(L79D).
LED DC voltage options:
2, 6, 12, 24 volts.
LED AC voltage options:
125 volts.
Note:
125 volts AC units contain a bi-polar LED.
Wire leads:
6" leads:
#24 AWG, prebonded copper, thin wall
PVC, UL/CSA rated 105
°
C, stripped 1/2". DC units
are supplied with a red wire lead which denotes the
anode (+) while a black wire lead identifies the cathode
(-). AC units are supplied with two white wire leads.
Custom wire lengths, stripping, termination and wire
types are available.
Other LEDs:
bi-color, low current or ultra bright.
Can't find it here? We have many more standard and
custom solutions.
For information phone Customer Service at 954-425-0123
or complete the "Fast FAX" form on Appendix, page A-1.
Lighting Components & Design, Inc.
425-0110
®
•
692 S. Military Trail, Deerfield Bch., FL 33442
•
TEL: (954)-425-0123
FAX: (954)-
Indicator Lights
Revised July, 1997
I-35
Indicator Lights
THREADED LED INDICATOR LIGHTS
FOR 5/16" DIA. HOLE
L79 Series
LED Indicator Light
Clear Lens or
Diffused Lens
Various Lens Colors
6" Wire Leads
Chrome Plated-
Brass Housing
With Reflector
2 to 125 Design Volts
Part Number
L79C-G2-W
L79C-G6-W
L79C-G12-W
L79C-G24-W
L79C-G125-W
L79C-R2-W
L79C-R6-W
L79C-R12-W
L79C-R24-W
L79C-R125-W
L79C-Y2-W
L79C-Y6-W
L79C-Y12-W
L79C-Y24-W
L79C-Y125-W
L79D-G2-W
L79D-G6-W
L79D-G12-W
L79D-G24-W
L79D-G125-W
L79D-R2-W
L79D-R6-W
L79D-R12-W
L79D-R24-W
L79D-R125-W
L79D-Y2-W
L79D-Y6-W
L79D-Y12-W
L79D-Y24-W
L79D-Y125-W
Lens Style
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Clear
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Lens Color
Green
Green
Green
Green
Green
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Yellow
Green
Green
Green
Green
Green
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Yellow
Design
Volts DC
AC Design Volts*
2
6
12
24
125*
2
6
12
24
125*
2
6
12
24
125*
2
6
12
24
125*
2
6
12
24
125*
2
6
12
24
125*
Typical LED
Intensity (mcd)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
80
80
80
80
80
80
80
80
80
80
80
80
80
80
80
Typical LED
Viewing Angle
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
Polarity Determination - Wire Leads:
Red wire lead denotes anode (+); black wire lead denotes cathode (-).
®
Lighting Components & Design, Inc.
425-0110
•
692 S. Military Trail, Deerfield Bch., FL 33442
•
TEL: (954)-425-0123
FAX: (954)-
I-36
Indicator Lights
Revised July, 1997
