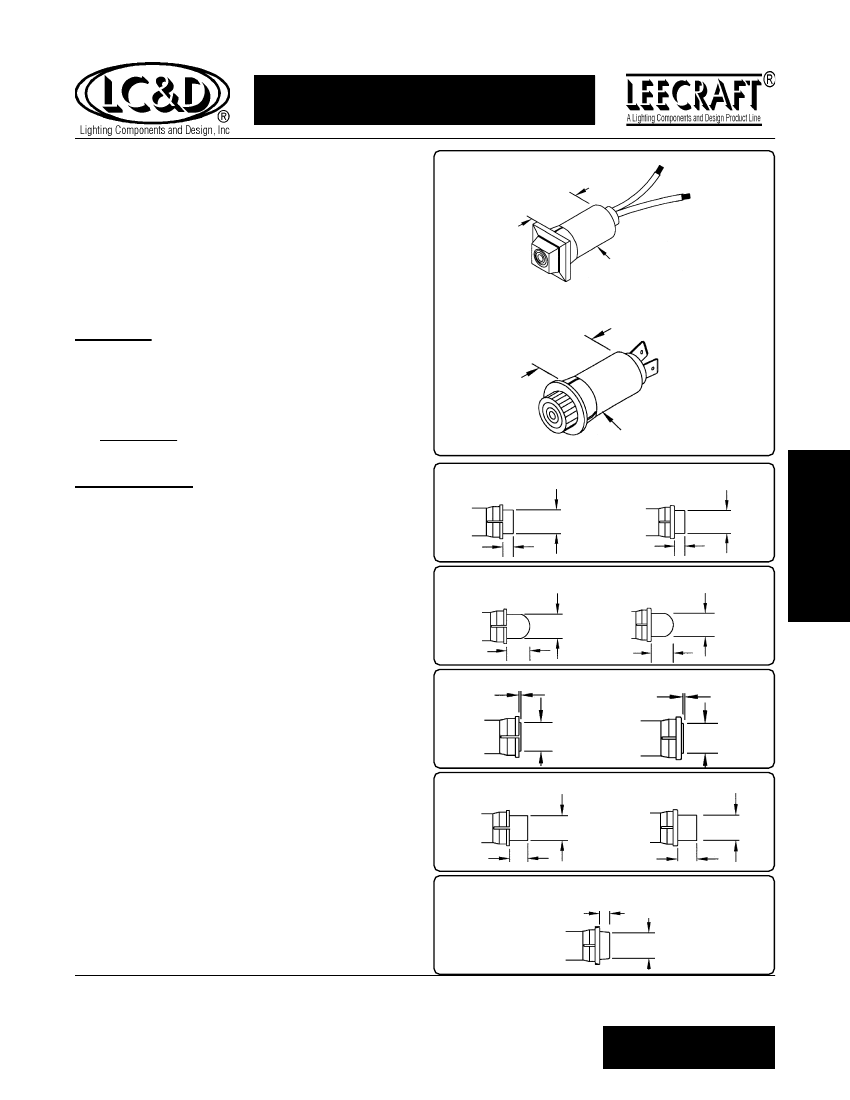

PRESSFIT INDICATOR LIGHTS

FOR 1/2" DIA. MOUNTING HOLE

32/35 SERIES

PRESSFIT INDICATOR LIGHTS

NEON, LED & INCANDESCENT

2 TO 600 DESIGN VOLTS

6" WIRE LEADS & 3/16"TAB TERMINALS

VARIETY OF LENS COLORS

UL AND CSA LISTED

UL FILE E20356

CSA FILE LR15284-5

Overview

The 32/35 Series Indicators feature a wide variety of

lenses, colors, voltage & bezel variations. Indicators

quickly pressfit into a 0.500" to 0.510" mounting hole

with recommended panel thickness range of 0.020"

min. to 0.090" max. A speednut, part number

8700071674,

and Adapters for 0.51 4" to 0.519" are

available.

15/16" TYP.

1/2" DIA.

15/16" TYP.

1/2" DIA.

Specifications

Housing:

white nylon. A black housing is available.

Bezel:

nickel plated brass. A black anodized bezel

is available.

Lens:

polycarbonate.

Incandescent AC or DC voltage options:

6, 14 and

28 volts.

Neon AC or DC voltage options:

125, 250 and

600 volts.

Note:

high brightness green and blue neon

lamps supplied in green and blue neon applications.

LED DC voltage options:

2, 6, 12, 24 volts.

LED AC voltage options:

125 volts.

Note:

125 volts AC units contain a bi-polar LED.

Two 6" wire leads:

#20 AWG, black, bare copper,

PVC insulated, UL/CSA rated 105° C, 600 V, UL style

1015, stripped 1/2". For DC LED units, wire leads

are color-coded red and black; the red wire lead

denotes the anode (+) while a black wire lead

identifies the cathode (-). For AC LED units, wire

leads are white. Custom wire lengths, stripping,

termination and wire types are available.

Terminals:

3/16" tabs:

brass, (0.187" length x 0.020" thick). For

LED units, a tin plated terminal denotes the anode

(+). 1/4" or 1/8" brass tab terminals are available.

Without bezel.

3/16"

Flat Cylindrical Lens Style

With bezel.

27/64"

11/64"

With bezel.

27/64"

With bezel.

27/64"

Without bezel.

Dome Lens Style

27/64"

13/32"

Without bezel.

Flush Lens Style

3/64"

1/32"

27/64"

Without bezel.

Hi-Hat Lens Style

With bezel.

27/64"

21/64"

5/16"

Square Lens Style

Square lens

style must

have bezel.

With bezel.

15/64"

7/16" SQ.

Lighting Components & Design, Inc.

692 S. Military Trail, Deerfield Bch., FL 33442

TEL: (954)-425-0123 FAX: (954)-425-0110

Indicator Lights

Revised July, 1997

I-49

Indicator Lights
