Ordering number :EN684E
SVC211SPA
Diffused Junction Type Sillicon Diode
Varactor Diode (IOCAP)
for FM Low-Voltage Electronic Tuning
Features
· Twin type varactor diode being excellent in large
input characteristic and intended for use in high-
voltatge FM electronic applications.
Package Dimensions
unit:mm
1129
[SVC211SPA]
C:Cathode
A:Anode
SANYO:SPA
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Reverse Voltage
Junction Temperature
Storage Temperature
Symbol
VR
Tj
Tstg
Conditions
Ratings
–32
125
–55 to 125
Unit
V
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Breakdown Voltage
Reverse Current
Interterminal Capacitance*
Capacitance Ratio*
Quality Factor
Symbol
V(BR)R
IR
C3.0V
C25V
CR
Q
IR=–10µA
VR=–30V
VR=–3.0V, f=1MHz
VR=–25V, f=1MHz
C3.0V/C25V, f=100MHz
VR=–3.0V, f=100MHz
37.0
14.8
2.32
100
Conditions
Ratings
min
–32
–50
42.0
18.2
2.55
typ
max
Unit
V
nA
pF
pF
Note)*:Capacitance value of one diode
Electrical Connection
A:Anode
C:Cathode
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/3019MO/6163KI, TS No.684-1/3
SVC211SPA

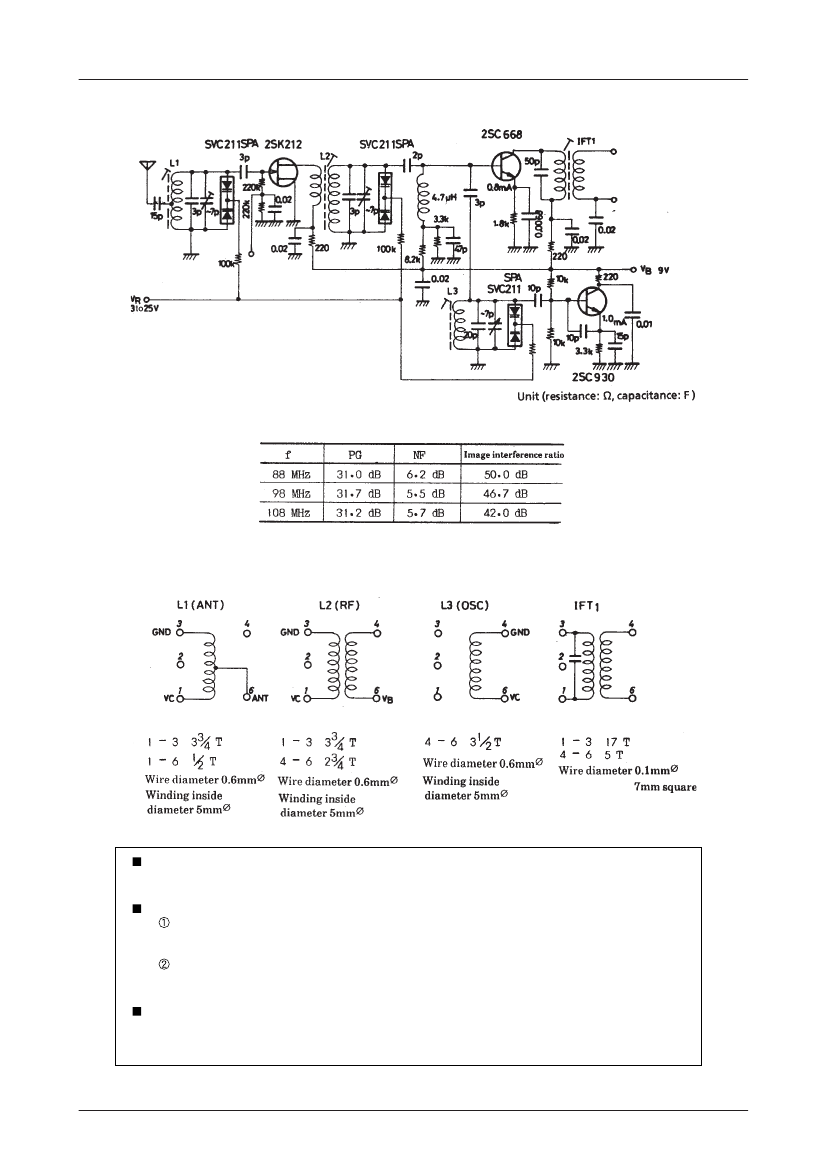

Sample Application Circuit:FM
electronic tuner using SVC211SPA

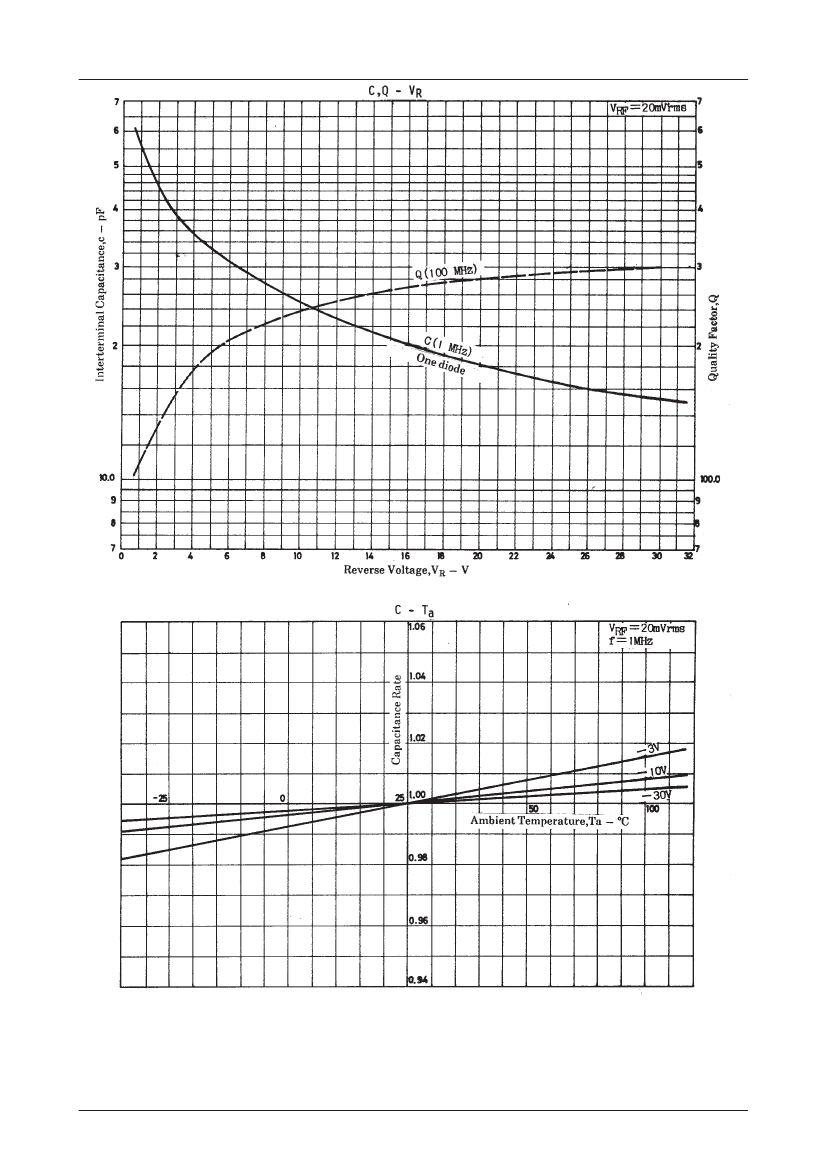

· Main Characteristics
· Coil Data
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of March, 1998. Specifications and information herein are subject to
change without notice.
PS No.684-3/3
