Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CMP02BICP

Preview

CMP02BICP: DescriptionIC COMPARATOR, 3500 uV OFFSET-MAX, 190 ns RESPONSE TIME, PDIP8, MINI, PLASTIC, DIP-8, Comparator; CategoryAnalog mixed-signal IC Amplifier circuit; File Size297KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

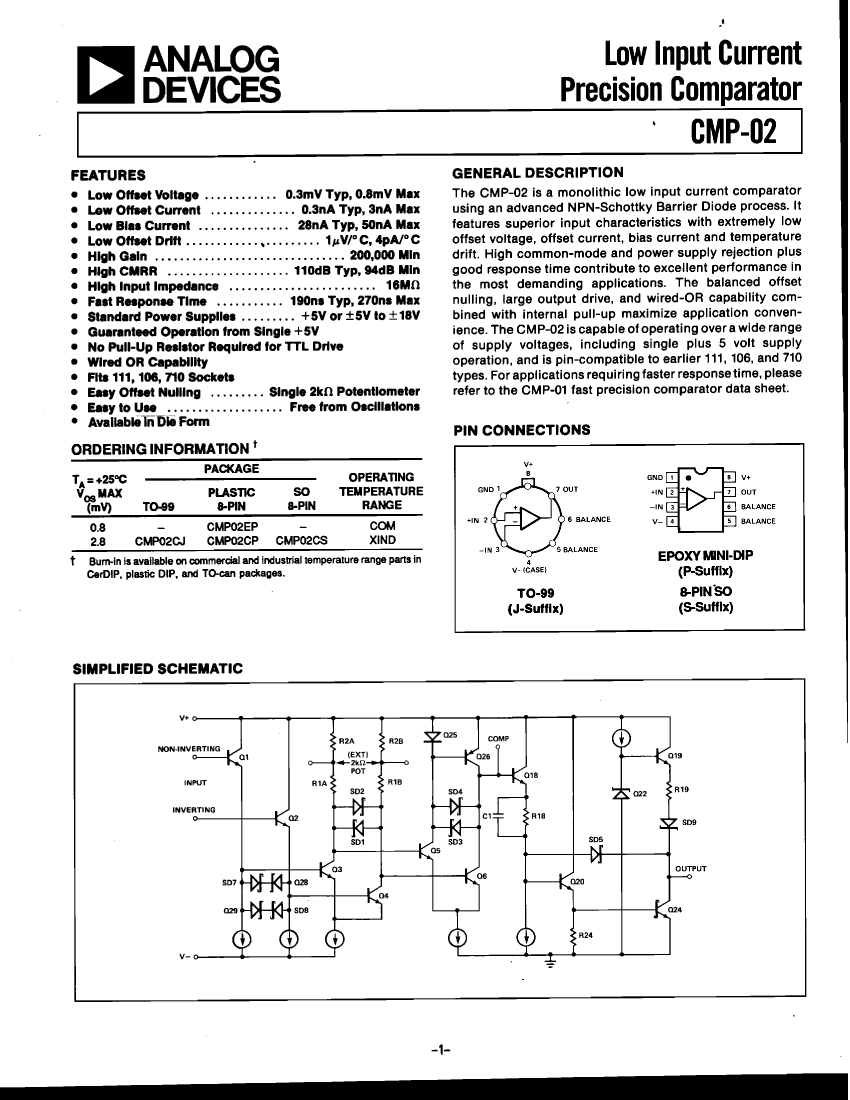

CMP02BICP Overview

IC COMPARATOR, 3500 uV OFFSET-MAX, 190 ns RESPONSE TIME, PDIP8, MINI, PLASTIC, DIP-8, Comparator

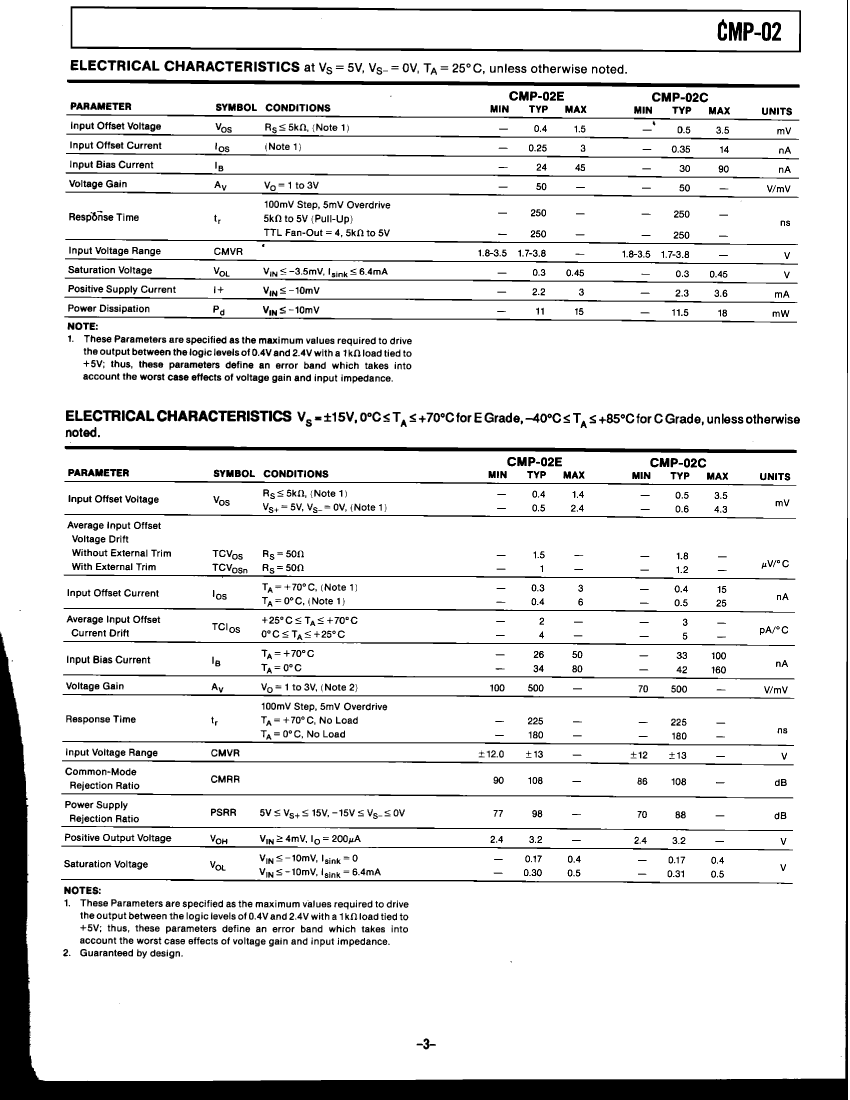

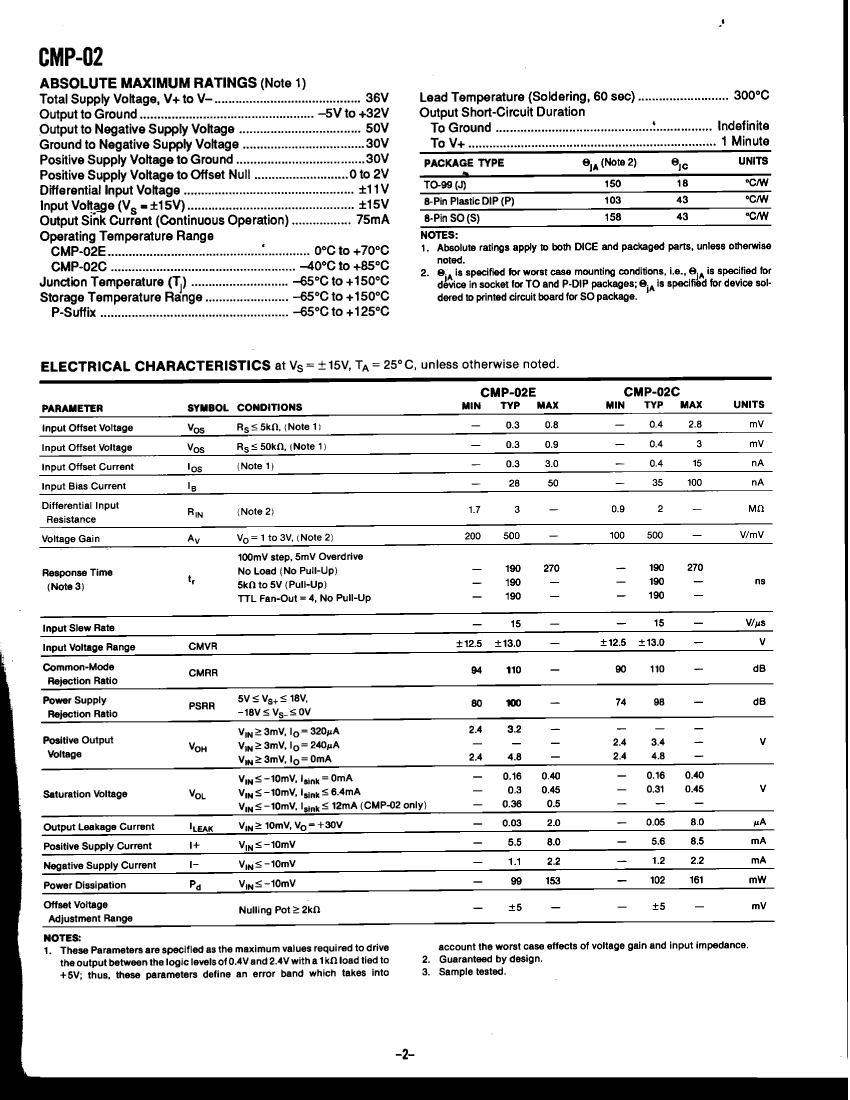

CMP02BICP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	MINI, PLASTIC, DIP-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.1 µA
Maximum input offset voltage	3500 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.88 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output type	TOTEM POLE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Nominal response time	190 ns
Maximum seat height	5.33 mm
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

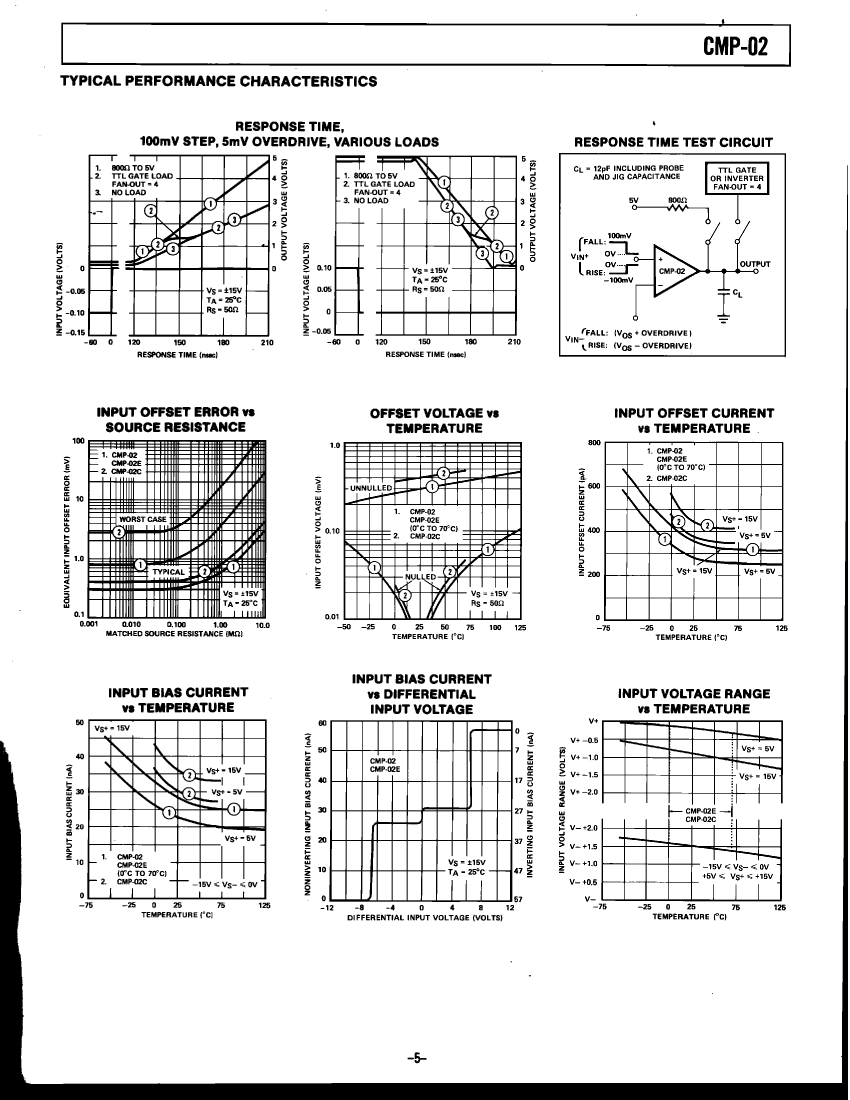

Preview

Download Datasheet

View All

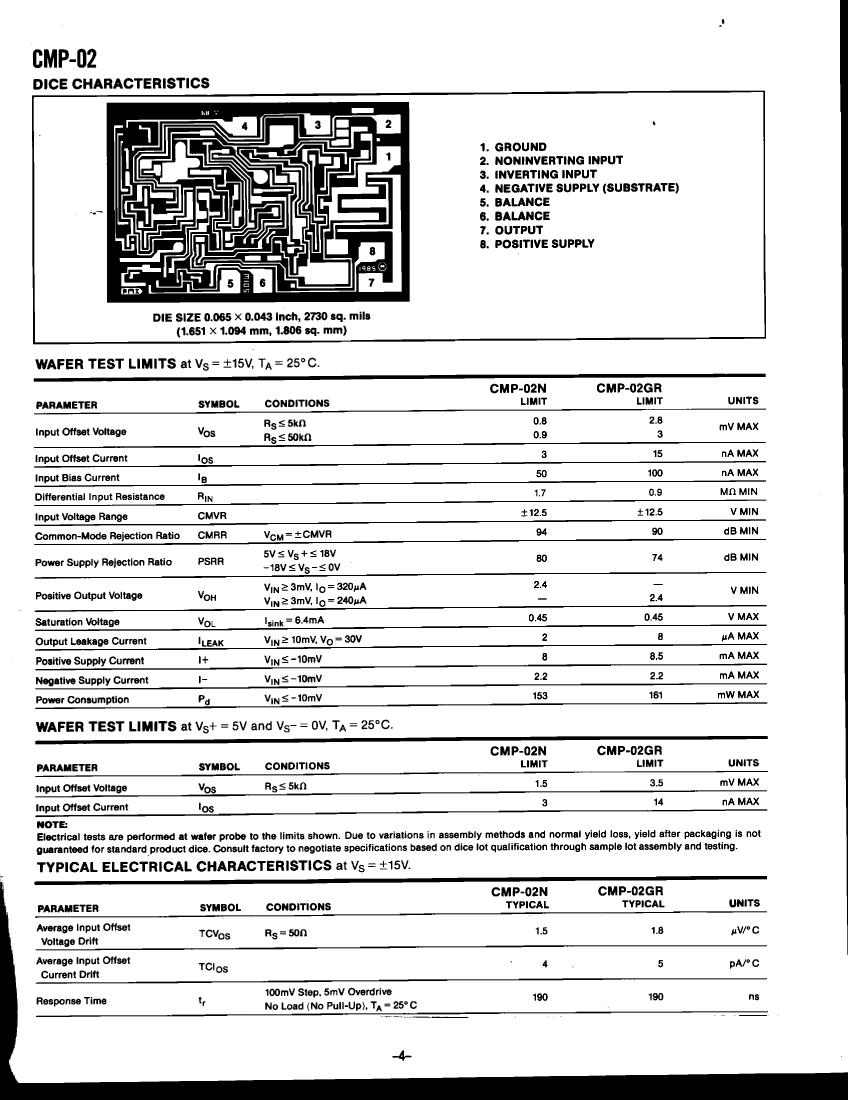

CMP02BICP Related Products

	CMP02BICP	CMP02BICS	CMP02BICJ	CMP02N	CMP02GR
Description	IC COMPARATOR, 3500 uV OFFSET-MAX, 190 ns RESPONSE TIME, PDIP8, MINI, PLASTIC, DIP-8, Comparator	IC COMPARATOR, 4300 uV OFFSET-MAX, 250 ns RESPONSE TIME, PDSO8, SO-8, Comparator	IC COMPARATOR, 3500 uV OFFSET-MAX, 190 ns RESPONSE TIME, MBCY8, TO-99, 8 PIN, Comparator	IC COMPARATOR, 900 uV OFFSET-MAX, 190 ns RESPONSE TIME, UUC8, 0.065 X 0.043 INCH, DIE-8, Comparator	IC COMPARATOR, 3000 uV OFFSET-MAX, 190 ns RESPONSE TIME, UUC8, 0.065 X 0.043 INCH, DIE-8, Comparator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	SOIC	TO-99	DIE	DIE
package instruction	MINI, PLASTIC, DIP-8	SO-8	TO-99, 8 PIN	0.065 X 0.043 INCH, DIE-8	DIE,
Contacts	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.1 µA	0.16 µA	0.1 µA	0.05 µA	0.1 µA
Maximum input offset voltage	3500 µV	4300 µV	3500 µV	900 µV	3000 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8	O-MBCY-W8	R-XUUC-N8	R-XUUC-N8
JESD-609 code	e0	e0	e0	e0	e0
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	SOP	TO-99	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	CYLINDRICAL	UNCASED CHIP	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	190 ns	250 ns	190 ns	190 ns	190 ns
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	YES	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	GULL WING	WIRE	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	BOTTOM	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED
Maximum operating temperature	85 °C	85 °C	85 °C	-	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-
Output type	TOTEM POLE	TOTEM POLE	TOTEM POLE	-	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	-
Base Number Matches	-	1	1	1	-
