DSX530G-FREQ2-STBY1-TOL1-SR

Description
Series - Fundamental Quartz Crystal, 20MHz Min, 27MHz Max,
CategoryPassive components    Crystal/resonator
File Size65KB,1 Pages
ManufacturerDaishinku Corp.
Websitehttp://www.kds.info/
Environmental Compliance
Download Datasheet Parametric View All

DSX530G-FREQ2-STBY1-TOL1-SR Overview

Series - Fundamental Quartz Crystal, 20MHz Min, 27MHz Max,

DSX530G-FREQ2-STBY1-TOL1-SR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerDaishinku Corp.
Reach Compliance Codeunknown
Crystal/Resonator TypeSERIES - FUNDAMENTAL
Drive level10 µW
frequency stability0.003%
frequency tolerance30 ppm
JESD-609 codee4
Manufacturer's serial numberDSX530G
Installation featuresSURFACE MOUNT
Maximum operating frequency27 MHz
Minimum operating frequency20 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL5XB3.2XH1.2 (mm)
Series resistance80 Ω
surface mountYES
Terminal surfaceGold (Au)

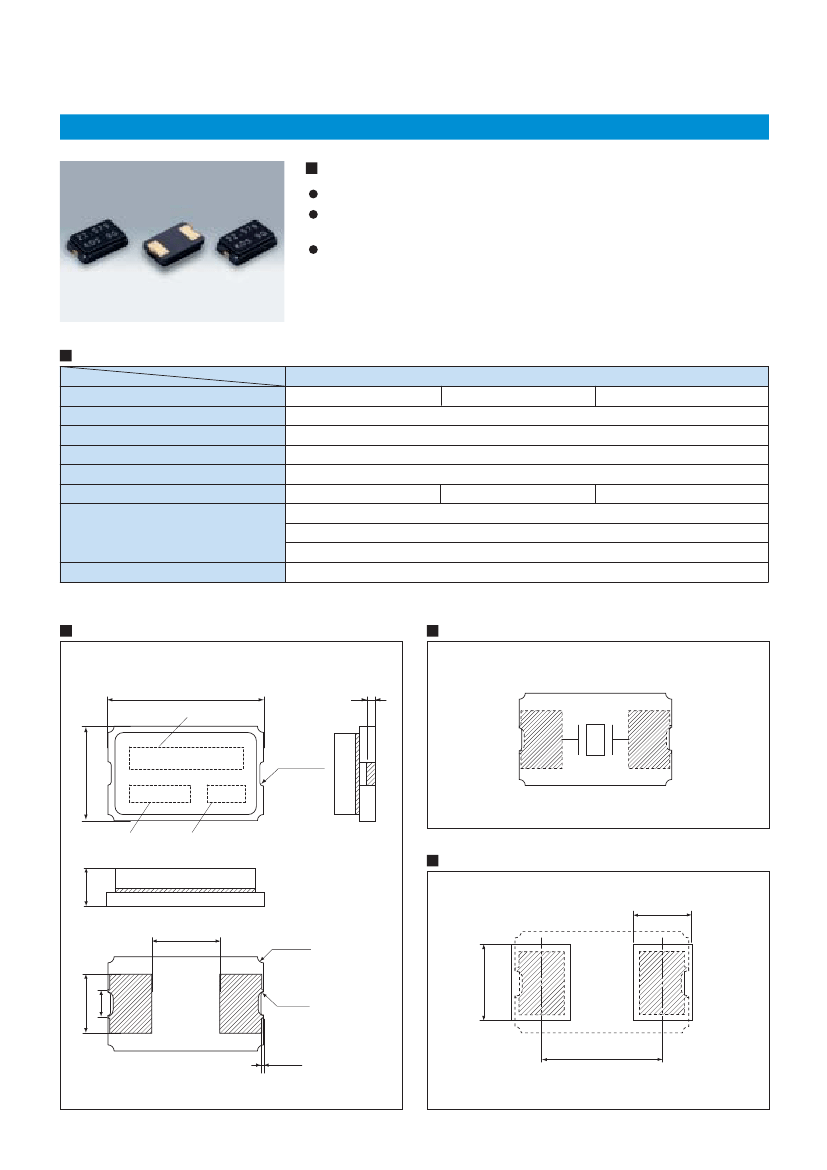

SMD Type Crystal Resonators
DSX530G
Features
Miniature SMD crystal resonators.
(height 1.2mm)
Reliable ceramic package provides high resistance
against extreme environment.
Good for automatic mounting and reflow soldering.
Generic Specification
Item
Frequency Range
Vibration Mode
Load Capacitance
Drive Level
Frequency Tolerance
Series Resistance
Frequency Characteristics
over Temperature
Storage Temperature Range
Packing Unit : 1000pcs./reel
Type
12∼20MHz
DSX530G
20∼27MHz
Fundamental
Series, 8pF, 10pF, 12pF
10μW(300μW max.)
±30×10
-6
, ±50×10
-6
, ±100×10
-6
(at 25℃)
100Ω max.
80Ω max.
50Ω max.
±30×10
-6
/−10∼+60℃(Ref. to 25℃)
±50×10
-6
/−20∼+70℃(Ref. to 25℃)
±100×10
-6
/−30∼+80℃(Ref. to 25℃)
−40∼+85℃
Consult our sales representative for other specifications or special specifications.
27∼50MHz
Dimensions[mm]
Internal Connections
〈Top View〉
5.0±0.2
Frequency
0.45
3.2±0.2
2 0 . 0 0 0
K D S
Logo
Lot.No.
4-R0.1
1 G
1.2±0.2
Recommended Land Pattern
[mm]
1.6
2.6
8-R0.2
2.0
0.8
4-R0.2
2.4
2-0.1
3.8
11
