JM38510/07004BCB datasheet, PDF

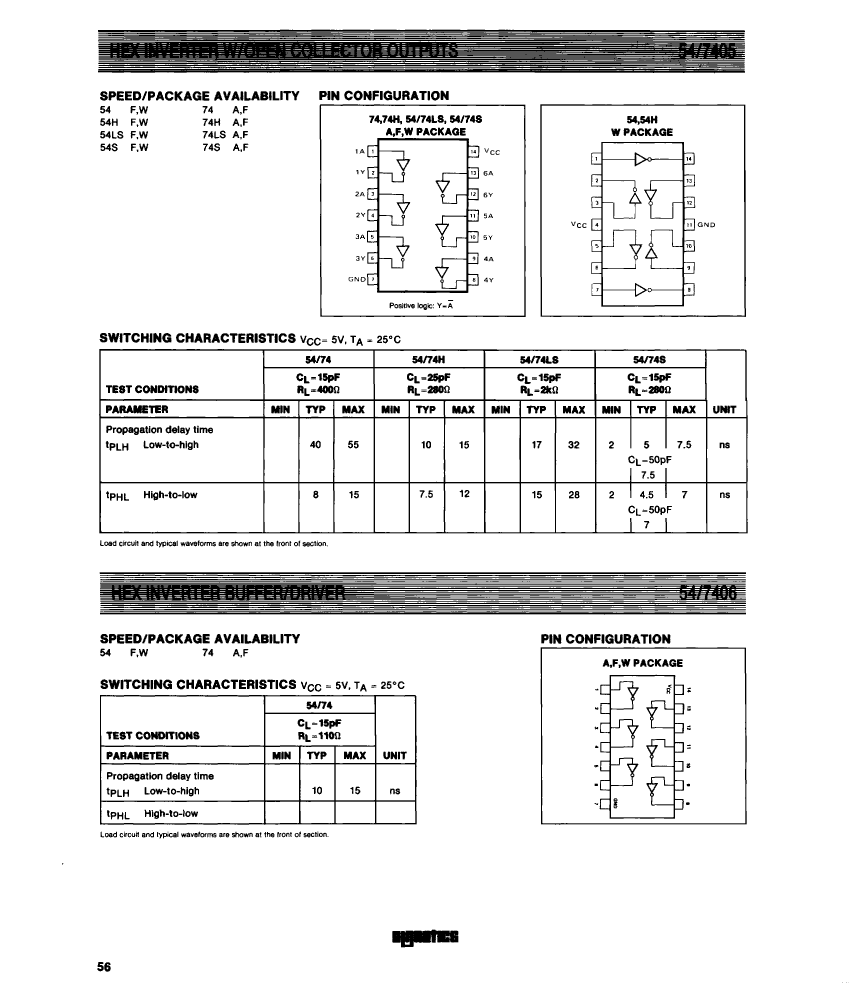

JM38510/07004BCB: DescriptionInverter, S Series, 6-Func, 1-Input, TTL, CDIP14; Categorylogic logic; File Size30KB，1 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

JM38510/07004BCB Overview

Inverter, S Series, 6-Func, 1-Input, TTL, CDIP14

Parameter Name	Attribute value
Maker	Signetics
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-GDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	9 mA
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
