WSL4026
Vishay Dale
Power Metal Strip
®
Resistors, Low Value,
High Power, Surface Mount
FEATURES
•
High power to foot print size ratio
•
Ideal for all types of current sensing, voltage
division and pulse applications including
switching
and
linear
power
supplies,
instruments, power amplifiers and shunts
•
Proprietary processing technique produces
extremely low resistance values down to 0.0005
Ω
•
All welded construction
•
Solid metal Iron-Chrome or Manganese-Copper alloy
resistive element with low TCR (< 20 ppm/°C)
•
Very low inductance 0.5 nH to 5 nH
•
Excellent frequency response to 50 MHz
•
Low thermal EMF (< 3 µV/°C)
•
Compliant to RoHS directive 2002/95/EC
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
WSL4026
POWER RATING
P
70 °C
W
3.0
TOLERANCE
%
1.0
RESISTANCE VALUE
RANGE
mΩ
0.5 to 5
RESISTANCE VALUES
CURRENTLY AVAILABLE
mΩ
(1)
0.5, 2, 3, 4, 5
WEIGHT
(Typical)
g/1000 pieces
420
Notes
(1)
Other values may be available, contact factory
• Power rating depends on the max. temp. at the solder point, component placement density and the substrate material
• Part Marking: Model, value, tolerance, date code
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Operating Temperature Range
Maximum Working Voltage
UNIT
ppm/°C
°C
V
WSL RESISTOR CHARACTERISTICS
± 75 over temperature of + 20 °C to + 60 °C
- 65 to + 170
(P x
R)
1/2
GLOBAL PART NUMBER INFORMATION
GLOBAL PART NUMBERING: WSL4026L5000FEA
W
S
L
4
0
2
6
L
5
0
0
0
F
E
A
GLOBAL MODEL
WSL4026
RESISTANCE VALUE
L
= mΩ
L5000
= 0.0005
Ω
2L000
= 0.002
Ω
3L000
= 0.003
Ω
4L000
= 0.004
Ω
5L000
= 0.005
Ω
TOLERANCE CODE
F =
± 1.0 %
PACKAGING CODE
EA
= Lead (Pb)-free, tape/reel
EK
= Lead (Pb)-free, bulk
SPECIAL
(Dash number)
(Up to 2 digits)
From
1 to 99
as
applicable
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
www.vishay.com
26
For technical questions, contact:
ww2bresistors@vishay.com
Document Number: 30132
Revision: 07-Apr-10
WSL4026
Power Metal Strip
®
Resistors, Low Value,
High Power, Surface Mount

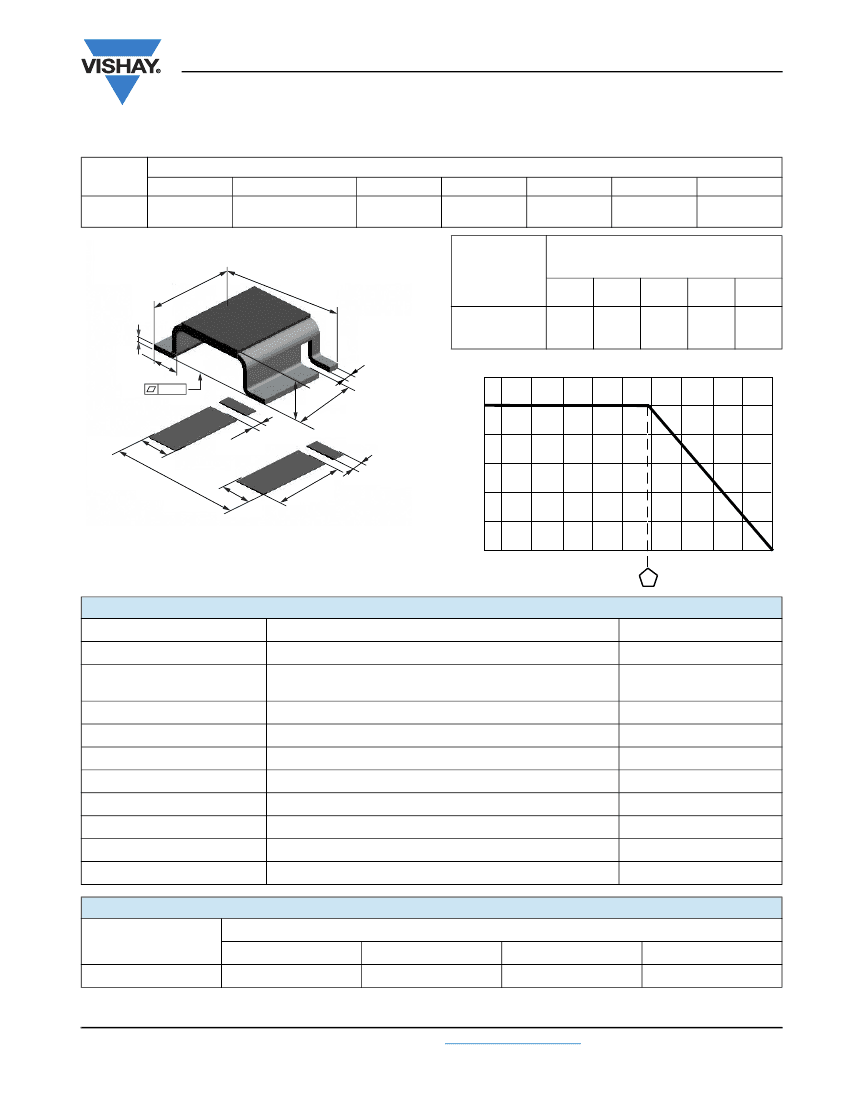

DIMENSIONS
MODEL
WSL4026
DIMENSIONS
in inches (millimeters)
L
0.400 ± 0.008
(10.1 ± 0.2)
W
0.260 + 0.012/- 0.008
(6.6 + 0.3/- 0.2)
H
0.117 ± 0.008
(3.0 ± 0.2)
R
0.193 ± 0.004
(4.9 ± 0.1)
S
0.028 ± 0.004
(0.7 ± 0.1)
T
0.016 ± 0.002
(0.4 ± 0.05)
U
0.078 ± 0.004
(2.0 ± 0.1)
Vishay Dale
MODEL
W
L
SOLDER PAD DIMENSIONS
in inches (millimeters)
a
b
0.096
(2.44)
c
0.035
(0.89)
d
0.035
(0.89)
w
0.420
(10.6)
T
U
0.004
Terminal Area
c
b
d
w
b
a
S
WSL4026
0.220
(5.6)
H
R
Rated Power in
%
120
100
80
60
40
20
0
- 65 - 50
- 25
0
25
50
Derating
PERFORMANCE
TEST
Thermal Shock
Short Time Overload
Low Temperature Operation
High Temperature Exposure
Bias Humidity
Mechanical Shock
Vibration
Load Life
Resistance to Solder Heat
Moisture Resistance
CONDITIONS OF TEST
- 55 °C to + 150 °C, 1000 cycles, 15 min at each extreme
0.5 mΩ, 2 mΩ and 3 mΩ - 5 x rated power for 5 s
4 mΩ and 5 mΩ - 3 x rated power for 5 s
- 65 °C for 45 min
1000 h at + 170 °C
+ 85 °C, 85 % RH, 10 % bias, 1000 h
100 g’s for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at + 70 °C, 1.5 h “ON”, 0.5 h “OFF”
+ 260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7b not required
75
100
125 150 170
Ambient Temperature in °C
70
TEST LIMITS
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (1.0 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (1.0 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
± (0.5 % + 0.0005
Ω) ΔR
PACKAGING
REEL
MODEL
TAPE WIDTH
WSL4026
16 mm/embossed plastic
DIAMETER
330 mm/13"
PIECES/REEL
1500
CODE
EA
Note
• Embossed carrier tape per EIA-481-2
Document Number: 30132
Revision: 07-Apr-10
For technical questions, contact:
ww2bresistors@vishay.com
www.vishay.com
27
