ILS-3825-034.7UH+/-20% datasheet, PDF

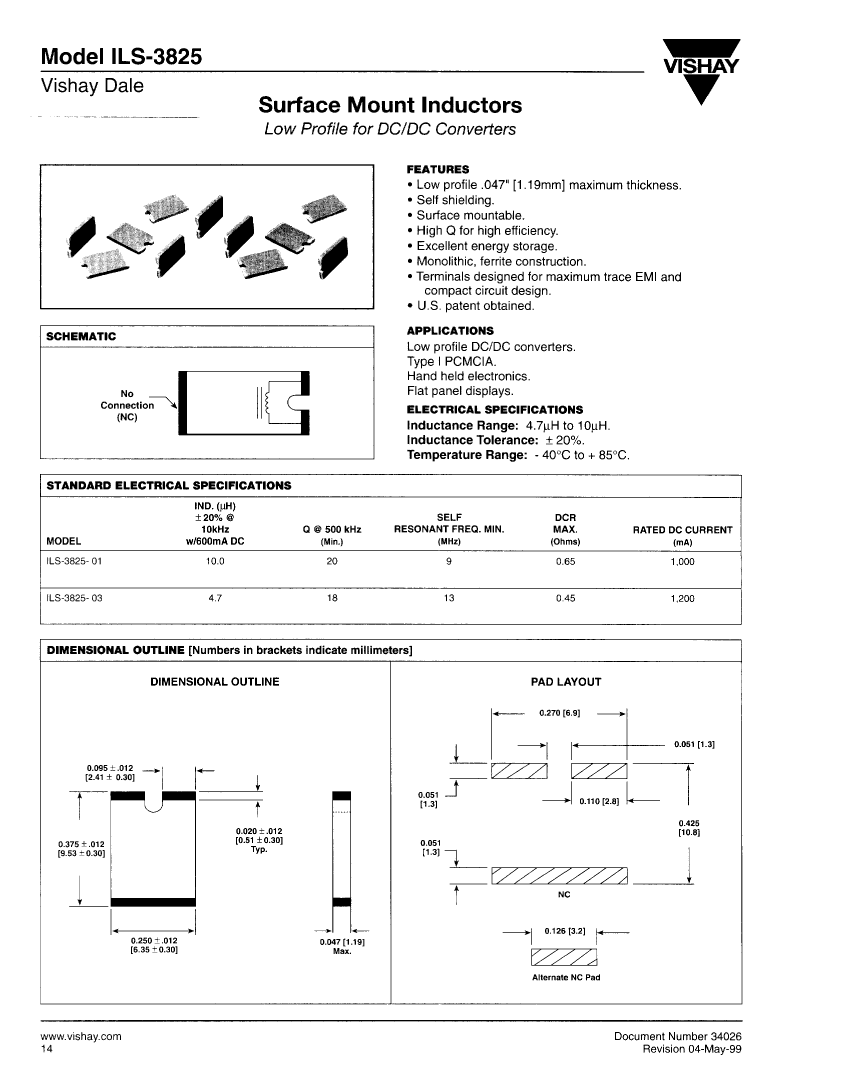

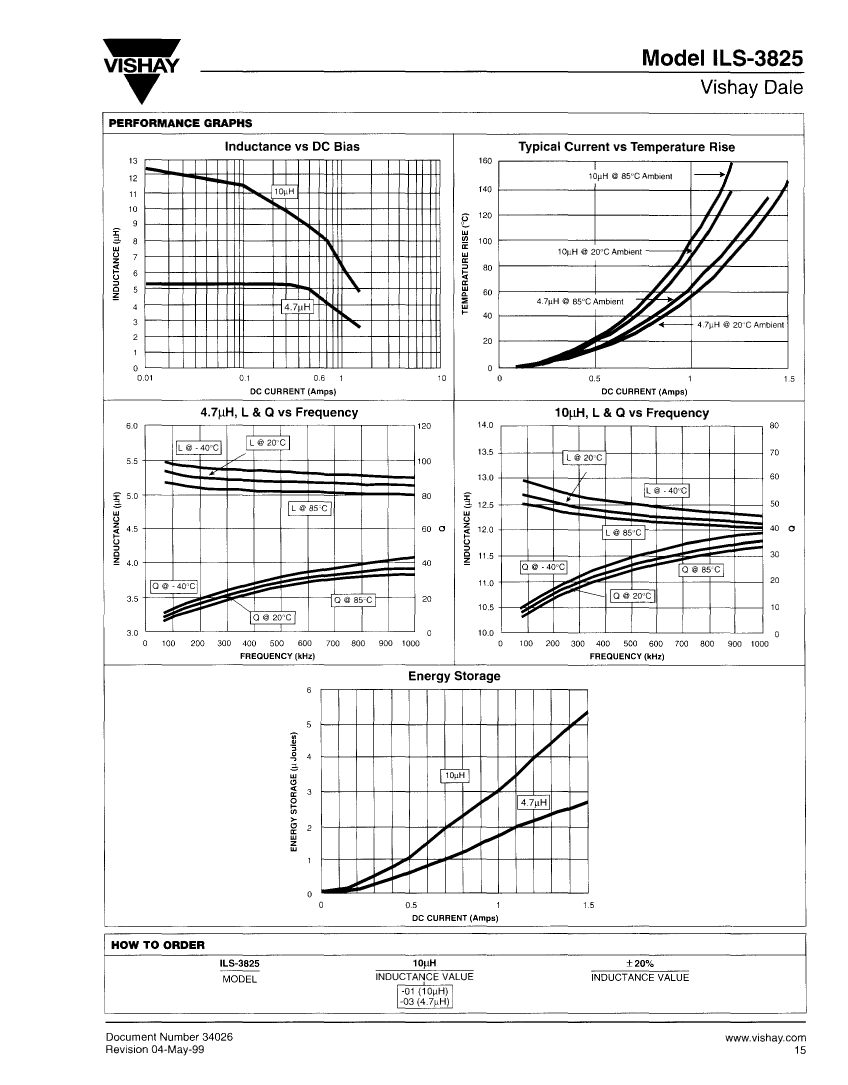

ILS-3825-034.7UH+/-20%: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP; CategoryPassive components inductor; File Size89KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

ILS-3825-034.7UH+/-20% Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.45 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	18
Maximum rated current	1.2 A
self resonant frequency	13 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	Q MEASURED AT 0.5 MHZ, INDUCTANCE MEASURED AT 600MA DC CURRENT
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.01 MHz
Tolerance	20%

	ILS-3825-034.7UH+/-20%	ILS-3825-0110UH+/-20%
Description	General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP	General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, CHIP
Maker	Vishay	Vishay
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
core material	FERRITE	FERRITE
DC Resistance	0.45 Ω	0.65 Ω
Nominal inductance(L)	4.7 µH	10 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	18	20
Maximum rated current	1.2 A	1 A
self resonant frequency	13 MHz	9 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES
special characteristics	Q MEASURED AT 0.5 MHZ, INDUCTANCE MEASURED AT 600MA DC CURRENT	Q MEASURED AT 0.5 MHZ, INDUCTANCE MEASURED AT 600MA DC CURRENT
surface mount	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND
Test frequency	0.01 MHz	0.01 MHz
Tolerance	20%	20%
