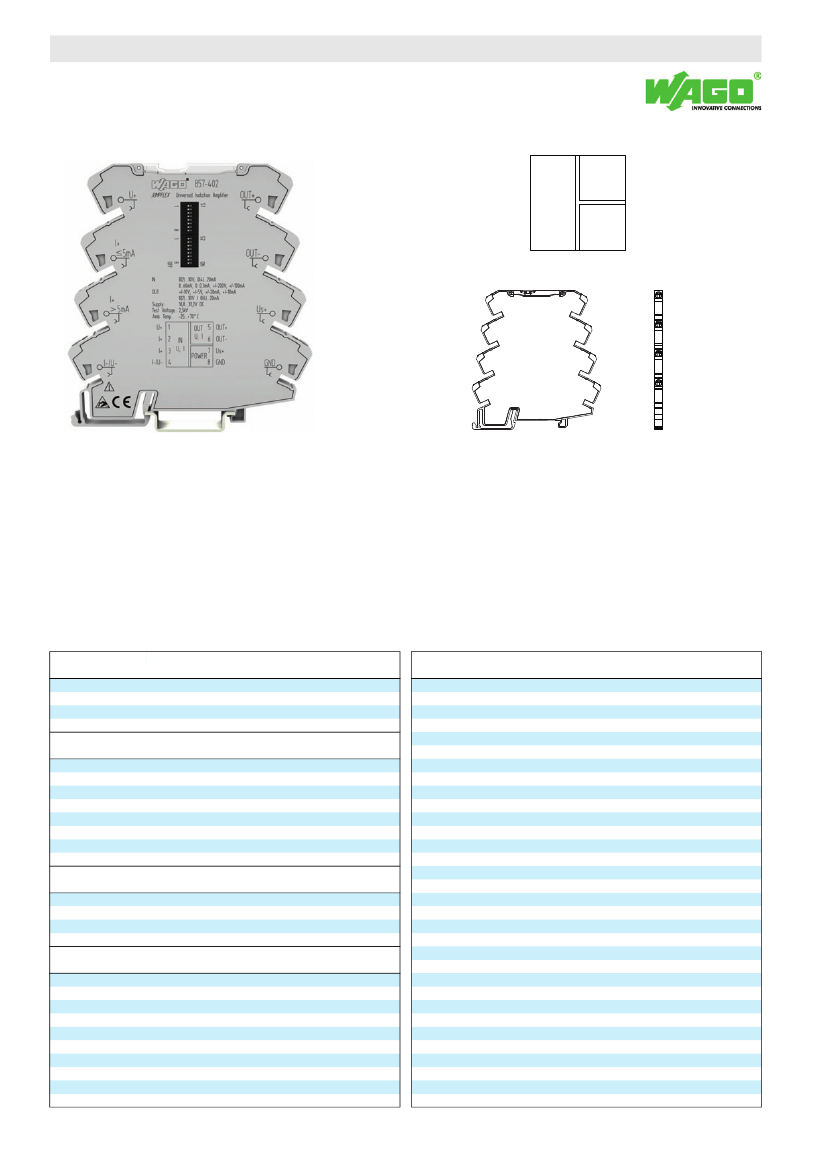

857-402
3
70
JUMPFLEX
®
Transducers
Universal Isolation Amplifier
U+ 1
Interface Modules
I+ 2
I+ 3
I-/U- 4
OUT
U; I
IN
U; I
5 OUT+
6 OUT-
7 Us+
POWER
8 GND 3
_>
<_________
94 mm/3.68 in
_________>
6 mm/0.23 in
Short description:
The 857-402 Universal Isolation Amplifier converts, amplifies and electrically
isolates analog standard signals. The device has a 3-way isolation with a 2.5kV
test voltage. In addition to standard signals, both unipolar and bipolar signals
(± 10V, ± 20mA) up to 200V and 100mA can be set on the input side via DIP
switches, which are accessible from the side of the housing. The analog output
also supports standard unipolar and bipolar signals. Measurement range swit-
ching is calibrated. The device is supplied with 24VDC, which can be efficiently
commoned using lateral push-in type jumper bars. A green LED on the front pa-
nel indicates normal operation.
The isolation amplifier provides safe isolation of input, output and supply circuits
with 2.5kV test voltage according to EN 61140.
A self-resetting fuse effectively protects the current input against overload.
The fuse automatically resets when the overload is removed.
Description
Universal isolation amplifier
Item No.
857-402
Pack.
Unit
1
Technical Data
Configuration
Input signal
DIP switch
Voltage:
± 60 mV, 0 … 60 mV, ± 100 mV,
0 … 100 mV ± 150 mV, 0 … 150 mV,
± 300 mV, 0 … 300 mV , ± 500 mV,
0 … 500 mV, ± 1 V, 0 … 1 V ,± 5 V,
0 ... 5 V, 1 ... 5 V, ± 10 V, 0 ... 10 V,
2 ... 10 V ± 100 V, 0 … 100 V, ± 200 V,
0 … 200 V
Current:
± 0.3 mA, 0 ... 0.3 mA, ± 1 mA,
0 ... 1 mA ,± 5 mA ,0 ... 5 mA ,± 10 mA ,
0 ... 10 mA ,2 ... 10 mA ,± 20 mA ,
0 ... 20 mA ,4 ... 20 mA ,± 50 mA ,
0 ... 50 mA ,± 100 mA ,0 ... 100 mA
Voltage:
± 10 V, 0 ... 10 V, 2 ... 10 V,
± 5 V, 0 ... 5 V, 1 ... 5 V
Current:
± 20 mA, 0 ... 20 mA, 4 ... 20 mA,
± 10 mA, 0 ... 10 mA, 2 ... 10 mA
≤ 600 Ω (I output)
≥ 1 kΩ (U output)
100 Hz / > 5 kHz
(switchable via DIP switch)
DC 24 V
16.8 V ... 31.2 V
< 0.08 % of upper range value
2.5 kV AC, 50 Hz, 1 min.
Accessories
General accessories
see Full Line Catalog 2010/2011
Interface Modules
Approvals
Shipbuilding
4 r
ANSI/ISA 12.12.01
Conformity marking
g
(pending)
(pending)
1
Output signal
General Specifications
Dimensions (mm) W x H x L
Wire connection
Cross sections
6 x 96 x 94
Height from upper-edge of DIN 35 rail
CAGE CLAMP
®
S
solid: 0.08 mm² ... 2.5 mm² /
AWG 28 ... 12
fine-stranded: 0.34 mm² ... 2.5 mm² /
AWG 22 ... 12
9 ... 10 mm / 0.37 in
-25 °C ... +70 °C
-40 °C ... +85 °C
Load impedance
Max. operating frequency
Voltage supply V
N
Supply voltage range
Transmission error
Test voltage
(input/output/supply)
Stripped lengths
Ambient operating temperature
Storage temperature
WAGO Kontakttechnik GmbH & Co. KG
Subject to design changes
17.11.2010
Postfach 2880 - D-32385 Minden
Hansastr. 27 - D-32423 Minden
Phone: +49(0)571/887-0
Fax: +49(0)571/887-169
E-Mail: info@wago.com
www.wago.com
_>
____________
<_________
96 mm/3.76 in
