857-411, 857-412, 857-413, 857-414, 857-415, 857-416
3
74
JUMPFLEX
®
Transducers
Isolation amplifiers, fixed setting for voltage or current signals
IN+ 1
Interface Modules
GND 1 2
Us+ 3
GND 3 4
IN
OUT
5 OUT+
6 GND 2
7 Us+
8 GND 3
POWER
<_________
94 mm/3.68 in
_________>
6 mm/0.23 in

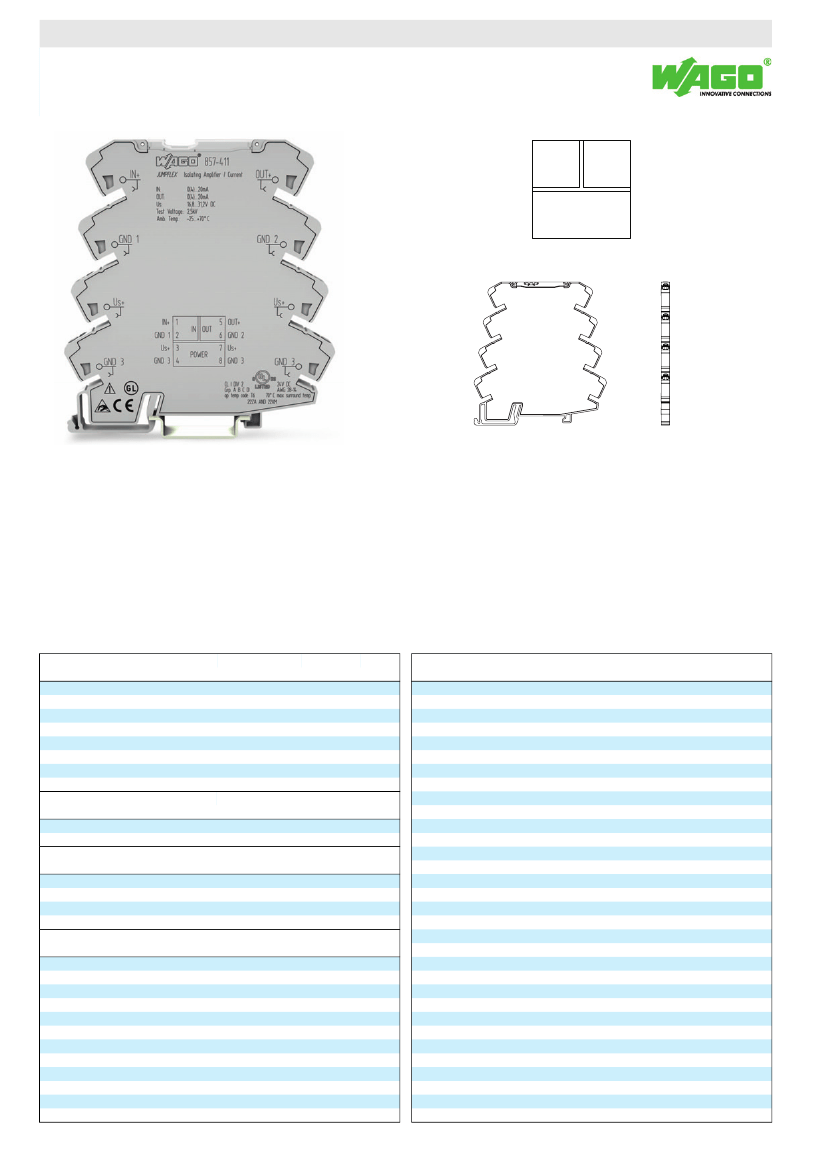

Short description:
The configurable isolation amplifiers convert, amplify, filter and electrically
isolate analog standard signals. The devices have a 3-way isolation with a
2.5kV test voltage. The 857-411 Isolation Amplifier provides electrical isolation
between the 0(4) - 20mA input and the 0(4) - 20mA output analog current
signals. The 857-412 Isolation Amplifier provides electrical isolation between
the 0(2) - 10V input and the 0(2) - 10V output analog voltage signals.
The device is supplied with 24VDC, which can be quickly and cost-effectively
commoned via lateral, push-in type jumper bars.
A green LED on the front panel indicates normal operation. The isolation
amplifiers meet the requirements for safe isolation of input, output and supply
circuits with 2.5kV test voltage according to EN 61140.
Description
Isolation amplifier
Isolation amplifier
Isolation amplifier
Isolation amplifier
Isolation amplifier
Isolation amplifier
Input signal
0(4) ... 20 mA
0(2) ... 10 V
0 ... 10 V
0 ... 10 V
0 ... 20 mA
4 ... 20 mA
Output signal
0(4) ... 20 mA
0(2) ... 10 V
0 ... 20 mA
4 ... 20 mA
0 ... 10 V
0 ... 10 V
Item No.
857-411
857-412
857-413
857-414
857-415
857-416
Pack.
Unit
1
1
1
1
1
1
Technical Data
Input signal
857-411:
0(4) ... 20 mA
857-412:
0(2) ... 10 V
857-413:
0 ... 10 V
857-414:
0 ... 10 V
857-415:
0 ... 20 mA
857-416:
4 ... 20 mA
≤ 50 Ω (I input)
≥ 100 kΩ (U input)
857-411:
0(4) ... 20 mA
857-411:
0(2) ... 10 V
857-411:
0 ... 20 mA
857-411:
4 ... 20 mA
857-411:
0 ... 10 V
857-411:
0 ... 10 V
600 Ω (I output)
2 kΩ (U output)
100 Hz
< 3.5 ms
DC 24 V
16.8 V ... 31.2 V
< 25 mA
< 0.1 % of the full scale value
0.01 % /K
2.5 kV AC, 50 Hz, 1 min
-25 °C ... +70 °C
-40 °C ... +85 °C
Input resistance
Accessories
General accessories
see Full Line Catalog 2010/2011
Interface Modules
Output signal
Approvals
Shipbuilding
4 r
ANSI/ISA 12.12.01
Conformity marking
g
Class I, Div. 2, Grp. ABCD, T4
1
Load impedance
Max. operating frequency
Response time (T
10-90
)
Voltage supply V
N
Supply voltage range
Current consumption at 24 V DC
Transmission error
Temperature coefficient
Test voltage (input/output/supply)
Ambient operating temperature
Storage temperature
General Specifications
Dimensions (mm) W x H x L
Wire connection
Cross sections
6 x 96 x 94
Height from upper-edge of DIN 35 rail
CAGE CLAMP
®
S
solid: 0.08 mm² ... 2.5 mm² /
AWG 28 ... 14
fine-stranded: 0.34 mm² ... 2.5 mm² /
AWG 22 ... 14
9 ... 10 mm / 0.37 in
6 x 96 x 94
Stripped lengths
Dimensions (mm) W x H x L
WAGO Kontakttechnik GmbH & Co. KG
Subject to design changes
18.04.2011
Postfach 2880 - D-32385 Minden
Hansastr. 27 - D-32423 Minden
Phone: +49(0)571/887-0
Fax: +49(0)571/887-169
E-Mail: info@wago.com
www.wago.com
