3/9/2042 Overview

PLUG & SOCKET HOUSING PLUG NYLON; Seri

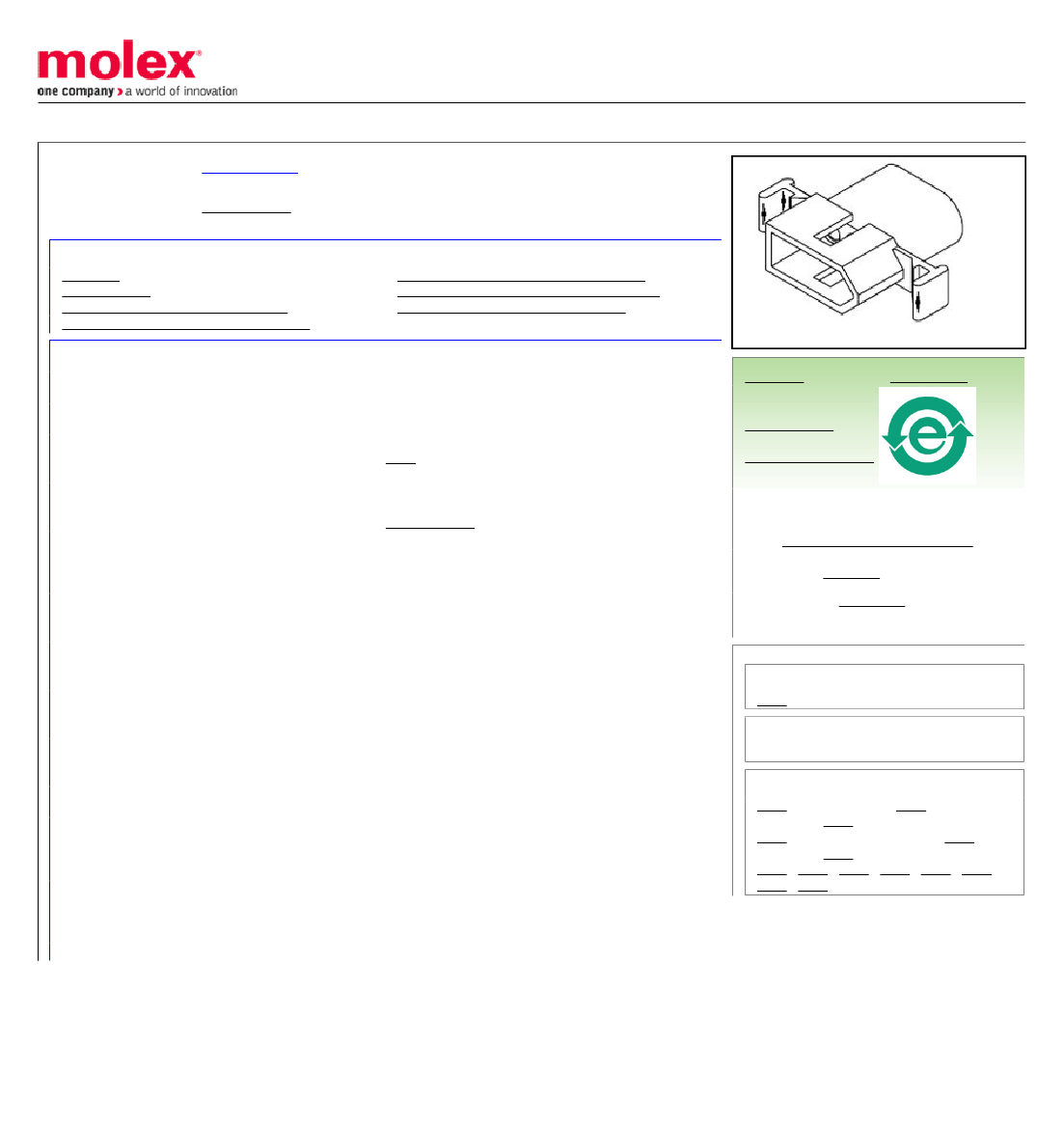

This document was generated on 06/20/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
03-09-2042
Active
Standard .093"
2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 4 Circuits, Single Row
Documents:
3D Model
Drawing (PDF)
Product Specification PS-02-09 (PDF)
Product Specification PS-1490-001 (PDF)
Product Specification PS-1490-002 (PDF)
Product Specification PS-43660-9999 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Comments
Overview
Product Name
Crimp Housings
1490
Power, Wire-to-Wire
14.0A max. can be achieved when housing is used with
42477 or 42478 terminals
Standard .093"
Standard .093"
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Stackable
Temperature Range - Operating
4
(1 x 4)
Natural
94V-2
Dual
No
Nylon
1
Bag
No
5.03mm
No
-40°C to +105°C
Search Parts in this Series
1490Series
Mates With
1490r
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1380 Male Crimp Terminals,
1381 Female Crimp Terminals, 1433 Crimp
Terminals, 1434 Male Crimp Terminals,
1973 , 2151 , 2273 , 2870 , 2871 , 4272 ,
4550 , 6271
Electrical
Current - Maximum per Contact
11A
Material Info
Old Part Number
UPC
1490-P1
800753614840
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-02-09, PS-1490-001, PS-1490-002, PS-43660-9999
SD-1490-*
This document was generated on 06/20/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
