5962-01-144-7464 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962-01-144-7464

5962-01-144-7464: DescriptionMultiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size469KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

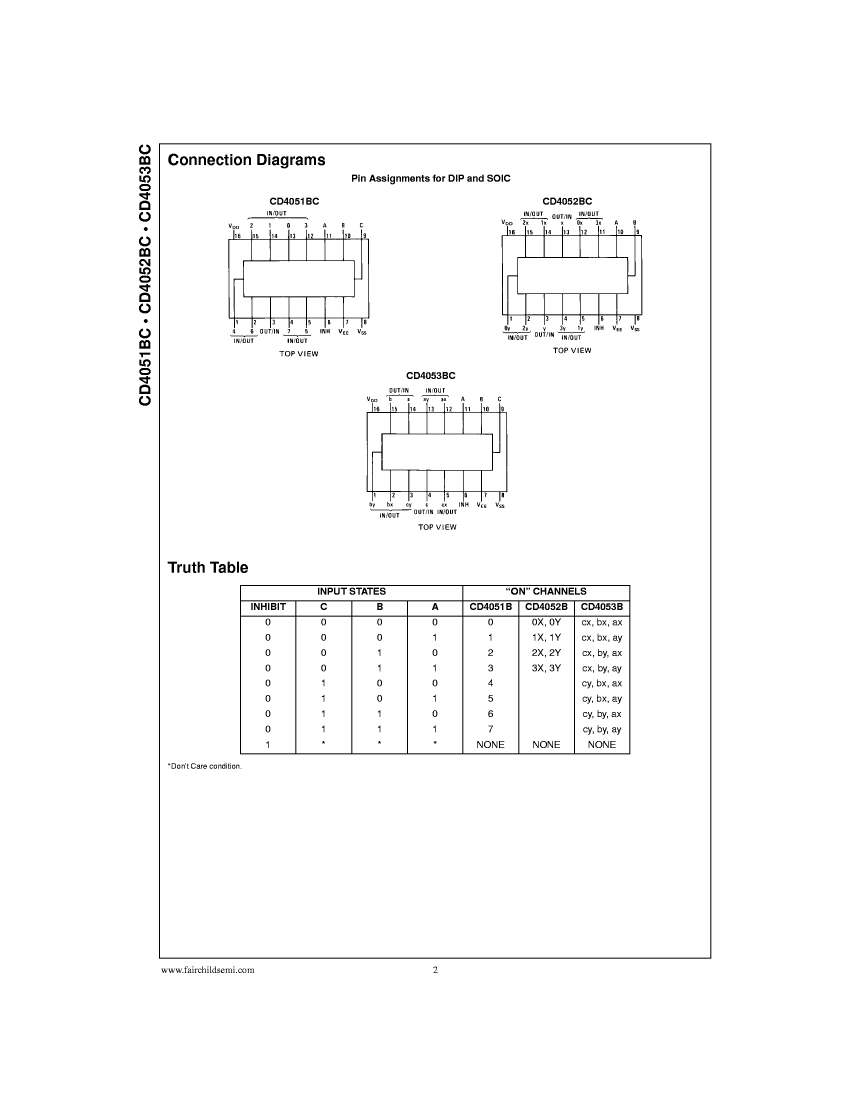

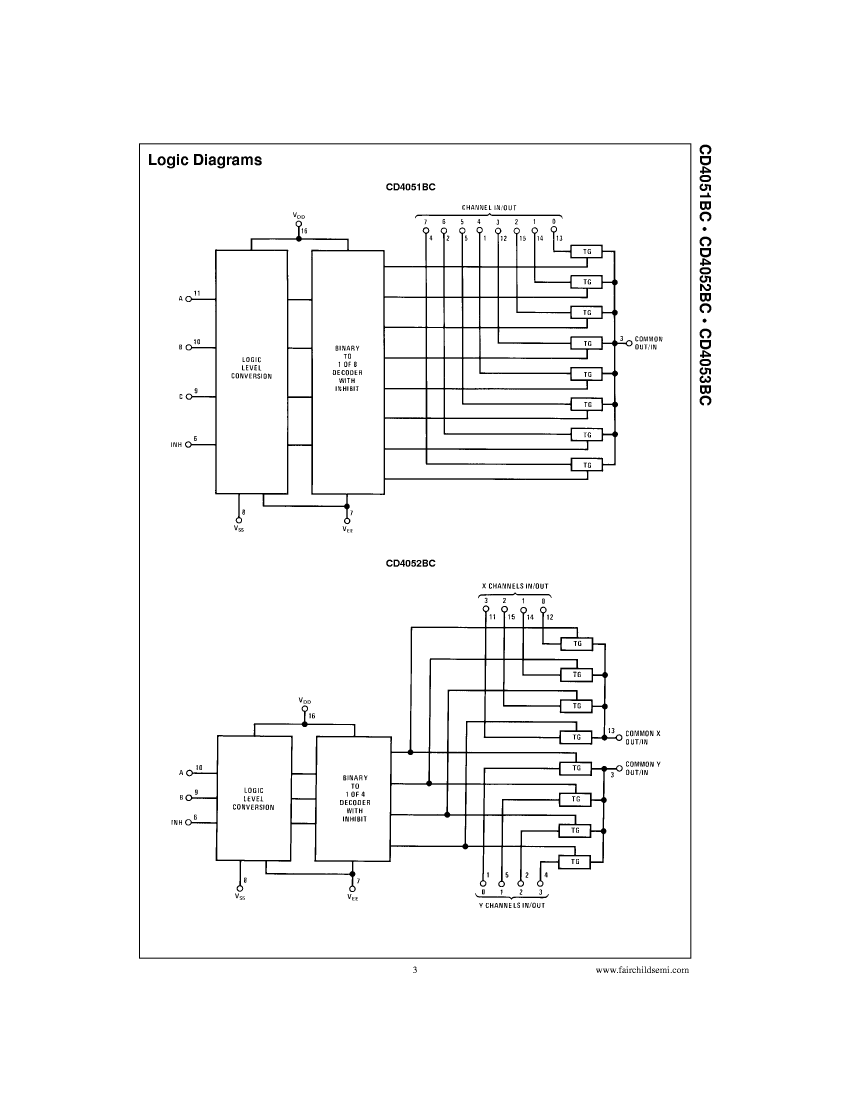

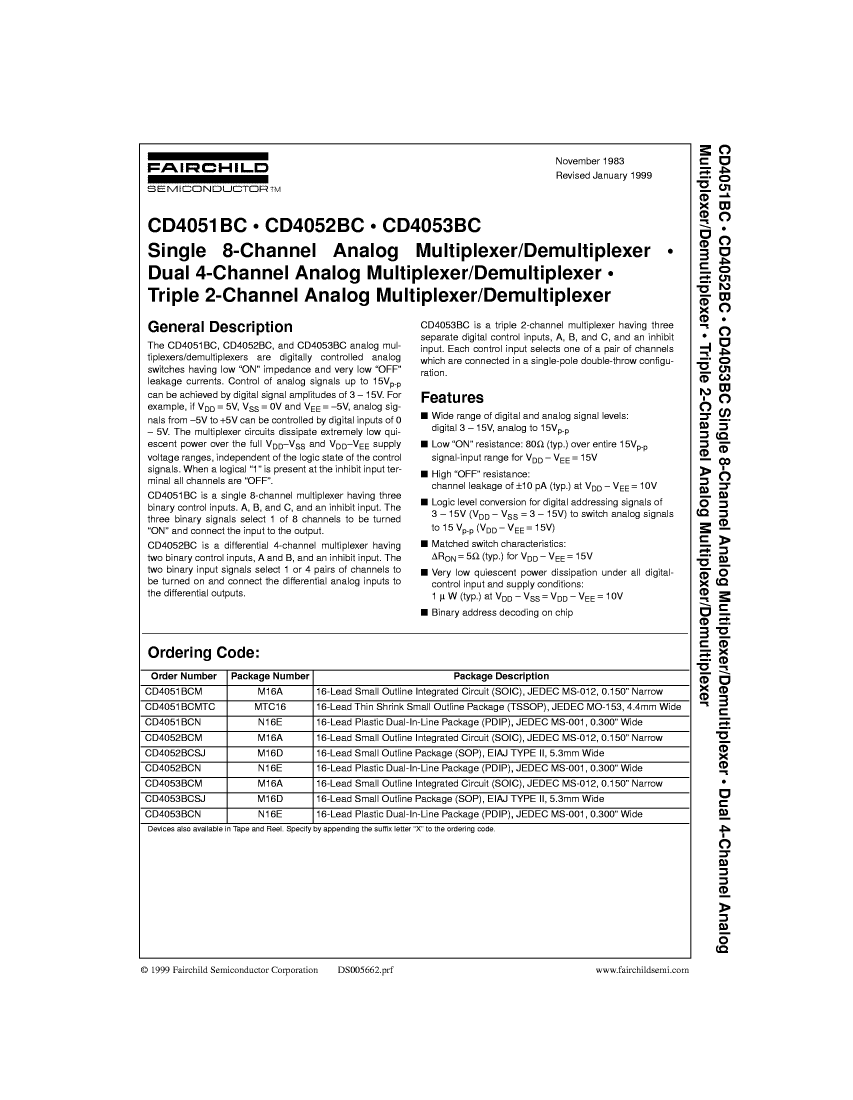

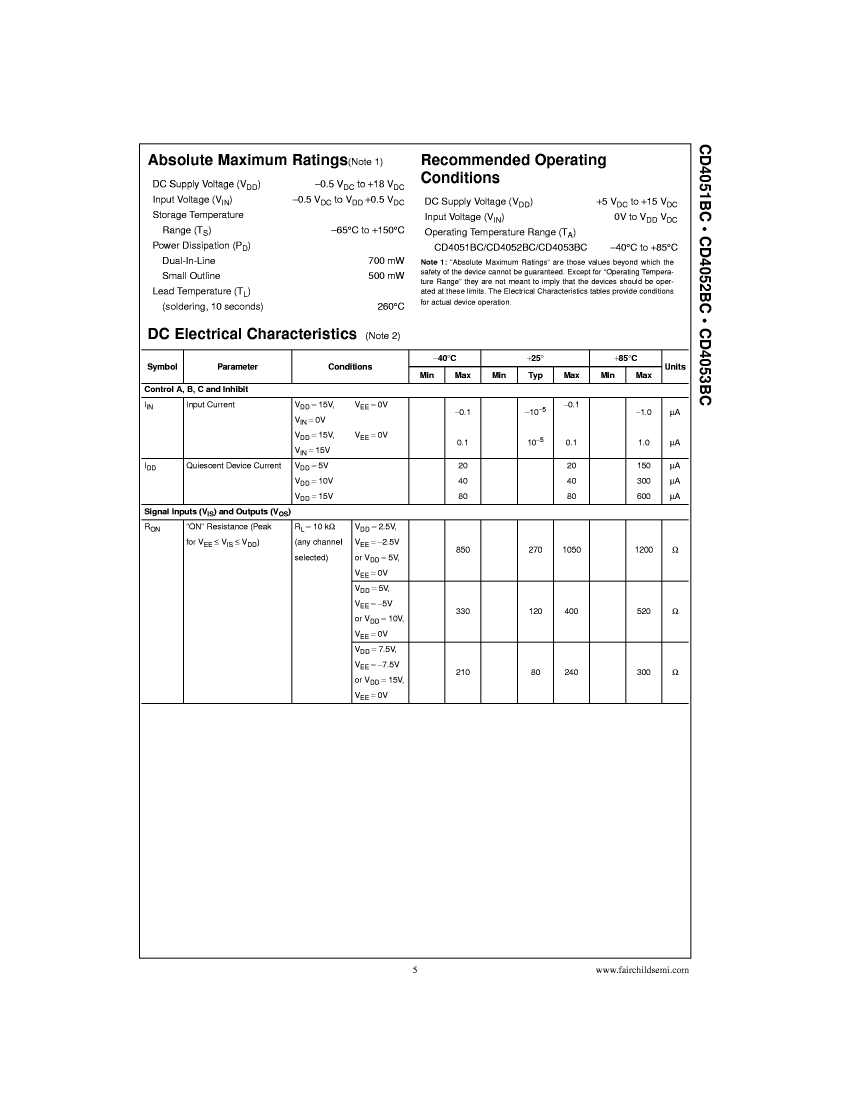

5962-01-144-7464 Overview

Multiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16,

5962-01-144-7464 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	compli
JESD-30 code	R-XDIP-T16
Humidity sensitivity level	2A
Number of channels	2
Number of functions	3
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

5962-01-144-7464 Related Products

	5962-01-144-7464	5962-01-259-1563	4051BDCQR	4051BDC	4052BDMQB	4052BDM	4051BDM	4051BDCQM	5962-01-101-9291
Description	Multiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16,	Multiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 4 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 4 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16,	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant	compli
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A	2A	2A
Number of channels	2	2	8	8	4	4	8	8	8
Number of functions	3	3	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C	125 °C	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250	250	250
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30	30
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Base Number Matches	1	1	1	1	1	1	1	1	-
Maker	-	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
JESD-609 code	-	-	e0	e0	e0	e0	e0	e0	-
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
