Part Number: THI30BF860
www.SunLED.com
T-1 (3mm) INFRARED EMITTING DIODE
Features
●
Radial / Through hole package
●
Reliable & robust
●
Low power consumption
●
Available on tape and reel
●
RoHS Compliant
Package Schematics
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
Lead Solder Temperature
[5mm Below Package Base]
V
R
I
F
iFS
P
D
T
A
Tstg
THI/860
(GaAlAs)
5
50
1000
80
-40 ~ +85
-40 ~ +85
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission CIE127-2007* (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
THI/860
(GaAlAs)
1.35
1.6
10
Unit
V
mA
mA
mW
°C
Unit
V
V
uA
λP
860*
nm
260°C For 3 Seconds
260°C For 5 Seconds
△λ
50
nm
C
30
pF
Part
Number
Emitting
Material
Lens-color
Radiant Intensity Radiant Intensity
CIE127-2007*
CIE127-2007*
(Po
=
mW/sr)
(Po
=
mW/sr)
@20mA
@50mA
min.
typ.
15*
min.
15*
typ.
49*
Wavelength
CIE127-2007*
Nm
λP
Viewing
Angle
2θ 1/2
THI30BF860
GaAlAs
Blue Transparent
8*
860*
50°
*Radiant intensity value and wavelength are in accordance with CIE127-2007 standards.
Jan 02,2014
SDSA6530
V4-Z
Layout: Maggie L.
P. 1/3
Part Number: THI30BF860
www.SunLED.com
T-1 (3mm) INFRARED EMITTING DIODE

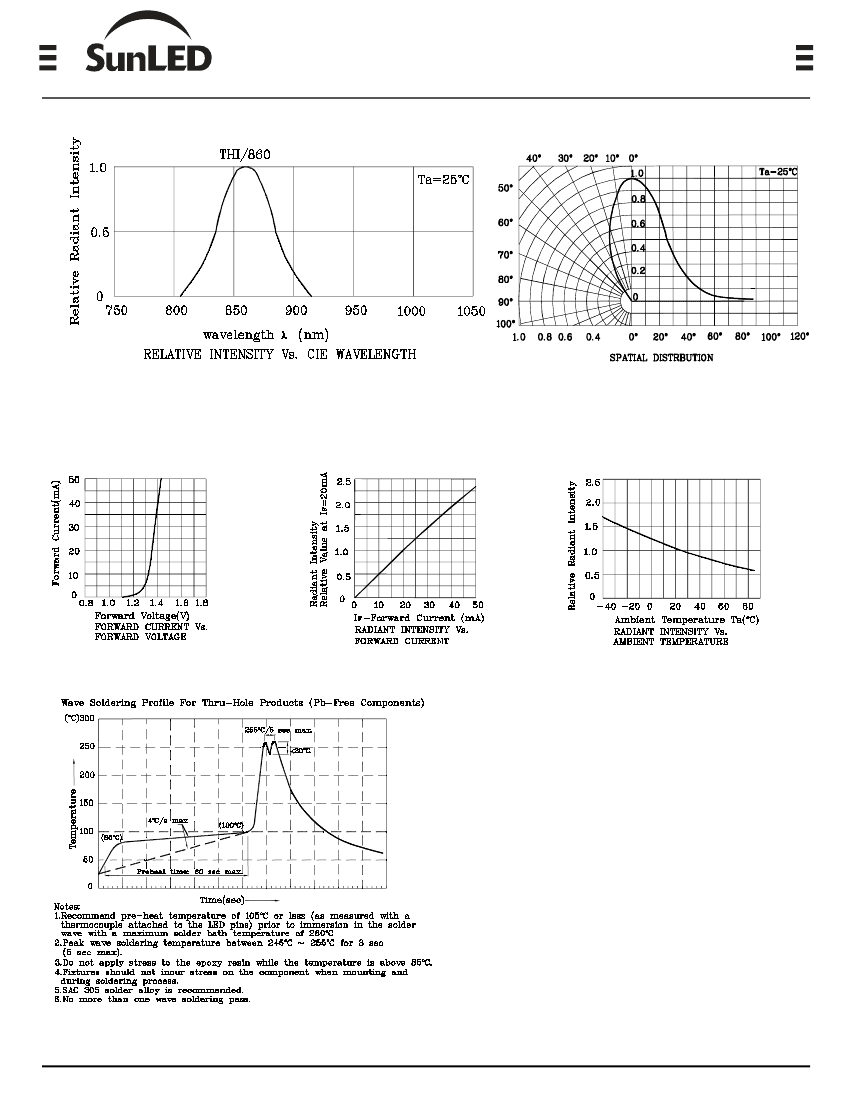

THI/860
Remarks:
If special sorting is required (e.g. binning based on forward voltage,
luminous intensity / luminous flux),
the typical accuracy of the sorting process is as follows:
1. Radiant Intensity / Luminous Flux: +/-15%
2. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Jan 02,2014
SDSA6530
V4-Z
Layout: Maggie L.
P. 2/3
Part Number: THI30BF860
www.SunLED.com
T-1 (3mm) INFRARED EMITTING DIODE

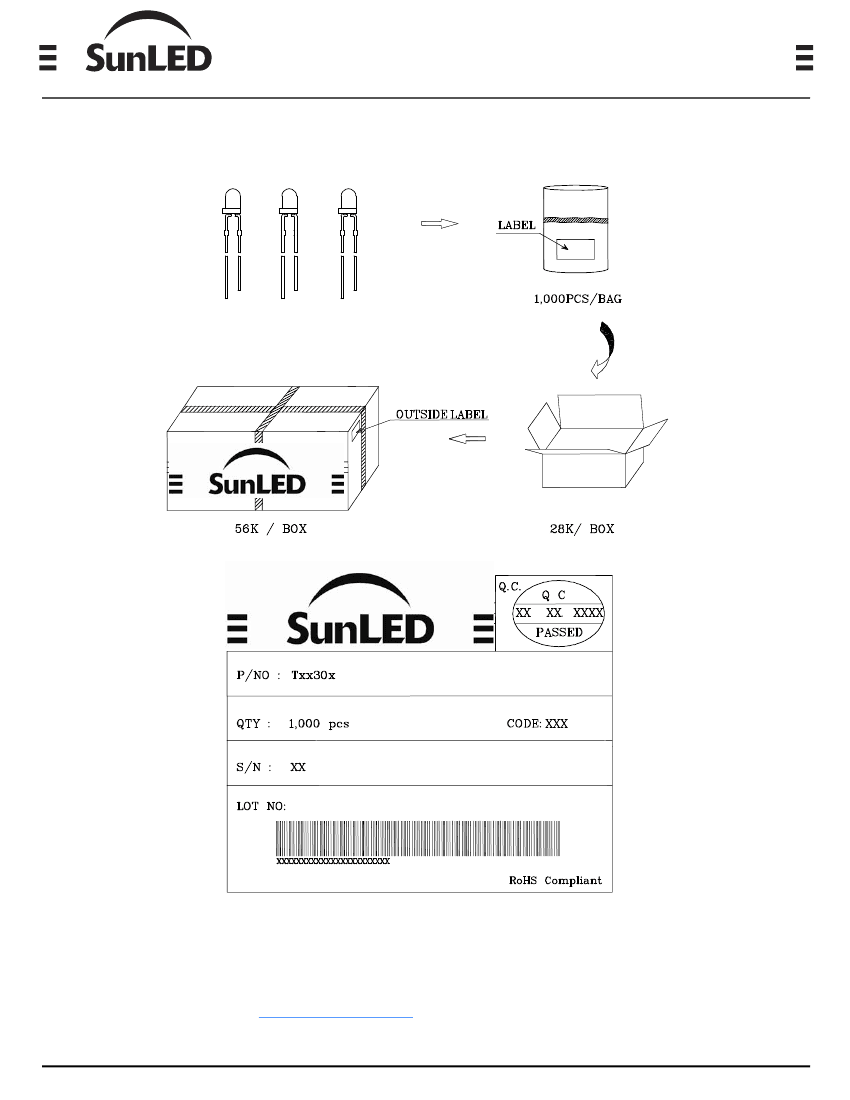

PACKING & LABEL SPECIFICATIONS
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at
http://www.SunLED.com/TechnicalNotes
Jan 02,2014
SDSA6530
V4-Z
Layout: Maggie L.
P. 3/3
