3.2mm
×
2.8mm 0.5W
SMD Type

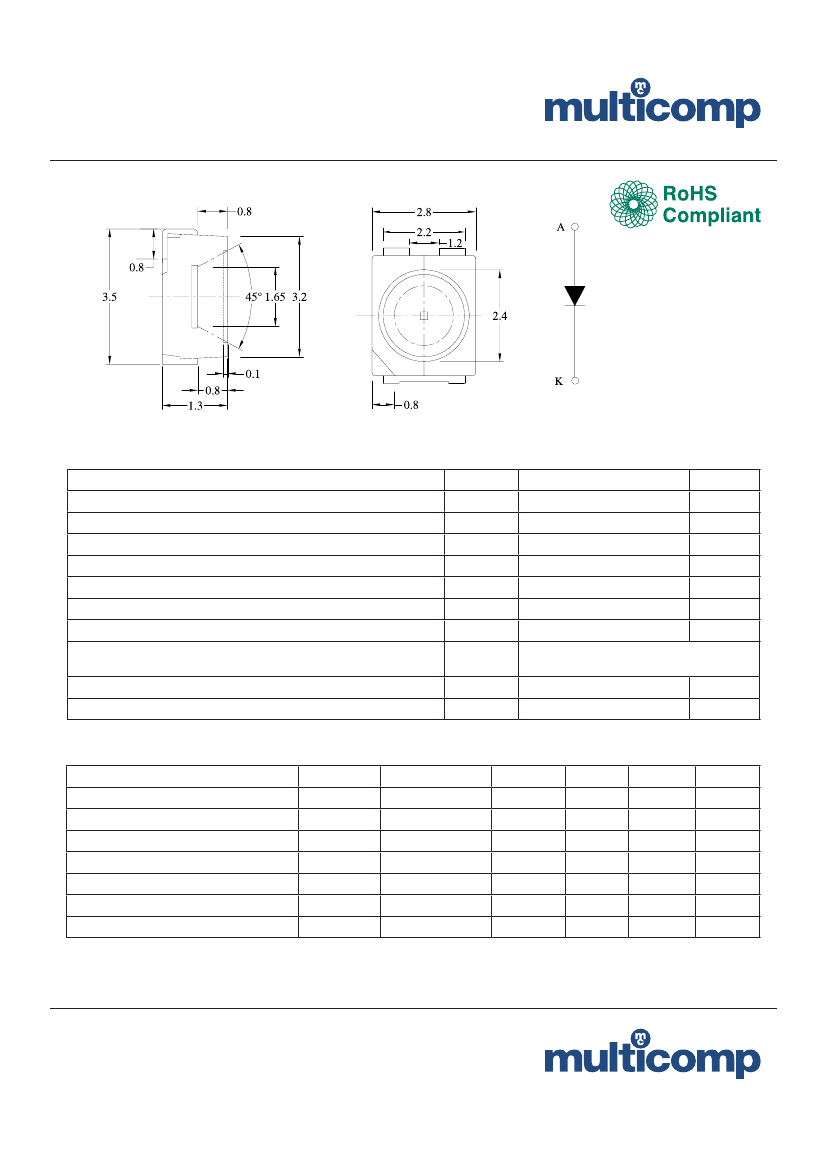

Package Dimensions:
All dimensions are in mm
Tolerance: ±0.25mm
Absolute Maximum Ratings at Ta=25°C
Parameter
LED Junction Temperature
Power Dissipation
Reverse Voltage
D.C. Forward Current
Pulsed Forward Current (1 / 10 Duty Cycle, 0.1ms Pulse Width)
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
Electric Static Discharge Threshold (HBM)
Thermal Resistance Junction to Board (Heat Sink)
Symbol
Tj
P
d
V
r
If
If (Peak)
Topr.
Tstg.
Tsld.
ESD
RΦ
j
-
b
110
420
5
150
300
-40 to +75
-40 to +105
Rating
Unit
°C
mW
V
mA
mA
°C
°C
Reflow Soldering: 260°C for 10sec.
Hand Soldering: 350°C for 3sec.
6,000
26
V
°C/W
Electrical & Optical Characteristics:
Parameter
Luminous Flux*
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Current
Viewing Angle
Spectrum Line Halfwidth
Symbol
Φv
Vf
λp
λd
Ir
2Φ½
∆λ
Condition
If = 150mA
If = 150mA
If = 150mA
If = 150mA
Vr = 5V
If = 150mA
If = 150mA
Min.
3
-
-
-
-
-
-
Typ.
4
3.2
-
465
-
120
26
Max.
-
3.8
-
-
50
-
-
Unit
lm
V
nm
nm
µA
deg
nm
Note : *Luminous Flux os converted from Luminous Intensity.
1. The data is tested by an IS tester.
2. Customer’s special requirements are also welcome.
www.element14.com
www.farnell.com
www.newark.com
Page <1>
02/07/12
V1.0

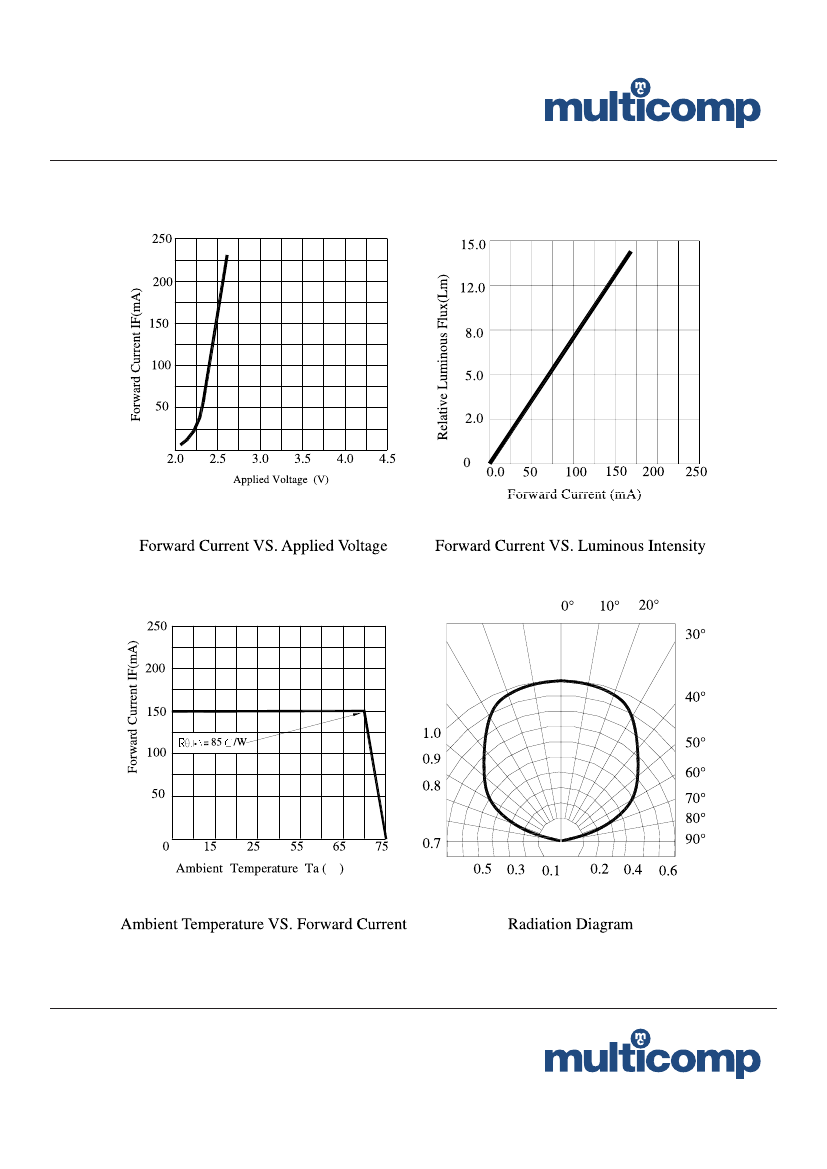

3.2mm
×
2.8mm 0.5W
SMD Type
Recommended Storage Environment:
•
•
•
Temperature: 5°C to 30°C (41°F to 86°F)
Humidity: 60% RH Max.
Use within 7 days after opening of sealed vapour/ESD barrier bags
If moisture absorbent material (silica gel) has faded away or LEDs have exceeded the storage time, baking treatment should
be performed using the following conditions:
• Baking Treatment : 60 ± 5°C for 24 hours
• Fold the opened bag firmly and keep in dry environment
Soldering
Reflow Soldering
Lead Solder
Pre-heat
Pre-heat Time
Peak Temperature
Soldering Time
Condition
12°C ~ 150°C
120sec. max.
240°C max.
10sec max.
Refer to Temperature
Profile 1
Lead-free Solder
180°C ~ 200°C
120sec. max
260°C max.
10sec. max
Refer to Temperature
Profile 2
Soldering Time
3sec. Max
(one time only)
Temperature
350°C Max.
Hand Soldering
*After reflow soldering rapid cooling should be avoided.
Temperature-profile (surface of circuit board)
Use the conditions shown under figure.
Recommended Soldering Pad Design
Use the conditions shown under figure.
Part Number Table
LED Chip
Material
AlGaInP / Si
Emitting Colour
Yellow
Lens Colour
Water Clear
Part Number
703-1037
Important Notice :
