Evacuated Miniature Crystal Oscillator
EX-400
EX-400
Description
The EX-400 provides exceptionally low aging rates and tight temperature stabilities in an extremely small package over a wide
range of environmental conditions. This EMXO series bridges the gap between current large, high precision OCXO’s and smaller
TCXO’s. The EX-400 Series becomes the most economical choice where there is a need for spectral purity, short and long term
stability, along with small size and dramatically reduced power consumption.
Features
•
•
•
•
•
4-Pin Dip
Uses Doubly Rotated Crystal
Low Power Consumption: <0.35 watts @ +25°C
Previous Model Number: EX-380, EX-381, EX-385 series
Frequency Range: 10 MHz - 80 MHz
•
•
•
•
Applications
SONET/SDH, DWDM, FDM, ATM, 3G
Telecom Transmission and Switching Equipment
Wireless Communication Equipment
Military Airborne and Mobile systems
Performance Specifications
Frequency Stabilities1
Parameter
Min
-75
-100
-250
vs. operating temperature range (reference to
+25°C)
-100
-150
-250
-150
-250
Operating Temp
vs. Stratum3 per
GR-1244-
CORE
Holdover
Drift
MTIE
-140
-140
-140
-370
-4.63
Typical
Max
+75
+100
+250
+100
+150
+250
+150
+250
+140
+140
+140
+370
+4.63
+1000
1
2
Units
ppb
Condition
-20... +70°C (10 to 20.49 MHz)
-20... +70°C
(10 to 50 MHz)
-20... +70°C
(10 to 80 MHz)
-40… +85°C (10 to 20.49 MHz)
-40… +85°C
(10 to 50 MHz)
-40… +85°C
(10 to 80 MHz)
-55… +85°C
-55… +85°C
(10 to 50 MHz)
(10 to 80 MHz)
ppb
ppb
ppb
ppb
10-13/sec
ns
minutes
ppm
ppb
ppb
-20… +70°C
-40… +85°C (10 to 50 MHz)
-55… +85°C (10 to 20.49 MHz)
24 hours
Over 7100 seconds
0.16sec < Observe Times < 64 sec
to ± 1ppm of final frequency (1 hour)
to ± 100ppb of final frequency (1 hour)
for fixed frequency
VS ± 5%
Load ± 5%
Page1 of 5
Warm-up Time
Initial Tolerance (10 to 19.9 MHz)
Initial Tolerance (20 to 80 MHz)
vs. supply voltage change (10 to 50 MHz)
vs. supply voltage change (50 to 80 MHz)
vs. load change (10 to 80 MHz)
-1.0
-1.5
-15
-25
-15
+1.0
+1.5
+15
+25
+15
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Frequency Stabilities1 (continued)
Parameter
vs. aging / day (10 to 14.9 MHz)
vs. aging / day (15 to 19.9 MHz)
vs. aging / day (20 to 49.9 MHz)
vs. aging / day (50 to 80.0 MHz)
vs. aging / 1st year (10 to 14.9 MHz)
vs. aging / 1st year (15 to 19.9 MHz)
vs. aging / 1st year (20 to 80 MHz)
vs. aging / 10 year (10 to 14.9 MHz)
vs. aging / 10 year (15 to 19.9 MHz)
vs. aging / 10 year (20 to 80 MHz)
Supply voltage (Vs)
Supply voltage (Vs)
Min
-1.0
-2.0
-3.0
-4.0
-200
-300
-500
-1000
-2000
-3000
4.75
3.135
Typical
Max
+1.0
+2.0
+3.0
+4.0
+200
+300
+500
+1000
+2000
+3000
Units
ppb
Condition
after 30 days of operation
ppb
after 30 days of operation
ppb
after 30 days of operation
Supply Voltage (Vs)
5.0
3.3
5.25
3.465
1.5
0.35
Power Consumption
0.45
0.7
0.8
Watts
VDC
VDC
during warm-up
steady state @ +25°C (10 to 29.99 MHz)
steady state @ +25°C (30 to 80 MHz)
steady state @ -40°C (10 to 29.99 MHz)
steady state @ -40°C (30 to 80 MHz)
RF Output
Signal [Standard]
Load
Signal Level (Vol)
Signal Level (Voh)
Rise/Fall Time
Duty cycle
Signal [Option]
Load
Output Power [Standard]
Output Power [Option}
Tuning Range
Tuning Range
Control Voltage Range
Tuning Slope
Oven Alarm Logic
4.0
2.6
±1.0
±2.0
±3.0
±4.0
0
Positive
0.4
VDC
During Warmup
Vs=5.0 Vdc After Warmup
Vs=3.3 Vdc After Warmup
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
Page2 of 5
0
+3
40
50
+4
+7
4.0
2.6
+5
60
Sinewave
ohm
dBm
dBm
50 ohm load
50 ohm load
15
0.4
HCMOS
pF
VDC
VDC
ns
%
Vs=5 Vdc
Vs=3.3 vdc
(10-80%) of Vs
(Voh-Vol)/2
Frequency Tuning (EFC)
Fixed OCXO; No adjust
±5.0
±8.0
±10.0
±12.0
Vs
ppm
VDC
with 10 to 14.99 MHz
with 15 to 20.48 MHz
with 20.5 to 49.99 MHz
with 50 to 80 MHz
Additional Parameters
-100
-130
-140
-145
-150
-80
-110
-130
-135
-140
Phase Noise @ 20 MHz (Typical)
dBc/Hz
Phase Noise @ 50 MHz (Typical)
dBc/Hz
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Additional Parameters (continued)
Parameter
Allan Deviation
Acceleration Sensitivity (10 MHz)
Weight
Min
Typical
Max
0.2
0.5
1.0
5
5.5
5.5
30
Units
ppb
ppb/g
g
Condition
Tau = 1 sec to 10 sec (10 to 20.49 MHz)
Tau = 1 sec to 10 sec (20.5 to 80 MHz)
Total Gamma
Absolute Maximum Ratings
Supply Voltage
Output Load
Operable temperature range
Storage temperature range
Vibration - Sine
Vibration - Random
Shock
Solderability
-55
-55
VDC
pF
°C
°C
with Vs=5 V
with Vs=3.3 V
+85
+85
Standard Environmentals
MIL-STD-202, Method 204, Condition D (20 G, 10Hz-2000Hz)
MIL-STD-202, Method 214, Condition I-F (20 Grms, 10Hz-2000Hz)
MIL-STD-202, Method 213, Condition E (1000 G, 0.5ms, halfsine)
MIL-STD-202, Method 208

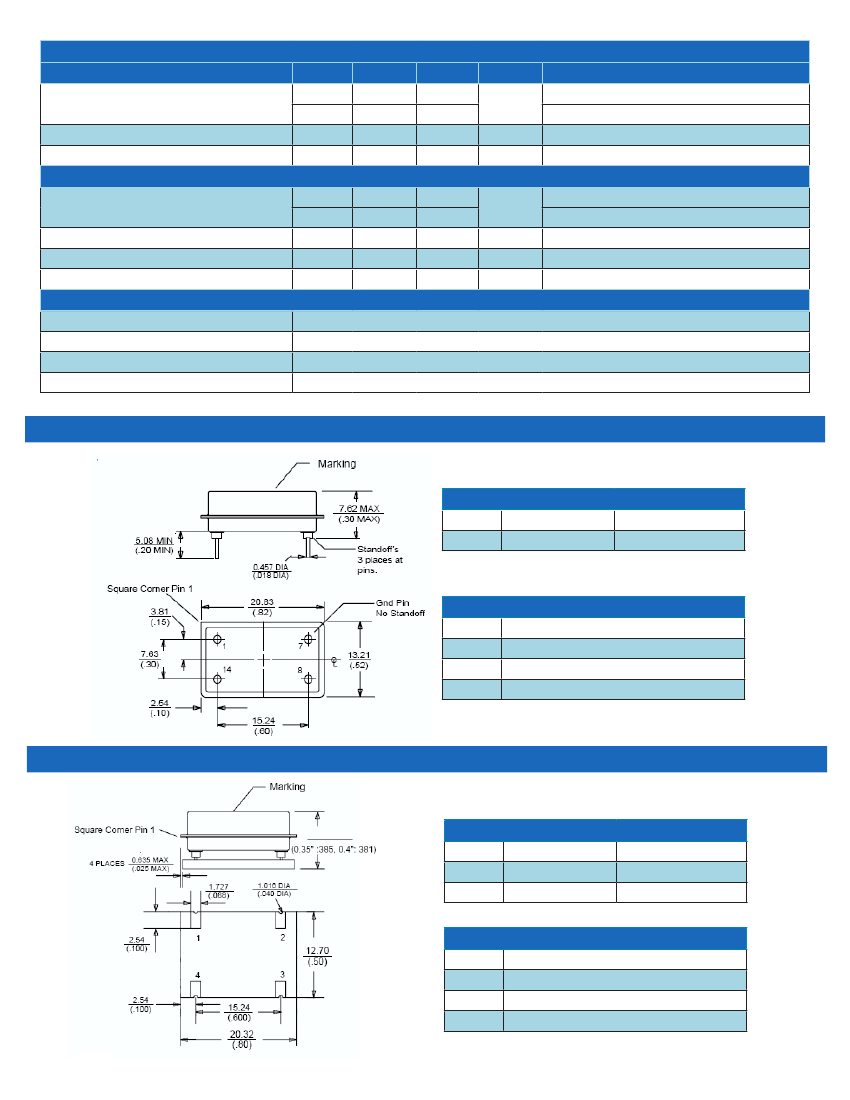

Outline Drawing / Enclosure
Dimensions in mm (inches)
Type A
Code
0
Height “H”
7.62
Pin Length “L”
5.08
Pin Connections
1
7
8
14
EFC \ No Connect \ Oven Monitor
Ground (Case)
RF Output
Supply Voltage Input
Outline Drawing / Enclosure
Dimensions in mm (inches)
Type B
Code
1
2
Height “H”
8.9 (0.35”)
10.2 (0.4”)
Pin Length “L”
NA
NA
Pin Connections
1
7
8
14
EFC \ No Connect \ Oven Monitor
Ground (Case)
RF Output
Supply Voltage Input
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Page3 of 5
Recommended Reflow Profile
tp
T
p
Ramp up
Ts
Critical Zone
T
L
to T
p
T
L
Temperature
t
L
Ramp dow n
Ts
min
ts
preheat
25
t 25°C to peak
Time
Profile Feature
PRECAUTION:
Sn-Pb Assembly
Profile Feature
Sn-Pb Assembly
Series shall not expose to temperature higher than 230°C. If exposing to temperature higher than
230°C, stability and power consumption may permanently degrade.
3°C/second max.
135°c
155°c
60-90 seconds
3°C/second max.
183°C
45-60 seconds
max 220°C
Time within 5°C of actual
Peak Temperature (tp)
Ramp-down Rate
10-20 seconds max.
6°C/second max.
Time 25°C to Peak Temperature
Time maintained above
- Temperature (TL)
- Time (tL)
4 minutes max.
183°C
45-60 seconds
Average ramp-up rate (TL to Tp)
Preheat -Temperature Min Tsmin)
-Temperature Min Tsmax)
-Time (min to max) (ts)
Tsmax to TL - Ramp-up Rate
Time maintained above
- Temperature (TL)
- Time (tL)
Peak Temperature (Tp)
Note: All temperatures refer to topside of the package, measured on the package body surface.
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Page4 of 5
EX - 400 0 - D A J - 107 0 - 10M0000000
Product Family
EX: EMXO
Package
13x20mm
Height
0: A 7.62mm (HCMOS only)
1: B 8.9mm (HCMOS only)
2: B 10.2mm (Sinewave only)
Supply Voltage
D: +5V
E: +3.3V
RF Output Code
A: HCMOS
E: Sinewave
Frequency
Frequency Control
0: Fixed Frequency (HCMOS)
1: Fixed Frequency (0 dBm)
2: Fixed Frequency (+3 dBm)
3: Electrical Tuning (HCMOS)
4: Electrical Tuning (0 dBm)
5: Electrical Tuning (+3 dBm)
6: Oven Alarm Option (HCMOS)
7: Oven Alarm Option (0 dBm)
8: Oven Alarm Option (+3 dBm)
Stability Code
758: ±75ppb
107: ±100ppb
157: ±150ppb
257: ±250ppb
507: ±500ppb
147: ±140ppb(ST3)
Temperature Range
A: -55°C to +85°C
E: -40°C to +85°C
J: -20°C to +70°C
J: -20°C to +70°C
10 to 20 MHz
10 to 65 MHz
10 to 65 MHz
10 to 80 MHz
10 to 80 MHz
10 to 65 MHz
Ordering Information
Temperature Range and Stability Table
Stability/Temperature A: -55°C to +85°C
758: (±75ppb)
107: (±100ppb)
157: (±150ppb)
257: (±250ppb)
507: (±500ppb)
147: (±140ppb(ST3))
10.2 (0.4”)
10 to 40 MHz
10 to 65 MHz
10 to 80 MHz
10 to 80 MHz
10 to 65 MHz
E: -40°C to +85°C
NA
10 to 40 MHz
10 to 65 MHz
10 to 80 MHz
10 to 80 MHz
10 to 65 MHz
Frequency Range
10 to 20 MHz
10 to 40 MHz
10 to 65 MHz
10 to 80 MHz
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5. Contact factory for availability.
For Additional Information, Please Contact
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Europe:
Vectron International
1589 Century Avenue, the 19th Floor
Chamtime International Financial Center
Shanghai, China 200131
Tel: 86.21.6081.2888
Fax: 86.21.6163.3598
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 4-2-2013 daf
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
