LN448YP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LN448YP

LN448YP: DescriptionSingle Color LED, Amber, Diffused, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size42KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

LN448YP Overview

Single Color LED, Amber, Diffused, 5mm,

LN448YP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Panasonic
Reach Compliance Code	unknown
color	AMBER
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	1.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	10 mm
method of packing	BULK
peak wavelength	590 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	5 mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	165 deg

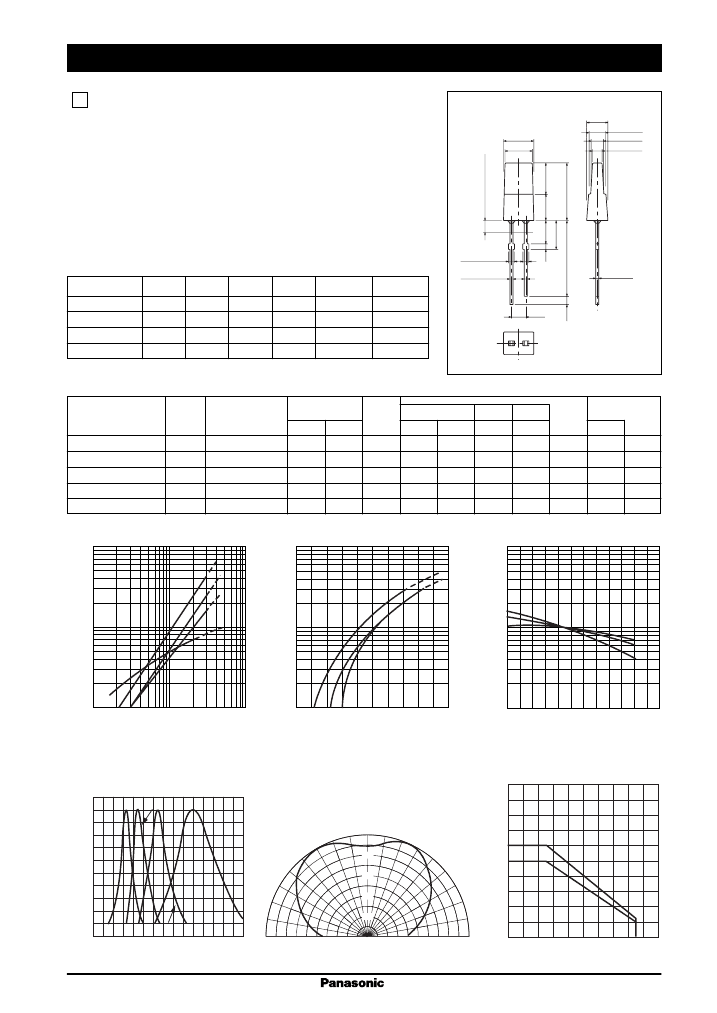

LN448YP Preview

Square Type

5.0 mm

2.0 mm Series

Conventional Part No.

Global Prat No.

Lighting Color

2.0 Max. NOT SOLDERED

5.2

0.2

5.0

0.2

Unit: mm

4.0

0.2

3.4

0.2

2.2

0.2

2.0

0.2

10.0

0.2

LN248RP ··················· LNG248RDR ············ Red

LN348GP ·················· LNG348GDG ··········· Green

LN448YP ·················· LNG448YDX ··········· Amber

LN848WP ················· LNG848WDD ·········· Orange

Absolute Maximum Ratings (T

25°C)

Lighting Color P

(mW) I

(mA) I

(mA)

∗

(V)

Red

150

Green

150

Amber

150

Orange

150

Pulse width 1 msec. The condition of I

is duty 10%, Pulse width 1 msec

−

1.0

0.1

−

0.6

0.1

3.9

4.9

0.3

13.0

1.0

4.5

5.5

0.6

0.1

opr

(°C)

−25 ∼ +85

stg

(°C)

−30 ∼ +100

2.54

1.5

1: Anode

2: Cathode

Electro−Optical Characteristics (T

25°C)

Conventional

Part No.

LN248RP

LN348GP

LN448YP

LN848WP

Unit

Lighting

Color

Red

Green

Amber

Orange

−

Lens Color

Red Diffused

Green Diffused

Amber Diffused

White Diffused

−

100

Typ

0.6

1.0

1.5

2.5

mcd

Min

0.25

0.40

0.60

0.90

mcd

Typ

2.2

2.1

Max

2.8

Typ

700

565

590

630

∆λ

Typ

100

Max

µA



48W

448



Reletive Luminous Intensity

500

300



Luminous Intensity

Forward Current

0.5

0.3

48RP

LN2

100

LN4

48Y

LN348

LN848W

LN4

LN2

48R

8YP

0.1

100

LN2

LN34

48RP

8GP

1.6

1.8

2.0

2.2

2.4

−20

100

Forward Current

Forward Voltage

Ambient Temperature

Relative Luminous Intensity

Wavelength Characteristics

Relative Luminous Intensity

100

30°

40°

500

LN848WP

600

50°

60°

70°

80°

700

800

90°

100

40°

20°

60°

70°

80°

90°

100

80°



Directive Characteristics

20° 10°

0°

10° 20°

30°

40°

50°

Forward Current

LN348GP

LN448YP

LN248RP

N44

48G

100

Wavelength

Relative Luminous Intensity

Ambient Temperature

189

Caution for Safety

Gallium arsenide material (GaAs) is used

in this product.

DANGER

Therefore, do not burn, destroy, cut, crush, or chemi-

cally decompose the product, since gallium arsenide

material in powder or vapor form is harmful to human

health.

Observe the relevant laws and regulations when dispos-

ing of the products. Do not mix them with ordinary in-

dustrial waste or household refuse when disposing of

GaAs-containing products.

Request for your special attention and precautions in using the technical information

and semiconductors described in this material

(1) An export permit needs to be obtained from the competent authorities of the Japanese Government if any of the

products or technologies described in this material and controlled under the "Foreign Exchange and Foreign

Trade Law" is to be exported or taken out of Japan.

(2) The technical information described in this material is limited to showing representative characteristics and

applied circuit examples of the products. It does not constitute the warranting of industrial property, the granting

of relative rights, or the granting of any license.

(3) The products described in this material are intended to be used for standard applications or general electronic

equipment (such as office equipment, communications equipment, measuring instruments and household ap-

pliances).

Consult our sales staff in advance for information on the following applications:

•

Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion

equipment, life support systems and safety devices) in which exceptional quality and reliability are required,

or if the failure or malfunction of the products may directly jeopardize life or harm the human body.

•

Any applications other than the standard applications intended.

(4) The products and product specifications described in this material are subject to change without notice for

reasons of modification and/or improvement. At the final stage of your design, purchasing, or use of the prod-

ucts, therefore, ask for the most up-to-date Product Standards in advance to make sure that the latest specifi-

cations satisfy your requirements.

(5) When designing your equipment, comply with the guaranteed values, in particular those of maximum rating, the

range of operating power supply voltage and heat radiation characteristics. Otherwise, we will not be liable for

any defect which may arise later in your equipment.

Even when the products are used within the guaranteed values, redundant design is recommended, so that

such equipment may not violate relevant laws or regulations because of the function of our products.

(6) When using products for which dry packing is required, observe the conditions (including shelf life and after-

unpacking standby time) agreed upon when specification sheets are individually exchanged.

(7) No part of this material may be reprinted or reproduced by any means without written permission from our

company.

Please read the following notes before using the datasheets

A. These materials are intended as a reference to assist customers with the selection of Panasonic semiconduc-

tor products best suited to their applications.

Due to modification or other reasons, any information contained in this material, such as available product

types, technical data, and so on, is subject to change without notice.

Customers are advised to contact our semiconductor sales office and obtain the latest information before

starting precise technical research and/or purchasing activities.

B. Panasonic is endeavoring to continually improve the quality and reliability of these materials but there is always

the possibility that further rectifications will be required in the future. Therefore, Panasonic will not assume any

liability for any damages arising from any errors etc. that may appear in this material.

C. These materials are solely intended for a customer's individual use.

Therefore, without the prior written approval of Panasonic, any other use such as reproducing, selling, or

distributing this material to a third party, via the Internet or in any other way, is prohibited.

2001 MAR

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
