GTXO-536T/FRFREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GTXO-536T/FRFREQ

GTXO-536T/FRFREQ: DescriptionHCMOS/TTL Output Clock Oscillator, 1.2MHz Min, 45MHz Max, DIL-14; CategoryPassive components oscillator; File Size68KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

GTXO-536T/FRFREQ Overview

HCMOS/TTL Output Clock Oscillator, 1.2MHz Min, 45MHz Max, DIL-14

GTXO-536T/FRFREQ Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
Reach Compliance Code	unknown
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	1%
Manufacturer's serial number	GTXO-536
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	45 MHz
Minimum operating frequency	1.2 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	2 TTL, 15 pF
physical size	18.8mm x 12.3mm x 5.0mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

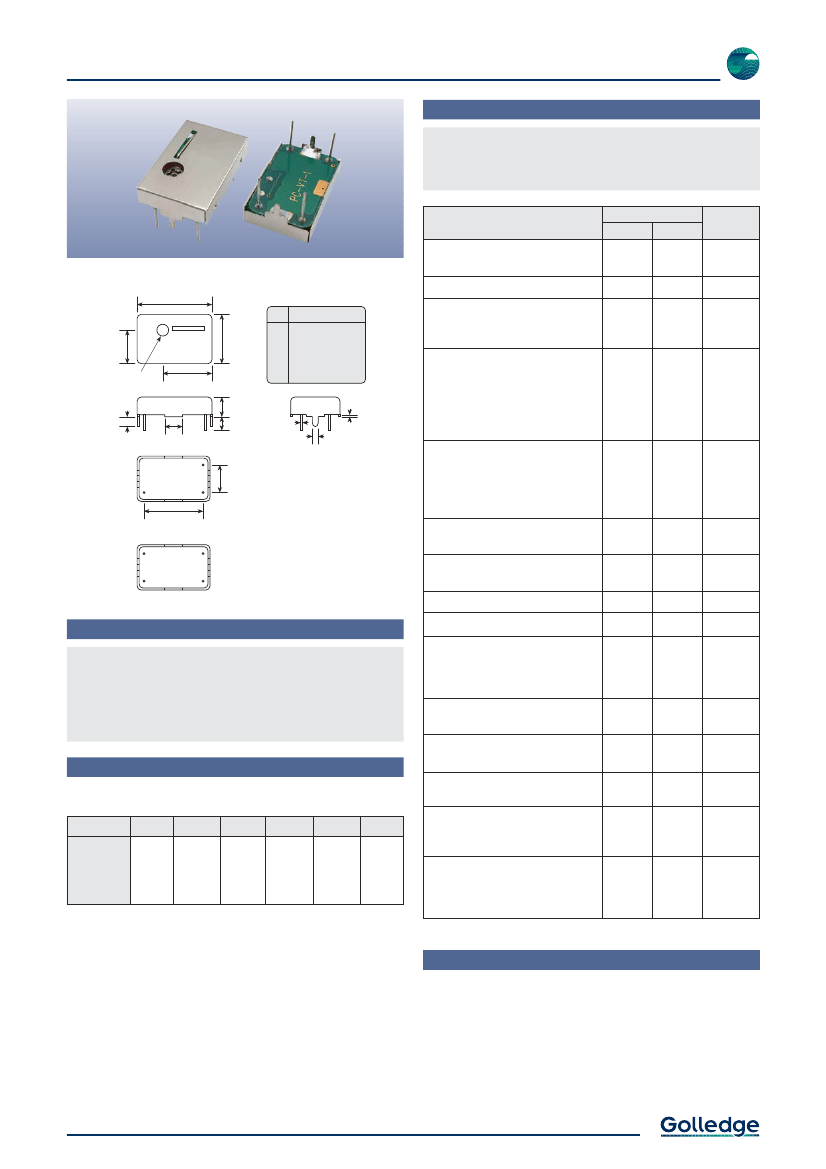

OBSOLETE - DO NOT USE

5V TCXO HCMOS

Specifications

GTXO-536T: Internal trimmer

GTXO-536V: Voltage adjustment + internal trimmer

Variant

GTXO-536T

GTXO-536V

Option

Codes

GTXO-536

Parameters

Package style:

18.80

(max)

8.40

3.50Ø

2.50

12.30

(max)

12.45

5.00

(max)

4.00

(min)

CONNECTION

Not connected or

Freq adjustment

Frequency range:

1.20 ~ 45.0MHz

Frequency tolerance:

±1.0ppm max (<30.0MHz)

±2.0ppm max ( 30.0MHz)

Frequency stability:

±5.0ppm

±3.0ppm

±2.5ppm

±2.0ppm

±1.5ppm

±1.0ppm

0 to +50°C

-10 to +60°C

-20 to +70°C

-30 to +75°C

-40 to +85°C

Ground

Output

Supply

0.50

0.50Ø

1.00

4.00

15.24

Temperature range:

7.62

GTXO-536T

Storage temperature range:

-40 to +85°C

GTXO-536V

Scale 1:1

Frequency vs supply voltage:

±0.5ppm (V

±5%)

Ageing:

±1.0ppm max first year

Features

Supply voltage (V

+5.0V (±5%)

Supply current:

15mA max (<20.0MHz)

25mA max (20.0 ~ 35.0MHz)

30mA max ( 35.0MHz)

Driving ability:

15pF HCMOS / 2 TTL

Logic levels:

‘0’ level = 0.4V max

‘1’ level = 90%V

min

HCMOS / TTL compatible output

Frequencies up to 45.0MHz

14-pin DIL compatible

Frequency Stability

The table shows option codes for the available combinations

of frequency stability (in ppm) and temperature range.

±5.0

-40 to +85°C

-30 to +75°C

-20 to +70°C

-10 to +60°C

0 to +50°C

±3.0

±2.5

±2.0

±1.5

±1.0

Waveform symmetry @ 50%V

40:60 max

Frequency adjustment:

±3ppm min by internal trimmer

±8 ~ ±15ppm, +2.5 ±2.0V

Phase noise (@ 1.0kHz):

-135dBc/Hz max (<12.0MHz)

-130dBc/Hz max (12.0 ~ 20.0MHz)

-125dBc/Hz max ( 20.0MHz)

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + variant + option codes + frequency

eg:

GTXO-536V/JS 10.0MHz

±2.5ppm -30+75°C (standard)

Option code X (eg GTXO-536V/X) denotes a custom spec.

Tel:

+44 1460 256 100

05 Jan 2006

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
