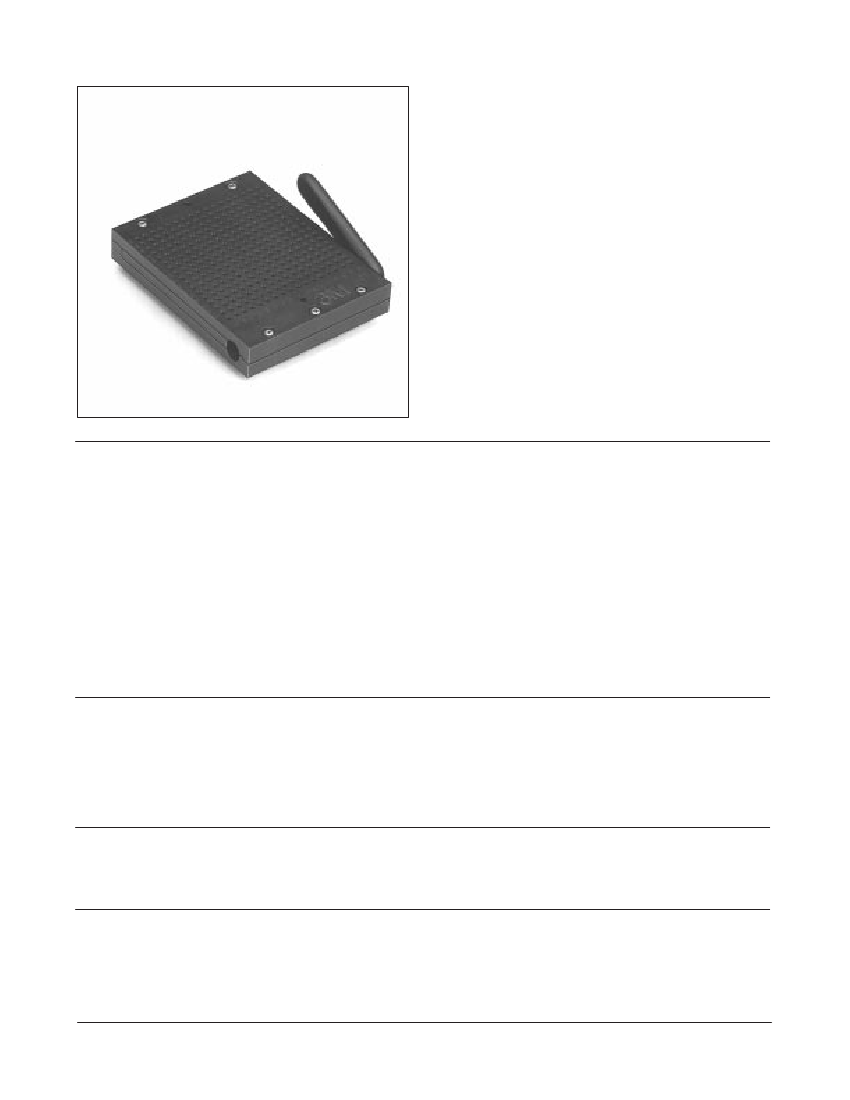

Test & Burn-In Grid ZIP Sockets
Pin Grid Arrays
• Lever actuated zero insertion force mechanism
• Rugged 3-plate construction for durability and
electrical reliability
• Available in 10 x 10 through 25 x 25 matrices
• PTFE coated stainless steel handle - durable
and safe in high humidity environment
• Optical locating holes for robotics
loading/unloading
• Repairable - contacts, handles, top-plate, and
cam plate are replaceable
• Available with flush handle option for use
with test probes and ease of board stacking
Date Issued: February 19, 2001
7
TS-0358-14
Sheet 1 of 4
Physical
Insulation
Material:
Flammability:
Color:
Marking:
Cam Handle
Material:
Contact
Material:
Plating:
Polyethersulfone (PES)
UL 94V-0
Black (PES)
Part Number Identifier and Logo on All
Stainless Steel
Beryllium Copper
30
m
" (0.76
m
m) Gold over 50
m
" (1.3
m
m) Nickel
Electrical
Current Rating:
1 Amp
Insulation Resistance:
> 1
¥
10
12
W
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Operating Temperature Rating:
PES: - 55° to + 150°
C
∞C
∞
Mechanical
PES/BeCu
A. When used as a test socket at room temperature 24°
C the socket will last
∞
25,000 actuations.
B. Based on field experience, under normal burn-in conditions up to a maximum of
150∞C for PES, the socket should last an average of four years.
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
Test & Burn-In Grid ZIP Sockets
Pin Grid Arrays
A
B
.02
[ 0.5 ]
G
Closed
.50
[ 12.7 ]
.26 Ref
[ 6.5 ]
4X #0-80 x 5/16 Long Phillips Pan-Hd
(Requires .070 [1.78] DIA Clearance Hole)
1 1.00
[ 25.4 ]
2 #0-80 5/16 Phillips Pan Hd
C
E
C
L
Optic Pickup
2X Dia. .062 [ 1.58 ]
.20
[ 5.1 ]
D
90°
∞
.10
[ 2.5 ]
.21
[ 5.3 ]
Standard
Handle
Open
F Open
.40
[ 10.3 ]
Closed
.40
[ 10.2 ]
.020
[ 0.51 ]
Standoffs
.010 x .028
[ 0.25 ] [ 0.71 ]
Contact Tails
.100 Typ
[ 2.54 ]
.13
[ 3.3 ]
Contact Tail
Length
Tolerance
Dimension
inch
(mm)
.000
(.00)
.00
(.0)
Notes:
1 25 x 25 only.
Tolerance
±
.010
±
.005
(±
.25)
(±
.13)
2 Present only on 15 x 15 and larger.
Ordering Information
2XXX-63XX-XXX-1902
Number of Contacts
6310 – 10x10
6311 – 11x11
6313 – 13x13
6315 – 15x15
6317 – 17x17
6319 – 19x19
6321 – 21x21
6325 – 25x25
Plating PES:
1902 with / 30
m"
Au/Ni on BeCu
0UA = Molded Pattern, Standard Handle
9UA = All holes open, Standard Handle
0RA = Molded Pattern, Flush Cam Handle
9RA = All holes open, Flush Cam Handle
Note: Additional ten hole plugs can be ordered separately part #200-4660-14-1900 (see page 33).
TS-0358-14
Sheet 2 of 4
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
Test & Burn-In Grid ZIP Sockets
Pin Grid Arrays
Grid
Matrix
10 x 10
Maximum
Contact
Quantity
100
Dimensions
A
B
C
D
1.50
[ 38.1 ]
1.60
[ 40.6 ]
1.80
[ 45.7 ]
2.00
[ 50.8 ]
2.20
[ 55.9 ]
2.40
[ 61.0 ]
2.60
[ 66.0 ]
3.50
[ 88.9 ]
E
.90
[ 22.9 ]
1.00
[ 25.4 ]
1.00
[ 25.4 ]
1.20
[ 30.5 ]
1.20
[ 30.5 ]
1.40
[ 35.6 ]
1.40
[ 35.6 ]
2.00
[ 50.8 ]
F
.80
[ 20.3 ]
.80
[ 20.3 ]
.80
[ 20.3 ]
1.30
[ 33.0 ]
1.30
[ 33.0 ]
1.70
[ 43.2 ]
1.70
[ 43.2 ]
2.58
[ 65.5 ]
Dimension G
Cam Handle
Standard **Flush
.80
[ 20.3 ]
.80
[ 20.3 ]
.80
[ 20.3 ]
1.40
[ 35.6 ]
1.40
[ 35.6 ]
1.80
[ 45.7 ]
1.80
[ 45.7 ]
2.78
[ 70.6 ]
1.00
[ 25.4 ]
1.00
[ 25.4 ]
1.00
[ 25.4 ]
1.50
[ 38.1 ]
1.50
[ 38.1 ]
1.90
[ 48.2 ]
1.90
[ 48.2 ]
2.78
[ 70.6 ]
1.70
.90
1.15
[ 43.2 ] [ 22.9 ] [ 29.2 ]
1.80
1.00
1.25
11 x 11
121
[ 45.7 ] [ 25.4 ] [ 31.8 ]
2.00
1.20
1.45
13 x 13
169
[ 50.8 ] [ 31.8 ] [ 36.8 ]
2.20
1.40
1.65
15 x 15
225
[ 55.9 ] [ 35.6 ] [ 41.9 ]
2.40
1.60
1.85
17 x 17
289
[ 61.0 ] [ 40.6 ] [ 47.0 ]
2.60
1.80
2.05
19 x 19
361
[ 66.0 ] [ 45.7 ] [ 52.1 ]
2.80
2.00
2.25
21 x 21
441
[ 27.1 ] [ 50.8 ] [ 57.2 ]
3.70
2.40
2.65
25 x 25
625
[ 94.0 ] [ 61.0 ] [ 67.3 ]
**For -0RA and -9RA flush cam handle option only
Flush
Handle
.12
[ 3.0 ]
G
4X #0-80 X 5/16 Long
Phillips Pan-Hd
2
#0-80 Phillips Pan-Hd
.40
[ 10.0 ]
.26
[ 6.5 ]
Tolerance
Dimension
Tolerance
inch
(mm)
.000
(.00)
.00
(.0)
Flush Cam Handle Option
±
.010
±
.005
(±
.25)
(±
.13)
TS-0358-14
Sheet 3 of 4
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
Test & Burn-In Grid ZIP Sockets
Pin Grid Arrays
Top
Tolerance
Dimension
Tolerance
inch
(mm)
.000
(.00)
.00
(.0)
±
.010
±
.005
(±
.25)
(±
.13)

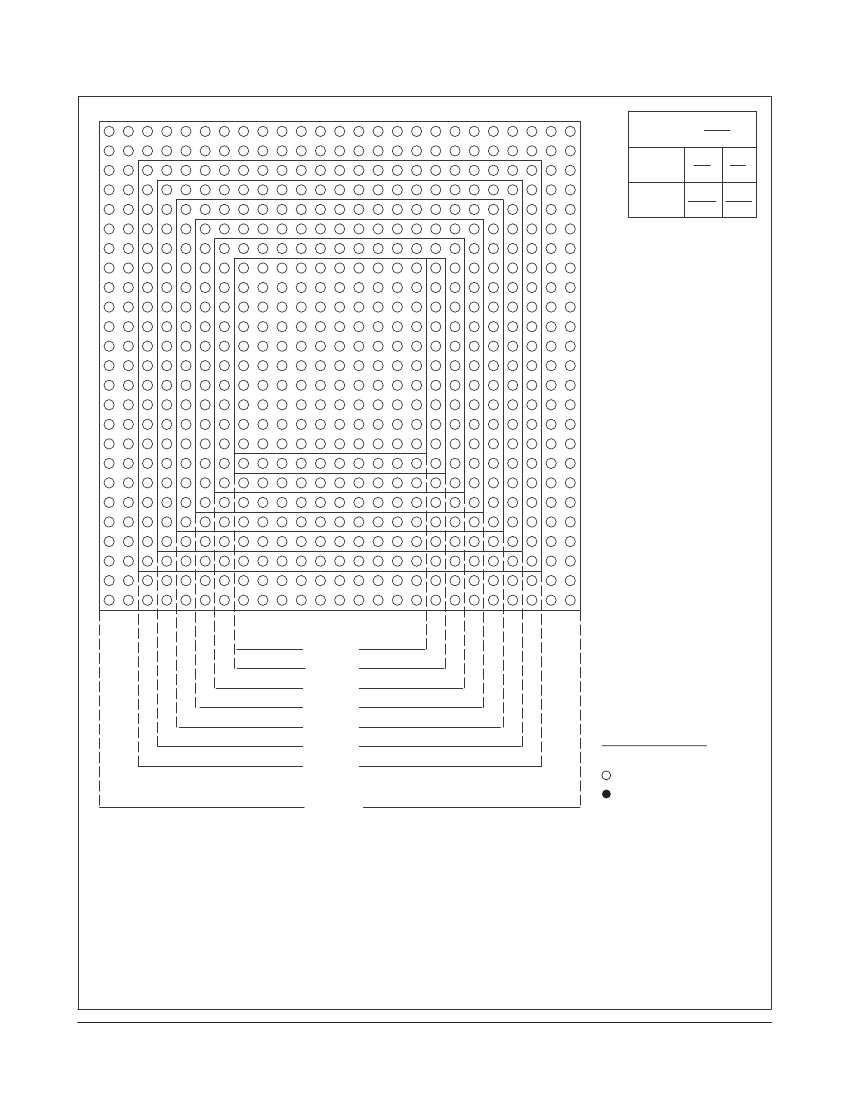

Handle Side
10 x 10
11 x11
13 x 13
15 x 15
17 x 17
19 x19
21 x 21
25 x 25
Front
Mark Indications:
¶
No holes, no contacts
Holes only, no contacts
Holes with contacts
Notes:
1. This is only a work sheet. Do not proceed with any layout until a part number is assigned by
Textool. The pattern is subject to repositioning.
2. Lead diameter = .022 [ 0.56 ] max, .014 [ 0.36 ] min. The standard socket has been designed
to accept these lead diameters only. For all others please consult the factory.
3. Use this sheet to indicate which positions you intend to use.
4. Remember: for best results, keep your patterns as symmetrical with the centerline as possible.
5. The contact point for all sizes is .085 [ 2.16 ] below the top surface and we recommend a
device lead length of .100 [ 2.54 ] below the solder standoffs.
3M Electronic Handling and Protection Division
6801 River Place Blvd.
Austin, TX 78726-9000
TS-0358-14
Sheet 4 of 4
For technical, sales or ordering information call
800-328-0411
or visit our website:
http://www.3M.com/ehpd
