45280-2403: DescriptionHEADER 24WAY; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

45280-2403 Overview

HEADER 24WAY

45280-2403 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Other features	POLARIZED
Board mount options	PEG
body width	0.469 inch
subject depth	0.457 inch
body length	1.693 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,TUV,UL
reliability	COMMERCIAL
Shell material	POLYMER
Terminal length	0.189 inch
Terminal pitch	2.9972 mm
Termination type	PRESS FIT
Total number of contacts	24
UL Flammability Code	94V-0
Evacuation force-minimum value	3.614 N
Base Number Matches	1

Preview

Download Datasheet

View All

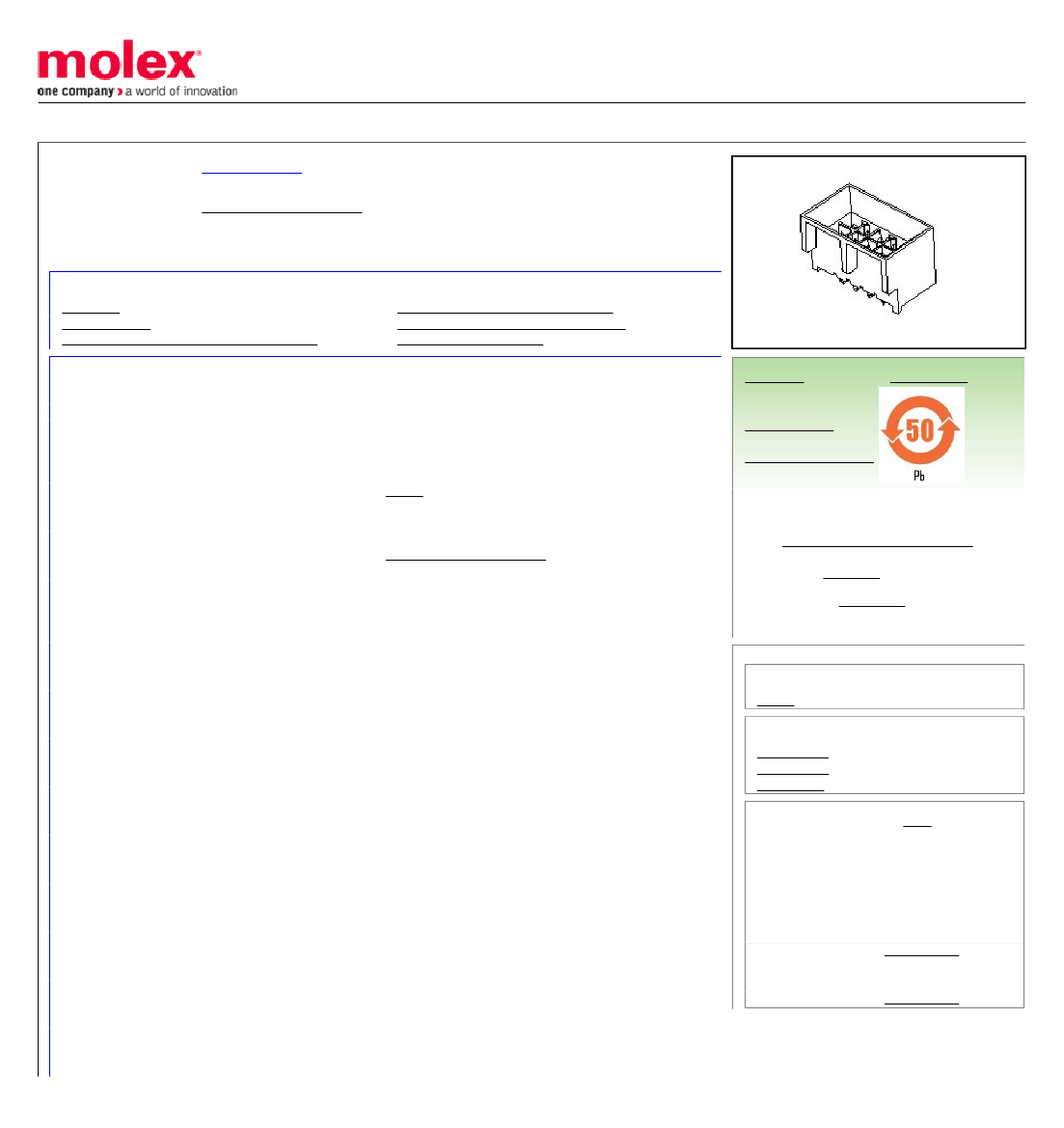

This document was generated on 06/28/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

45280-2403

Active

Micro-Fit 3.0™ Connectors

3.00mm Pitch Micro-Fit 3.0 BMI CPI™ Compliant Pin Header, Blind Mate Interface,

Dual Row, Vertical, 24 Circuits, PA Polyamide Nylon 4/6, UL 94V-0, 0.76µm Gold (Au)

Selective Contact Plating, Tin/Lead (Sn/Pb) Tail Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-44300-001 (PDF)

Test Summary TS-45280-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series

image - Reference only

EU RoHS

RoHS Compliant by

Exemption

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

General

Product Family

Series

Application

Application Tooling Part Link

Overview

Product Literature Order No

Product Name

PCB Headers

45280

Board-to-Board, Power, Wire-to-Board

622008400

622030450

Micro-Fit 3.0™ Connectors

987650-5984

Micro-Fit 3.0 BMI CPI™

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

Yes

None

High Performance Alloy (HPA)

Gold

High Temperature Thermoplastic

Vertical

4.80mm

Yes

Tray

3.00mm

0.762µm

2.540µm

Yes

Fully

-40°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

45280Series

Mates With

44133-2400 Panel Mount Receptacle,

44769-2403 Vertical Receptacle Header,

447642403 Right Angle Receptacle Header

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Compliant Pin

0622008400

Insertion Flat Rock

Tool

Removal Tool

0622030450

Recommended Resources
