2/6/2131: DescriptionCRIMP TERMINAL 30-24AWG; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

2/6/2131 Overview

CRIMP TERMINAL 30-24AWG

Preview

Download Datasheet

View All

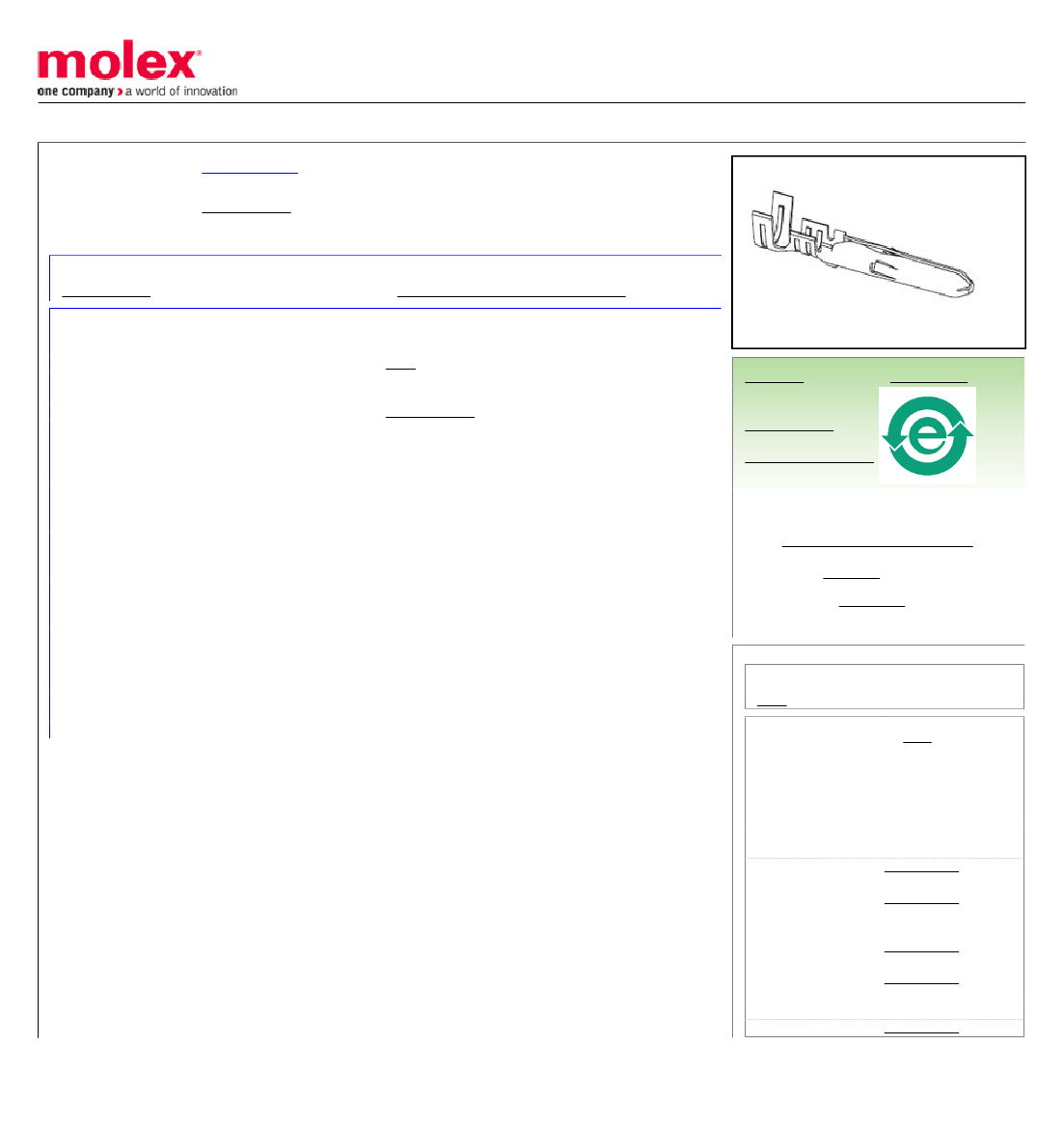

This document was generated on 04/30/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

02-06-2131

Active

Standard .062"

1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1854, Male,

with Tin (Sn) Plated Brass Contact, 24-30 AWG, Reel

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Terminals

1854

Power

Yes

Standard .062"

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Product Name

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Male

Brass

Tin

Reel

0.508µm

Crimp or Compression

1.02-2.29mm

24, 26, 28, 30

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Old Part Number

1854-(P901)

Reference - Drawing Numbers

Sales Drawing

SD-1854-*

Search Parts in this Series

1854Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Mini-Mac™

0638914100

Applicator

Hand Crimper -

0638111000

DISTRIBUTION

ONLY

Manual Extraction

0011030002

Tool

Terminator Die

0011402006

Japan

Description

Product #

Hand Insertion Tool 0011020001
