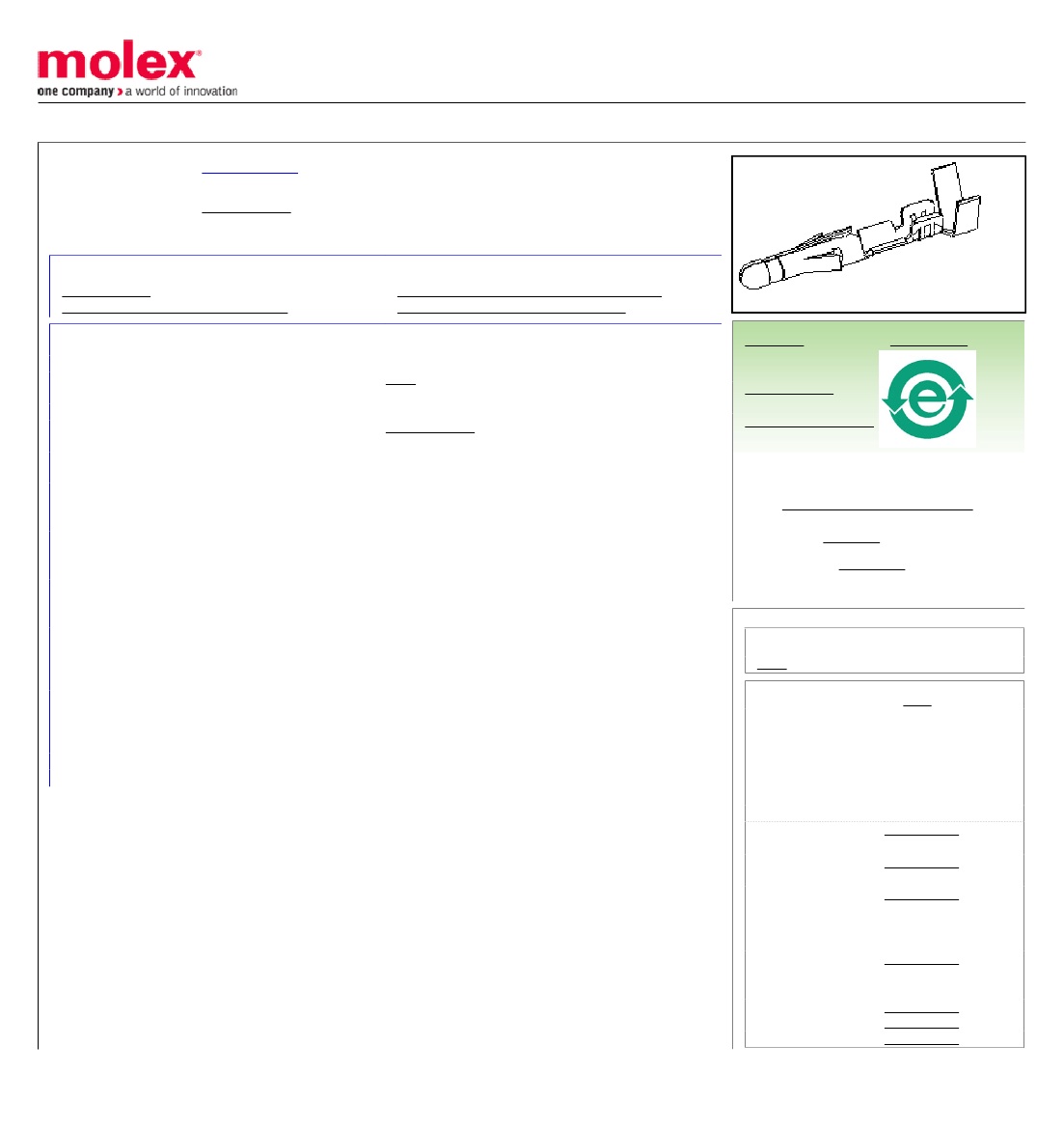

This document was generated on 05/02/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
02-09-6100
Active
Standard .093"
2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male,
with Gold (Au) Plated Brass Contact, 14-20 AWG, Reel
Documents:
Drawing (PDF)
Product Specification PS-02-09 (PDF)
Packaging Specification PK-1190-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
1190
Power
Yes
Standard .093"
Standard .093"
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Male
Brass
Gold
Gold
Reel
0.381µm
0.254µm
Crimp or Compression
1.65-4.06mm
14, 16, 18, 20
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
1190Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Mini-Mac™
0638927100
Applicator
Mini-Mac™
0638927300
Applicator
Extractor Tool
0638240200
for .093 and
HCS-125 Product
Series
Hand Crimper -
0638111000
DISTRIBUTION
ONLY
Insertion Tool
0011020003
Extraction Tool
0011030006
Terminator Die
0011402001
Material Info
Old Part Number
1190550
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-1190-001
PS-02-09
SD-1190-*
